    Contitech FS 330-11 474 Pneumatic Bellow Air Suspension For Material Transfer

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B5330
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Contitech FS 330-11 474 Pneumatic Bellow Air Suspension For Material Transfer

    Contitech FS 330-11 474 Pneumatic Bellow Air Suspension For Material Transfer


    Design Standards


    • Structure: single convoluted
    • Rubber Bellow Max. Diameter: 12.80 in.
    • Minimum Height: 2.00 in.
    • Maximum Height: 6.80 in.
    • Air Hole: 1/4-16NPTF
    • Screw Type: 3/8-16UNC
    • Top/Bottom Cover Plate Width: 9.00 in.
    • Center-to-Center Distance: 6.20 in.

    Part Interchanges


    Firestone Style: 19
    Firestone No.: W01-358-7008
    FleetPride: AS7008
    Goodyear: 1B12-313
    Goodyear Flex No.: 578913301
    Taurus: 6374
    Triangle: AS-4474
    TRP: AS70080
    Automann: SP1B22A-7008
    ASF Holland: 90557226
    Watson & Chalin: AS-0149-1G
    Loadguard: SC2010

    Contitech Type Air Spring OEM NO.


    Single ConvolutedDouble ConvolutedTriple Convoluted
    FS 40-6 CIFD 40-10 CIFT 330-29 CI
    FS 50-5 CIFD 70-13 CIFT 430-32 CI
    FS 70-7 CIFD 110-15 CIFT 530-32 CI
    FS 100-10 CIFD 120-17 CIFT 530-35 CI
    FS 120-10 CIFD 120-20 CIFT 960-34 CI
    FS 120-12 CIFD 200-19 CIFT 1330-35 CI
    FS 200-10 CIFD 200-22 CI
    FS 310-12 CIFD 200-25 CI
    FS 330-11 CIFD 330-22 CI
    FS 330-14 CIFD 330-30 CI
    FS 530-11 CIFD 530-22 CI
    FS 530-14 CIFD 530-35 CI
    FS 960-12 CIFD 960-22 CI
    FS 1330-11 CIFD 1330-25 CI

    Air Spring Storage Precautions


    1. Spare parts of air springs should be stored in dark places without ventilation as far as possible, avoiding direct sunlight.
    2. Avoid oil and chemicals on the air springs, otherwise, after long-term storage, the performance of the rubber will be degraded and the service life will be reduced.
    3. Air springs are best stored in a free state without any external force.
    4. Do not store in an environment with a temperature exceeding 50 degrees Celsius.

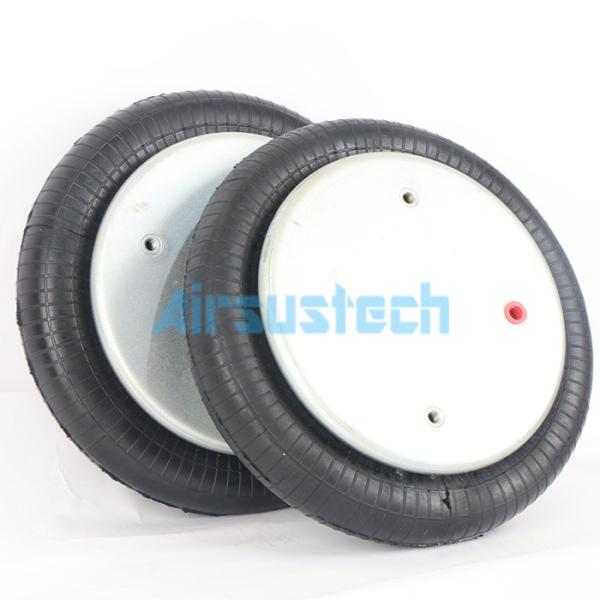

    The Related Pictures of 1B5330



    Quality Contitech FS 330-11 474 Pneumatic Bellow Air Suspension For Material Transfer for sale
