    Firestone Air Rubber Bellows Only W01-358-5126 Air Suspension Effective Shock

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B12-304
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone Air Rubber Bellows Only W01-358-5126 Air Suspension Effective Shock

    Firestone Air Rubber Bellows Only W01-358-5126 Air Suspension Effective Shock



    Product Standards

    • Rubber Bellows Max. OD.: 660 MM
    • Maximum Height: 305 MM
    • Minimum Height: 89 MM
    • Full Stroke: 216 MM
    • Convoluted: Double Convoluted
    • Bellows Type: Rubber Bellows Only

    Product Technical Data Sheet


    Assembly Height (mm)Volume @ 7 BAR (cu cm)EFF Area @ 7BAR (cm sq)kN Force
    @ 3 BAR@ 4 BAR@5 BAR@ 6BAR@ 7 BAR
    26068626205759.5680.57101.22123.62143.98
    24064100223765.6088.20110.53134.38156.56
    22059270238470.2794.34117.99143.23166.86
    20054018250374.0399.30124.00150.38175.20
    18048552259977.11103.27128.85156.12181.27
    16042927267879.74106.59132.92160.96187.47
    140371597283582.19109.71136.77165.54192.75
    12031597283584.73113.02140.90170.45198.43


    Refer Number


    Style 200DescriptionAssembly Order No.
    Ribbed neck aluminum bead rings (equal spacing) 45mm bolts, nuts, washers

    W01-M58-6979, W01 M58 6979, W01M586979

    WO1-M58-6979, WO1 M58 6979, WO1M586979

    Rubber bellows only

    W01-358-5126, W01 358 5126, W013585126

    WO1-358-5126, WO1 358 5126, WO13585126


    Air Bellows Characteristics


    1. Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators.
    2. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model.
    3. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional
    4. pneumatic cylinders.
    5. All models are single acting only. The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself.
    6. The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous
    7. conditions.
    8. Air bellows are suitable for vibration applications i.e. device feeders at high frequency

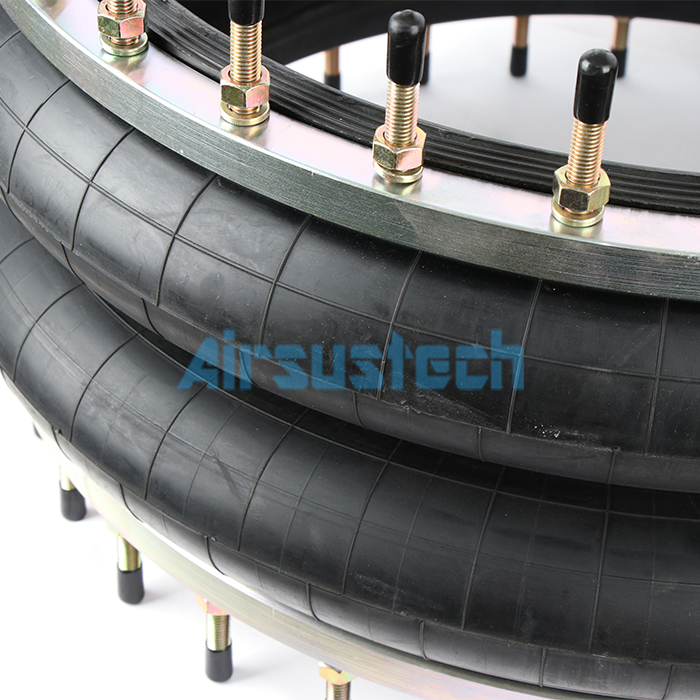

    The Detailed Pictures
