Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In. from wholesalers

    Buy cheap Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In. from wholesalers
    • Buy cheap Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In. from wholesalers
    • Buy cheap Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In. from wholesalers
    • Buy cheap Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In. from wholesalers
    • Buy cheap Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In. from wholesalers

    Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B12-304
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.

    Bellow NO. 578-93-3-100 Goodyear 3B12-304 Air Suspension Full Stroke 13.2 In.



    Product Details

    • Diameter of the Top Cover Plate: 9 in.
    • Center-to-Center Distance of Screws on the Top Cover Plate: 9 in.
    • Diameter of the Bottom Cover Plate: 9 in.
    • Center-to-Center Distance of Screws on the Bottom Cover Plate: 9 in.
    • Screw (Nut) Thread Count for the Top Cover Plate: 3/8-16UNC
    • Screw (Nut) Thread Count for the Bottom Cover Plate: 3/8-16UNC
    • Air Inlet: 1/4NPTF
    • Maximum Diameter of the Rubber Bellow: #
    • Minimum Height: 4.8 in.
    • Maximum Height: 18 in.


    Cross References


    Air Spring Supplier: Firestone
    Competitor/Supplier Number: W01-358-8006, W01 358 8006, W013588006

    Air Spring Supplier: Goodyear
    Competitor/Supplier Number: 3B12-304, 3B 12-304, 3B12304, 3B12 304, 578933100

    Air Spring Supplier: Triangle
    Competitor/Supplier Number: 6334, 4430

    Air Spring Supplier: Contitech
    Competitor/Supplier Number: FT 330-29 430, FT 33029 430, FT330-29 430, FT33029 430

    Air Spring Supplier: Leland
    Competitor/Supplier Number: Sc2132

    Air Spring Supplier: Arvin Meritor
    Competitor/Supplier Number: 200320


    Goodyear Other Type Air Springs


    Single ConvolutedDouble ConvolutedTriple Convoluted
    1B12-3051B12-3132B6-5302B6-5313B12-3043B12-305
    1B14-3501B14-3512B6-5322B6-5353B14-3513B14-353
    1B14-3521B14-3622B6-5362B7-5403B14-3543B15-375
    1B14-3641B15-3752B7-5412B7-5423B15-3763B15-377
    1B15-3761B15-3772B7-5452B7-5463B15-378
    1B15-3782B8-5502B8-552
    2B8-5532B8-554
    2B9-2002B9-201
    2B9-2042B9-205
    2B9-2162B9-250
    2B9-2512B9-253
    2B12-3092B12-218
    2B12-4252B12-429
    2B12-4372B12-416
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539
    Product Applications
    1. Centrifugal separators
    2. Large drying machines
    3. Vibratory conveyors
    4. Electronic equipment
    5. Compressors
    6. Conveyor loading points
    7. Textile looms
    8. Rotary shaft actuators
    9. Conveyor or transfer systems
    10. Vertical lift force for platforms and rotating tables
    11. Injection or ejection of parts in manufacturing equipment
    12. Scissor lifts
    13. Clutch and brake systems
    14. Amusement park rides

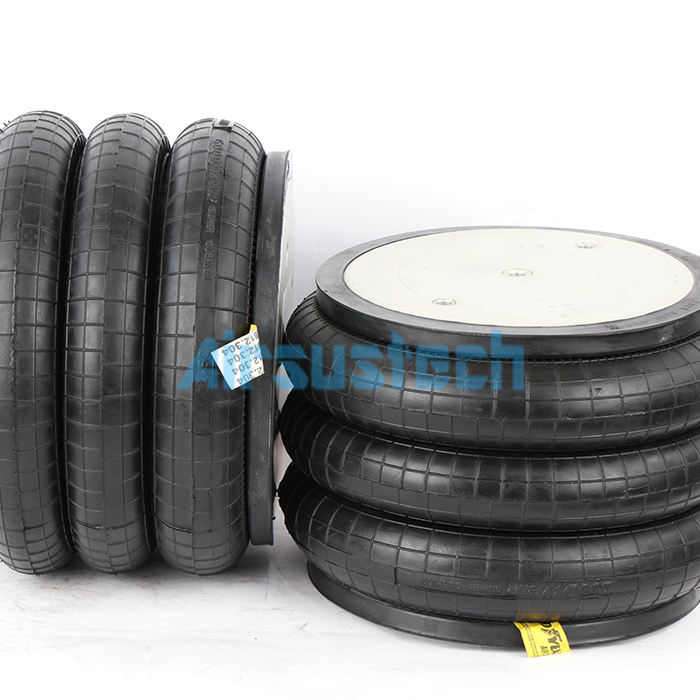

    Product Images
