Brand Name : | AIRSUSTECH |
Model Number : | 2B7070 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Design Specifications
Diameter of the Top Cover Plate | 145 mm |
Center-to-Center Distance of Screws on the Top Cover Plate | 44.5 mm |
Diameter of the Bottom Cover Plate | 145 mm |
Center-to-Center Distance of Screws on the Bottom Cover Plate | 44.5 mm |
Screw (Nut) Thread Count for the Top Cover Plate | 1×M8×1.25 |
Screw (Nut) Thread Count for the Bottom Cover Plate | 2×M8×1.25 |
Air Inlet | G1/4 |
Rubber Bellow Natural Diameter | 230 mm |
Minimum Height | 80 mm |
Maximum Height | 180 mm |
Other OEM Number
Festo Part Number 36 491, 36494 |
Festo Part Number EB-165-125, EB165125, EB 165 125 |
We Can Offer Other OEM Numbers
2B6-530 | 2B6-531 | FD 40-10 CI | SP2907 |
2B6-532 | 2B6-535 | FD 70-13 CI | SP2441 |
2B6-536 | 2B7-540 | FD 110-15 CI | SP2917 |
2B7-541 | 2B7-542 | FD 120-17 CI | SP1482 |
2B7-545 | 2B7-546 | FD 120-20 CI | SP1490 |
2B8-550 | 2B8-552 | FD 200-19 CI | SP1538 |
2B8-553 | 2B8-554 | FD 200-22 CI | SP1541 |
2B9-200 | 2B9-201 | FD 200-25 CI | SP2782NB |
2B9-204 | 2B9-205 | FD 330-22 CI | SP1556 |
2B9-216 | 2B9-250 | FD 330-30 CI | SP1557 |
2B9-251 | 2B9-253 | FD 530-22 CI | SP1408 |
2B12-309 | 2B12-218 | FD 530-35 CI | SP2342 |
2B12-425 | 2B12-429 | FD 960-22 CI | |
2B12-437 | 2B12-416 | FD 1330-25 CI | |
2B14-352 | 2B14-353 | ||
2B14-354 | 2B14-355 | ||
2B14-362 | 2B14-363 | ||
2B14-452 | 2B15-375 | ||
2B15-376 | 2B15-377 | ||
2B15-378 | 2B19-8433 | ||
2B22-8539 |
Air Spring Installation
1.Before you start installing air springs, make sure you have all
the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are
performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a
qualified suspension specialist, the suspension manufacturer or the
air spring manufacturer; This can save you a lot of time and
aggravation later in the job.

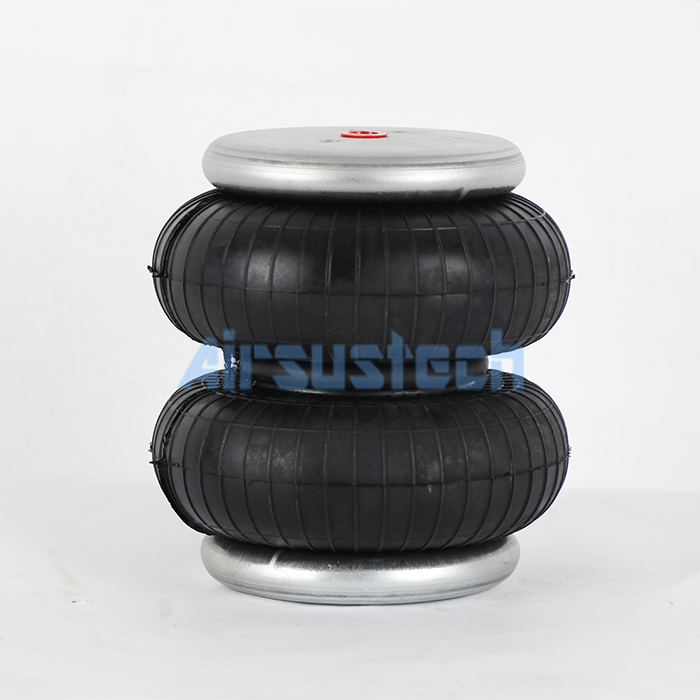

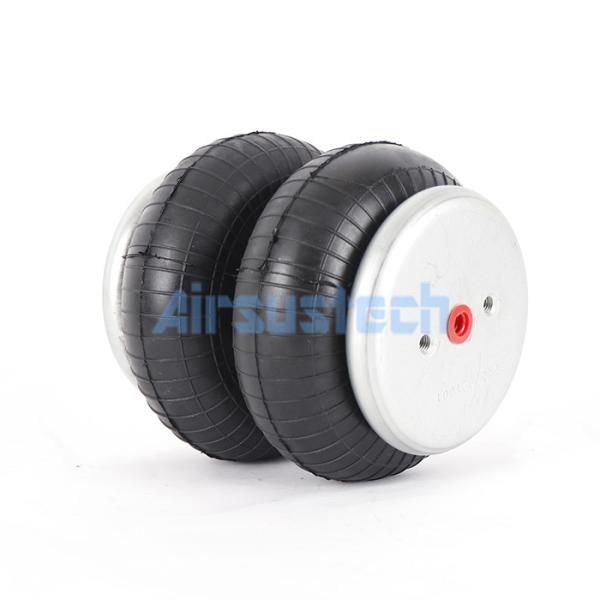

Detailed Pictures
![]() |
