Brand Name : | AIRSUSTECH |
Model Number : | 2B4.5×2P |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Product Standard
Cover Plate Top Cover Plate Diameter: 110 mm Screw Center Distance of Top Cover Plate: 93 mm Bottom Cover Plate Diameter: 110 mm Screw Center Distance of Bottom Cover Plate: 93 mm |
Nuts/Blind Nuts Top Cover Plate Screw (Nut) Tooth: 3×M6 Bottom Cover Plate Screw (Nut) Tooth: 3×M6 |
Gas Gole/Gas Fitting/Air Hole/Air Inlet Air Inlet: G 3/8 |
Rubber Bellow Rubber Bellow Max. Dia: 125 mm Minimum Height: 65 mm Maximum Height: 150 mm Bellows Structure: Double Convoluted |
Manufacturer Part Number
Contitech Air Suspension FD 44-10 DI CR, FD 44 10 DI CR, FD 4410 DI CR FD44-10 DI CR, FD4410 DI CR, FD44 10 DI CR |
Firestone Air Suspension W01-R58-4051, W01 R58 4051, W01R584051 WO1-R58-4051, WO1 R58 4051, WO1R584051 |
Dunlop Air Suspension SP2441, SP 2441 |
Dunlop Air Suspension 4 1/2''×2, 4 1/2'×2, 4 1/2×2 |
DUNLOP UK (PNEURIDE) Air Suspension PNP 305590107, PNP305590107 |
YS-AIR Air Suspension YS-115-2V, YS 115 2V, YS1152V |
NORGREN Air Suspension PM/31042, PM31042, PM 31042 |
Double Convoluted Type Air Shock Abosorber OEM NO.
2B6-530 | 2B6-531 | FD 40-10 CI | SP2907 |
2B6-532 | 2B6-535 | FD 70-13 CI | SP2441 |
2B6-536 | 2B7-540 | FD 110-15 CI | SP2917 |
2B7-541 | 2B7-542 | FD 120-17 CI | SP1482 |
2B7-545 | 2B7-546 | FD 120-20 CI | SP1490 |
2B8-550 | 2B8-552 | FD 200-19 CI | SP1538 |
2B8-553 | 2B8-554 | FD 200-22 CI | SP1541 |
2B9-200 | 2B9-201 | FD 200-25 CI | SP2782NB |
2B9-204 | 2B9-205 | FD 330-22 CI | SP1556 |
2B9-216 | 2B9-250 | FD 330-30 CI | SP1557 |
2B9-251 | 2B9-253 | FD 530-22 CI | SP1408 |
2B12-309 | 2B12-218 | FD 530-35 CI | SP2342 |
2B12-425 | 2B12-429 | FD 960-22 CI | |
2B12-437 | 2B12-416 | FD 1330-25 CI | |
2B14-352 | 2B14-353 | ||
2B14-354 | 2B14-355 | ||
2B14-362 | 2B14-363 | ||
2B14-452 | 2B15-375 | ||
2B15-376 | 2B15-377 | ||
2B15-378 | 2B19-8433 | ||
2B22-8539 |
Supports And Services
From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.
Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.

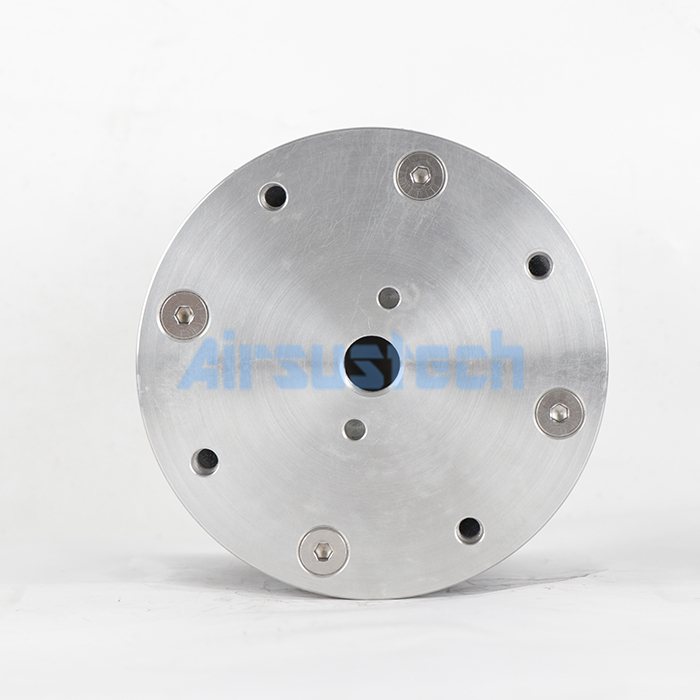

Product Pictures
![]() |
