Brand Name : | AIRSUSTECH |
Model Number : | 2B6×2P |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
2B6×2P Specification
Cover Plate | |
Top Cover Plate Diameter | 152.5 mm |
Screw Center Distance of Top Cover Plate | 127 mm |
Bottom Cover Plate Diameter | 152.5 mm |
Screw Center Distance of Bottom Cover Plate | 127 mm |
Nut/Blind Nuts | |
Top Cover Plate Screw(Nut) Tooth | 4×M8 |
Bottom Cover Plate Screw(Nut) Tooth | 4×M8 |
Gas Hole/Air Inlet/Air Fitting | |
Air Hole | G 1/2 |
Rubber Bellow | |
Rubber Bellow Max. Diameter | 178 mm |
Minimum Height | 80 mm |
Maximum Height | 195 mm |
Space Required | 195 mm |
2B6×2P OEM Number
Parker
9109001A
Dunlop Springride
SP2917, SP 2917
Dunlop Pneuride
6" x 2 (Al), 6 x 2 (Al), 6 x 2 (Al)
Norgren
PM31062, PM 31062
Firestone
W01-R58-4070, W01R584070, W01 R58 4070
WO1-R58-4070, WO1R584070, WO1 R58 4070
Contitech
FD76-14 DI, FD 76-14 DI, FD7614 DI
FD 7614 DI, FD 76 14 DI, FD76 14 DI
Double Convoluted Type Air Actuator OEM Number
2B6-530 | 2B6-531 | FD 40-10 CI | SP2907 |
2B6-532 | 2B6-535 | FD 70-13 CI | SP2441 |
2B6-536 | 2B7-540 | FD 110-15 CI | SP2917 |
2B7-541 | 2B7-542 | FD 120-17 CI | SP1482 |
2B7-545 | 2B7-546 | FD 120-20 CI | SP1490 |
2B8-550 | 2B8-552 | FD 200-19 CI | SP1538 |
2B8-553 | 2B8-554 | FD 200-22 CI | SP1541 |
2B9-200 | 2B9-201 | FD 200-25 CI | SP2782NB |
2B9-204 | 2B9-205 | FD 330-22 CI | SP1556 |
2B9-216 | 2B9-250 | FD 330-30 CI | SP1557 |
2B9-251 | 2B9-253 | FD 530-22 CI | SP1408 |
2B12-309 | 2B12-218 | FD 530-35 CI | SP2342 |
2B12-425 | 2B12-429 | FD 960-22 CI | |
2B12-437 | 2B12-416 | FD 1330-25 CI | |
2B14-352 | 2B14-353 | ||
2B14-354 | 2B14-355 | ||
2B14-362 | 2B14-363 | ||
2B14-452 | 2B15-375 | ||
2B15-376 | 2B15-377 | ||
2B15-378 | 2B19-8433 | ||
2B22-8539 |
Supports And Services
From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.
Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.

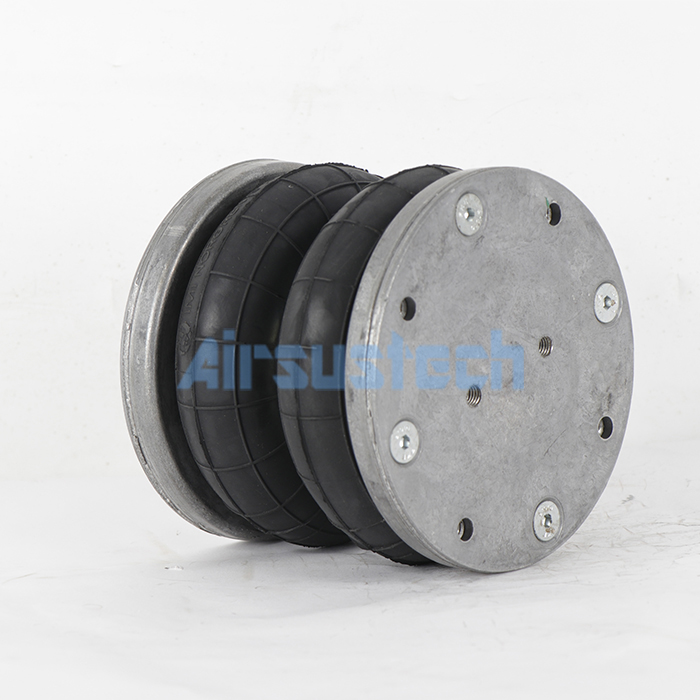

2B6×2P Detailed Pictures
![]() |
