    Goodyear Air Spring 1B5-550 Stainless Cover Plate Air Pneumatic Bellow 1/4 NPTF

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B5510S
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Goodyear Air Spring 1B5-550 Stainless Cover Plate Air Pneumatic Bellow 1/4 NPTF

    Goodyear Air Spring 1B5-550 Stainless Cover Plate Air Pneumatic Bellow 1/4 NPTF


    1B5510S Specifications


    Minimum Height: 1.8 in.

    Maximum Height: 4.8 in.
    Air Inlet: 1/4 NPTF
    Center to Center Distance: 1.75 in.
    Top/Bottom Cover Plate Dia.: 3.75 in.
    Bellow Number: 579-91-3-501
    Structure: single Convoluted
    Total Stroke: 3 in.

    Cross Reference NO.


    Goodyear: 1B5-550, 1B 5-550, 1B5 550, 1B5500
    Goodyear Bellow NO.: 579-91-3-501, 579913501
    Enidine Inc.: YI-1B5-510, YI 1B5 510, YI1B5510

    We Also Provide Goodyear Convoluted Air Springs


    Single ConvolutedDouble ConvolutedTriple Convoluted
    1B12-3051B12-3132B6-5302B6-5313B12-3043B12-305
    1B14-3501B14-3512B6-5322B6-5353B14-3513B14-353
    1B14-3521B14-3622B6-5362B7-5403B14-3543B15-375
    1B14-3641B15-3752B7-5412B7-5423B15-3763B15-377
    1B15-3761B15-3772B7-5452B7-5463B15-378
    1B15-3782B8-5502B8-552
    2B8-5532B8-554
    2B9-2002B9-201
    2B9-2042B9-205
    2B9-2162B9-250
    2B9-2512B9-253
    2B12-3092B12-218
    2B12-4252B12-429
    2B12-4372B12-416
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539

    Product Applications


    • Pulp and paper industry
    • Lumber mills
    • Lift tables
    • Tooling and machining system
    • Energy production
    • Tooling robotics and automation
    • Component assembly
    • Automotive assembly
    • Medical equipment
    • Conveyor systems
    • Packing

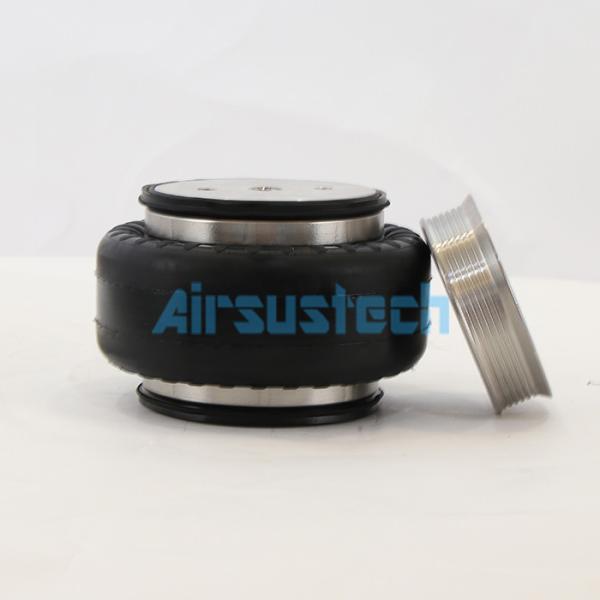

    Pictures of Details


    Quality Goodyear Air Spring 1B5-550 Stainless Cover Plate Air Pneumatic Bellow 1/4 NPTF for sale
