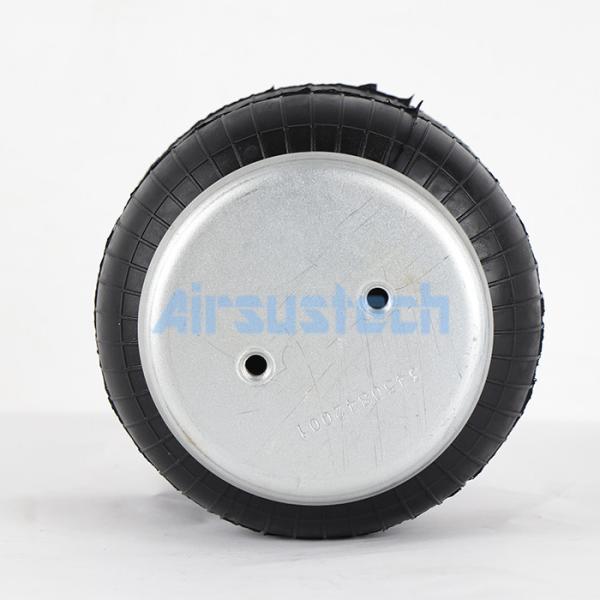

    Festo 36494 Double Convoluted Air Suspension G1/4 Air Hole Air Spring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7070
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Festo 36494 Double Convoluted Air Suspension G1/4 Air Hole Air Spring

    Festo 36494 Double Convoluted Air Suspension G1/4 Air Hole Air Spring High Quality


    Product Introduction


    GUOMAT air springs come in single, double, or triple bellow designs and serve various roles in different suspensions and applications. You'll find Continental air springs in a range of trucks, trailers, and on industrial sites. These air springs stand out for their ability to execute linear or angular movements with a much lower profile than traditional air cylinders. They are incredibly adaptable and serve a variety of functions in machinery used for pressing, tensioning, rolling, conveying, lifting, and packaging. Additionally, as vibration dampers, they effectively minimize the detrimental impact of vibration.


    Product Details


    Bottom Cover Plate
    Bottom Plate AlignmentParallel
    Bottom Plate Center To Center Diameter44.5 mm
    Bottom Plate Diameter105 mm
    Bottom Plate Hole Quantity2
    Bottom Plate TypeSteel
    Top Cover Plate
    Top Plate AlignmentParallel
    Top Plate Center To Center Diameter44.5 mm
    Top Plate Diameter105 mm
    Top Plate Hole Quantity2
    Top Plate TypeSteel
    Rubber Bellow
    Bellow Maximum Diameter162 mm
    Expanded Height#
    Compressed Height#
    Spring TypeDouble Convoluted
    Nut/Blind Nuts Type2×M8×1.25
    Air Hole/Air Inlet/Gas Hole/Gas Fitting
    Air InletG 1/4

    Other OEM Number


    Festo 36 491, 36494
    Festo EB-165-125, EB 165 125, EB165125


    AIRSUSTECH Has Other Double Convoluted Type Air Springs


    Double Convoluted Air Spring
    2B6-5302B6-531
    2B6-5322B6-535
    2B6-5362B7-540
    2B7-5412B7-542
    2B7-5452B7-546
    2B8-5502B8-552
    2B8-5532B8-554
    2B9-2002B9-201
    2B9-2042B9-205
    2B9-2162B9-250
    2B9-2512B9-253
    2B12-3092B12-218
    2B12-4252B12-429
    2B12-4372B12-416
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539

    FAQ


    Q: How to guarantee your after sales service?
    A: (1) Strict inspection during production.
    (2) Recheck the products before shipment to ensure our packaging in good condition.
    (3) Track and receive feedback from our customers.


    Q: What will you do for customer's complaint?
    A: We will respond quickly to our customers within 24 hours.


    Q: What is the model number of the Suspension Air Springs?
    A: The model number of the Suspension Air Springs is 2B7070.
