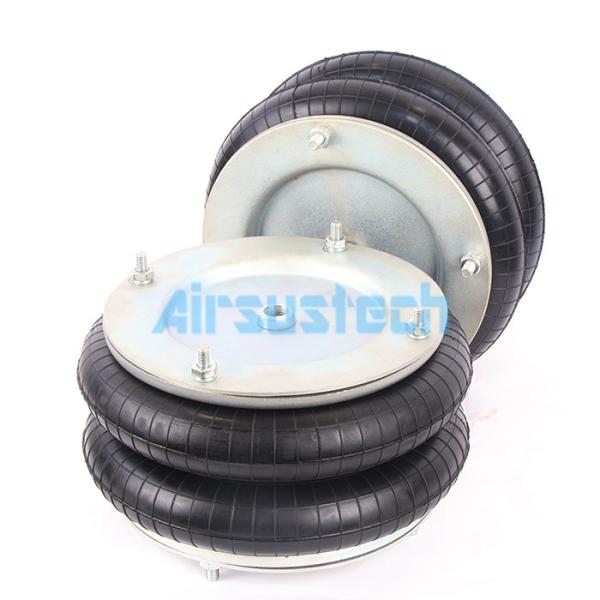

    High Performance Dunlop Air Spring SP1541 Flange Connection Air Suspension

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B12×2T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    High Performance Dunlop Air Spring SP1541 Flange Connection Air Suspension

    High Performance Dunlop Air Spring SP1541 Flange Connection Air Suspension


    2B12×2T Air Spring Specification


    Bottom Plate Alignment: Parallel
    Bottom Plate Center To Center Diameter: 232 mm
    Bottom Plate Diameter: 260 mm
    Bottom Plate Hole Quantity: 4
    Bottom Plate Type: Steel
    Top Plate Alignment: Parallel
    Top Plate Center To Center Diameter: 232 mm
    Top Plate Diameter: 260 mm
    Top Plate Hole Quantity: 5
    Top Plate Type: Steel
    Bellow Maximum Diameter: 330 mm
    Expanded Height: 240 mm
    Compressed Height: 74mm
    Spring Type: Double Convoluted
    Air Inlet: 1/2 BSP
    Nut/Blind Nuts Type: M10

    Cross Number


    CONTİTECH

    FD 412-18 1/2 M10, FD412-18 1/2 M10, FD41218 1/2 M10

    FD 41218 1/2 M10, FD 412 18 1/2 M10, FD412 18 1/2 M10

    AIRTECHA2 300/K01
    FIRESTONE

    W01-R58-4061, W01 R58 4061, W01R584061

    WO1-R58-4061, WO1 R58 4061, WO1R584061

    STYLE 12x2

    GOODYEAR

    2B12-2452, 2B12 2452, 2B 12-2452, 2B122452, 2B 12 2452

    578-92-3-2452, 5789232452, 578 92 3 2452

    DUNLOP

    SP1541, SP 1541, SP1541 NB, SP 1541 NB

    12''x2, 12'x2, 12x2

    WEWELERUSN 510011KD
    GIGANT881202, 700881202
    GRANNING15813

    Dunlop Series We Can Provide


    Single ConvolutedDouble ConvolutedTriple Convoluted
    SP2906SP2907SP2910
    SP2334SP2441SP2895
    SP2913SP2917SP2923
    SP1536SP1482SP2861
    SP1537SP1490SP2863
    SP2523SP1538SP1539
    SP1540SP1541SP1542
    SP1543SP2782NBSP1558
    SP1556SP2141
    SP1557
    SP1408
    SP2342

    2B12×2T Applications


    • Off-highway vehicles such as construction equipment, agricultural machinery, and mining equipment, where air springs are used for suspension and to improve ride comfort and stability.
    • Press equipment and part extraction, where air springs are used as actuators.
    • Test equipment and motion simulators , where air springs are used as vibration isolators and to reduce shock and noise.
    • Precision equipment and machinery, such as printing presses, where air springs are used for vibration isolation and leveling.
    • Textile machinery, where air springs are used to provide a smooth and stable ride, improve the quality of the finished product, and reduce the wear and tear on machinery.
    • Paper mill machinery, where air springs are used for suspension, levelling and vibration isolation.
    • Cheese and dairy industry machines

    Detailed Pictures
