    Air Spring Actuator Contitech FS 76-7 DI Single Convoluted Air Bellows Max. H. 55MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B6×1P
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Air Spring Actuator Contitech FS 76-7 DI Single Convoluted Air Bellows Max. H. 55MM

    SP2913 Dunlop Springride Single Convoluted Air Spring Suspension M8 Screws


    Product Specifications


    Bottom Plate Alignment: Parallel
    Bottom Plate Center To Center Diameter: 127 mm
    Bottom Plate Diameter: 152.5 mm
    Bottom Plate Hole Quantity: 4
    Bottom Plate Type: Steel
    Top Plate Alignment: Parallel
    Top Plate Center To Center Diameter: 127 mm
    Top Plate Diameter: 152.5 mm
    Top Plate Hole Quantity: 5
    Top Plate Type: Steel
    Bellow Maximum Diameter: 175 mm
    Expanded Height: 110 mm
    Compressed Height: 55 mm
    Spring Type: Single Convoluted
    Air Inlet: G 1/2
    Nut/Blind Nuts Type: 4pcs×M8

    Parts Interchanges


    ContitechFirestoneDunlop PneurideDunlop SpringrideNorgrenParker
    FS 76-7 DIW01-R58-40786''×1SP2913PM/310619109004A
    FS76-7 DIW01 R58 40786'×1SP 2913PM 31061
    FS767 DIW01R5840786×1PM31061
    FS76 7 DIWO1-R58-4078
    FS 767 DIWO1 R58 4078
    FS 76 7 DIWO1R584078

    We Have Other Contitech Model Series


    Single ConvolutedDouble ConvolutedTriple Convoluted
    FS 40-6 CIFD 40-10 CIFT 330-29 CI
    FS 50-5 CIFD 70-13 CIFT 430-32 CI
    FS 70-7 CIFD 110-15 CIFT 530-32 CI
    FS 100-10 CIFD 120-17 CIFT 530-35 CI
    FS 120-10 CIFD 120-20 CIFT 960-34 CI
    FS 120-12 CIFD 200-19 CIFT 1330-35 CI
    FS 200-10 CIFD 200-22 CI
    FS 310-12 CIFD 200-25 CI
    FS 330-11 CIFD 330-22 CI
    FS 330-14 CIFD 330-30 CI
    FS 530-11 CIFD 530-22 CI
    FS 530-14 CIFD 530-35 CI
    FS 960-12 CIFD 960-22 CI
    FS 1330-11 CIFD 1330-25 CI

    Air Spring Should Pay Attention To In The Application


    1. It is forbidden to use the air spring beyond the recommended safe extension height.
    2. In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
    3. Do not use the air spring under the pressure exceeding 0.7Mpa.
    4. Do not use the air spring in a twisted state.


    Welcome to our auto parts distributor. We are committed to providing the most comprehensive, professional automotive parts assortment to make your driving more secure and comfortable. No matter what kind of accessories you need, we provide the best selection and best quality services. Enjoy your shopping!

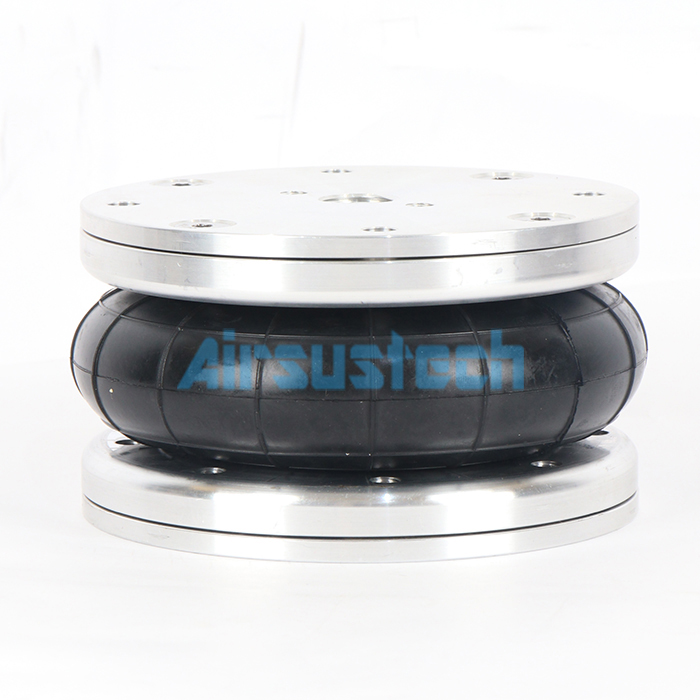

    Real Pictures of 1B6×1P Air Spring


    Quality Air Spring Actuator Contitech FS 76-7 DI Single Convoluted Air Bellows Max. H. 55MM for sale
