Brand Name : | AIRSUSTECH |
Model Number : | 1B4.5×1P |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Product Specifications
Bottom Plate Alignment | Parallel |
Bottom Plate Center To Center Diameter | 93 mm |
Bottom Plate Diameter | 110 mm |
Bottom Plate Hole Quantity | 6 pcs |
Bottom Plate Type | Steel |
Top Plate Alignment | Parallel |
Top Plate Center To Center Diameter | 93 mm |
Top Plate Diameter | 110 mm |
Top Plate Hole Quantity | 7 |
Top Plate Type | Steel |
Bellow Maximum Diameter | 125 mm |
Expanded Height | 125 mm |
Compressed Height | 45 mm |
Spring Type | Single Convoluted |
Nut/Blind Nuts Type | M6 |
Air Inlet | 3/8 BSP |
1B4.5×1P Refer Number
Parker Air Spring 9109400 |
Firestone Air Spring W01-R58-4050, W01 R58 4050, W01R584050 WO1-R58-4050, WO1 R58 4050, WO1R584050 |
Dunlop Pneuride Air Spring 4 1/2" x 1, 4 1/2' x 1, 4 1/2 x 1 |
Dunlop Springride Air Spring SP2334, SP 2334 |
Contitech Air Spring FS 44-5 DI, FS44-5 DI, FS 445 DI, FS 44 5 DI, FS44 5 DI, FS445 DI |
Norgren Air Spring PM/31041, PM31041, PM 31041 |
Norgren Air Rubber Bellow We Can Supply
6''×1 | 6''×2 |
8''×1 | 8''×2 |
10''×1 | 10''×2 |
10''×3 | 12''×1 |
12''×2 | 12''×3 |
14 1/2''×1 | 14 1/2''×2 |
14 1/2''×3 | 16''×2 |
16''×3 | 21''×2 |
26''×2 |
Product Applications
Rubber actuators, compared with traditional products (rigid actuators, spring...) offer numerous advantages such as
AIRSUSTECH rubber pneumatic tire is an indispensable accessory for self-powered type. Its main function is to reduce the working pressure of the pneumatic valve and stabilize it at a value, so that the door can obtain a stable pneumatic valve output power for adjustment and operation.

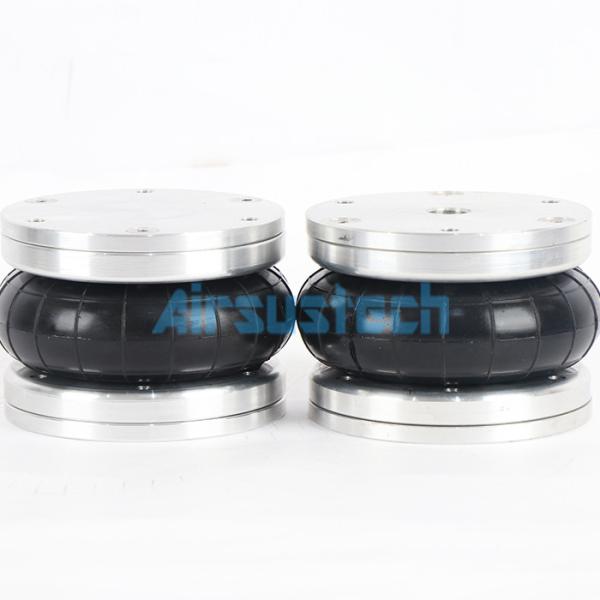

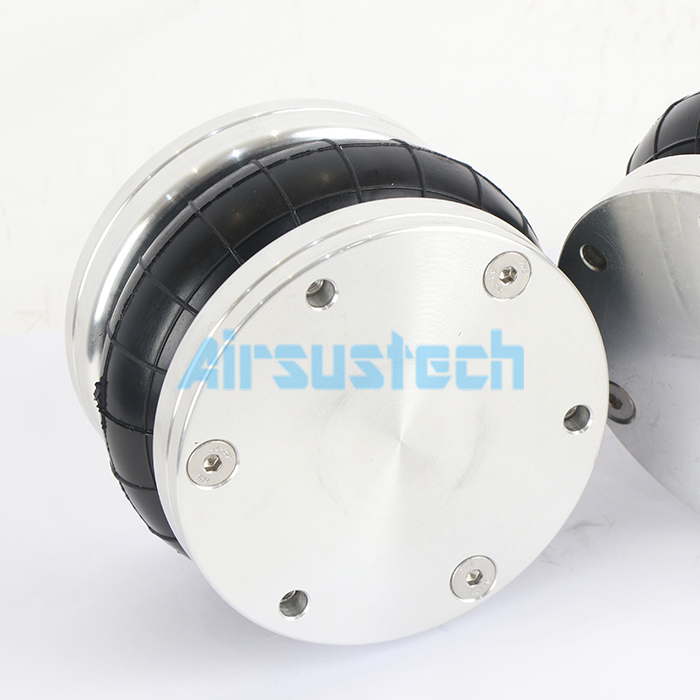

1B4.5×1P Air Spring Detailed Pictures
![]() |
