    Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B8×2T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow

    Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow


    Product Introduction


    AIRSUSTECH air actuators are exceptionally robust, meticulously designed, and economically efficient, making them ideal for diverse applications in motion control and vibration damping. Built with reliable designs, fabric-reinforced Neoprene or Natural Rubber diaphragms, and corrosion-resistant end connectors, these air actuators ensure unparalleled durability and performance. Our product range includes various configurations to suit your specific requirements, such as Single, Double, and Triple Convoluted Bellows, Rolling Lobe, and Sleeve models, available in multiple sizes and end connector styles tailored for seamless integration.


    Product Details


    Bottom Plate AlignmentParallel
    Bottom Plate Center To Center Diameter158 mm
    Bottom Plate Diameter184 mm
    Bottom Plate Hole Quantity4
    Bottom Plate TypeSteel
    Top Plate AlignmentParallel
    Top Plate Center To Center Diameter158 mm
    Top Plate Diameter184 mm
    Top Plate Hole Quantity4
    Top Plate TypeSteel
    Bellow Maximum Diameter230 mm
    Expanded Height225 mm
    Compressed Height72 mm
    Spring TypeDouble Convoluted
    Air Inlet1/2 BSP
    Nut/Blind Nuts Type4pcs×M10

    Refer Number


    • Parker

    9109011


    • Firestone

    W01-R58-4055, W01R584055, W01 R58 4055

    WO1-R58-4055, WO1R584055, WO1 R58 4055


    • Dunlop Pneuride

    8''×2, 8'×2, 8×2


    • Dunlop Springride

    SP1490, SP 1490


    • Contitech

    FD 138-18 DS, FD138-18 DS, FD13818 DS

    FD138 18 DS, FD 13818 DS, FD 138 18 DS


    • Norgren

    M/31082, M31082, M 31082


    Contitech Air Springs


    Single ConvolutedDouble ConvolutedTriple Convoluted
    FS 40-6 CIFD 40-10 CIFT 330-29 CI
    FS 50-5 CIFD 70-13 CIFT 430-32 CI
    FS 70-7 CIFD 110-15 CIFT 530-32 CI
    FS 100-10 CIFD 120-17 CIFT 530-35 CI
    FS 120-10 CIFD 120-20 CIFT 960-34 CI
    FS 120-12 CIFD 200-19 CIFT 1330-35 CI
    FS 200-10 CIFD 200-22 CI
    FS 310-12 CIFD 200-25 CI
    FS 330-11 CIFD 330-22 CI
    FS 330-14 CIFD 330-30 CI
    FS 530-11 CIFD 530-22 CI
    FS 530-14 CIFD 530-35 CI
    FS 960-12 CIFD 960-22 CI
    FS 1330-11 CIFD 1330-25 CI

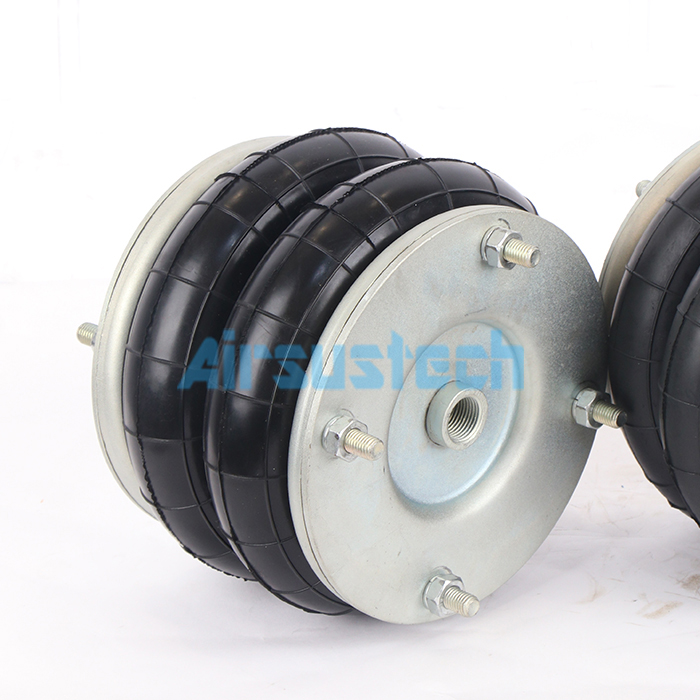

    Real Images


    Quality Parker 9109011 Suspension Air Springs 1/2'' BSP Air Hole Flange Pneumatic Bellow for sale
