Brand Name : | AIRSUSTECH |
Model Number : | 2B8×2T |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Product Specifications
Nut/Blind nuts | Nut length: 25 mm |
Number of screws on the top cover: 4 | |
Number of bottom cover screws: 4 | |
Top cover plate screw (nut) tooth: M10 | |
Top cover screw center distance: 155.5 mm | |
Screw (nut) teeth of the bottom cover plate: M10 | |
Center distance of bottom cover plate screw: 155.5 mm | |
Air hole/air inlet | Air hole/air inlet: G1/2 |
Cover | Top cover diameter: 184 mm |
Diameter of bottom cover: 184 mm | |
Rubber bellows | Natural diameter of rubber bellows: 230 mm |
Product Technical Data
Force F[kN]
Pressure P | [bar] | 3 | 4 | 5 | 6 | 7 | 8 |
Height H [mm] | 220 | 2.9 | 4.03 | 5.16 | 6.41 | 7.65 | 8.98 |
200 | 3.86 | 5.27 | 6.68 | 8.21 | 9.73 | 11.3 | |
150 | 5.9 | 8 | 10.1 | 12.4 | 14.7 | 16.9 | |
100 | 8.2 | 10.9 | 13.7 | 16.6 | 19.4 | 22.4 |
2B8×2T Refer NO.
Norgren Air Spring: M/31082 Norgren Air Spring: M31082 Norgren Air Spring: M 31082 |
Firestone Air Spring: W01-R58-4055 Firestone Air Spring: W01 R58 4055 Firestone Air Spring: W01R584055 Firestone Air Spring: WO1-R58-4055 Firestone Air Spring: WO1 R58 4055 Firestone Air Spring: WO1R584055 |
Dunlop Pneuride Air Spring: 8''×2 Dunlop Pneuride Air Spring: 8'×2 Dunlop Pneuride Air Spring: 8×2 Dunlop Springride Air Spring: SP 1490 |
Contitech Air Spring: FD 138-18 DS Contitech Air Spring: FD138-18 DS Contitech Air Spring: FD13818 DS Contitech Air Spring: FD 13818 DS Contitech Air Spring: FD 138 18 DS |
Parker Air Spring: 9109011 |
Common Applications for Air Bags
1. Primary Trailer Suspension Air Springs provide outstanding cargo
protection while reducing maintenance problems caused by road shock
and 'trailer hop' when empty. Trailers last longer and can be used
to haul a wider variety of cargo, reducing expensive empty trailer
miles.
2. Lift Axle Air Springs allow you to lift the axle without ever
leaving the cab. Saves tire wear under empty or partial load
conditions and lets you negotiate tight corners with spread
tandems.
Drive Axle Air Springs substantially improve the ride and handling
of the tractor, resulting in greater driver comfort and safety,
less tractor maintenance, longer tire wear and higher trade-in
value. They require little maintenance and last more than twice as
long as steel springs.
3. Front Axle Air Springs significantly improve steering and
handling while improving tire wear and reducing problems caused by
cab vibration.
4. Cab Mount Air Springs eliminate most problems experienced with
standard cab mounts and help reduce damaging cab vibration.
5. Seat Air Springs increase driver comfort and help alleviate
hazardous driver fatigue

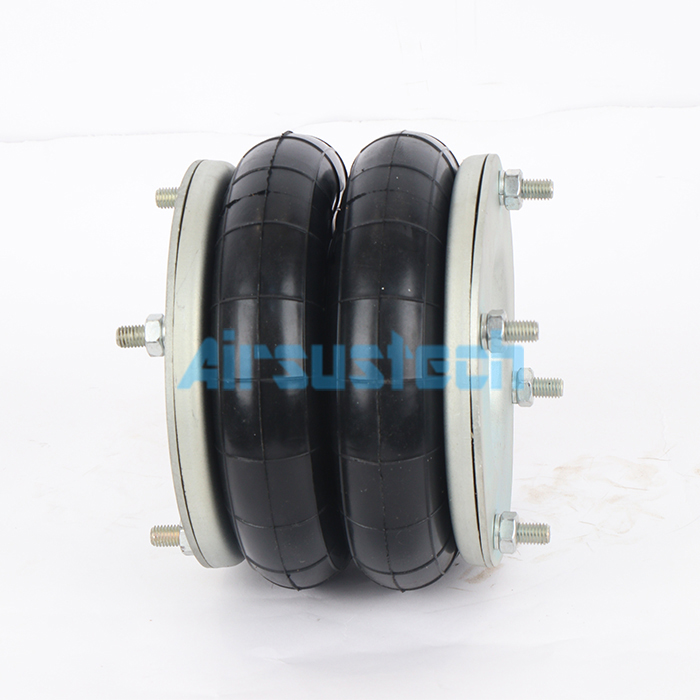

Real Pictures of 2B8×2T
![]() |
