Brand Name : | AIRSUSTECH |
Model Number : | 2H7772 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Product Specifications
Cover Plate | |
Top Cover Plate Diameter | 23.64 In. |
Screw Center Distance of Top Cover Plate | 22 In. |
Bottom Cover Plate Diameter | 23.64 In. |
Screw Center Distance of Bottom Cover Plate | 22 In. |
Nut/Blind Nut | |
Top Cover Plate Screw(Nut) Tooth | 24×3/8 |
Bottom Cover Plate Screw(Nut) Tooth | 24×3/8 |
Rubber Bellow | |
Rubber Bellow Max. Dia. | 26 In. |
Minimum Height | 3.5 In. |
Maximum Height | 12 In. |
Product Technical Data
AIRMOUNT ISOLATOR | |
Design Height | 9.5 |
Load (at Design Height) at: 40 psig (pounds) | 13290 |
Load (at Design Height) at: 60 psig (pounds) | 20390 |
Load (at Design Height) at: 80 psig (pounds) | 27330 |
Natural Frequency (@80 psig) (cpm) | 93 |
% of Isolation at Forced Frequency 400 CPM | 94.2 |
% of Isolation at Forced Frequency 800 CPM | 98.6 |
% of Isolation at Forced Frequency 1500 CPM | 99.6 |
Parts Interchanges
AIRSUSTECH Air Spring 2H630262-558 |
Firestone Air Spring W01-358-7772, W01 358 7772, W013587772 WO1-358-7772, WO1 358 7772, WO13587772 |
Firestone Air Spring WO1-358-7775, WO1 358 7775, WO13587775 |
Firestone Air Spring WO1-358-5126, WO1 358 5126, WO13585126 |
Flange connection type of air spring model comparison table | |||
GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
FS22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
FS44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
FS76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
FS76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
FS138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
FS210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
FS412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
FS614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
FS816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
FD22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
FD44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
FD76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
FD76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
FD138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
FD209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
FD210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
FD412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
FD614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
FD816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
FT22-6DICR | FT 22-6 DI CR | FT44-15DICR | FT 44-15 DI CR |
FT76-20DICR | FT 76-20 DI CR | FT614-36DS | FT 614-36 DS |
FT76-20DSCR | FT 76-20 DS CR | FT412-32DS | FT 412-32 DS |
FT138-26DS | FT 138-26 DS | FT210-32DS | FT 210-32 DS |
FAQ
Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.
Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.
Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

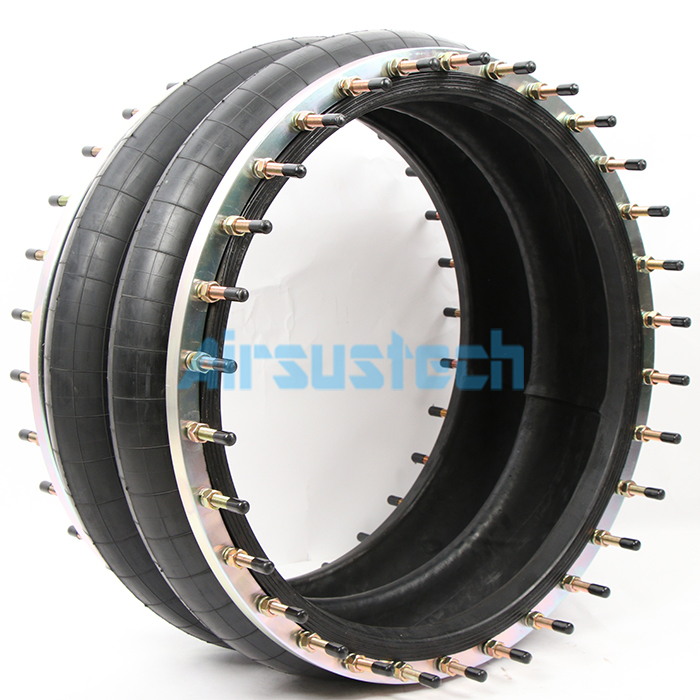

Detailed Pictures of AIRSUSTECH Air Spring
![]() |
