    Holland 90557226 Air Suspension Contitech FS 330-11 Single Convoluted Air Bellow

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B5330
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Holland 90557226 Air Suspension Contitech FS 330-11 Single Convoluted Air Bellow

    Holland 90557226 Air Suspension Contitech FS 330-11 Single Convoluted Air Bellow



    Product Specifications

    Bottom Plate Alignment: Parallel
    Bottom Plate Center To Center Diameter: 157.5 mm
    Bottom Plate Diameter: 231 mm
    Bottom Plate Hole Quantity: 2
    Bottom Plate Type: Steel
    Top Plate Alignment: Parallel
    Top Plate Center To Center Diameter: 157.5 mm
    Top Plate Diameter: 231 mm
    Top Plate Hole Quantity: 3
    Top Plate Type: Steel
    Bellow Maximum Diameter: 325 mm
    Expanded Height: 160 mm
    Compressed Height: 55 mm
    Spring Type: Single Convoluted
    Air Inlet: 1/4 NPTF

    Nut/Blind Nuts Type: 2×3/8-16UNC



    Cross References

    Holland(Neway) Air Spring
    90557226

    Firestone Air Spring
    W01-358-7008, W01 358 7008, W013587008
    WO1-358-7008, WO1 358 7008, WO13587008

    Contitech Air Spring
    FS 330-11 474, FS330-11 474, FS 330 11 474
    FS 33011 474, FS33011 474, FS330 11 474

    Goodyear Air Spring
    1B12-300, 1B12 300, 1B 12-300, 1B 12300
    1B12-313, 1B12 313, 1B 12-313, 1B 12313

    Triangle Air Spring
    6374, 4474


    AIRSUSTECH Air Spring Information

    1. Pneumatic actuators are specifically engineered for machines, devices, and vehicles where the elimination of vibrations and shocks is critical. They find application in various scenarios, including the suspension of seats, bus axles, trucks, trolley-buses, tractors, trains, and trams.
    2. Air springs are utilized to resiliently mount machines and devices that generate shocks and vibrations, which are transmitted through their foundation to the surrounding environment. Examples include textile looms, conveyors, impact hammers, and forging presses. These springs are also ideal for isolating laboratory instruments from vibrations. Additionally, they are employed in suspending truck trailers and caravans. They are also commonly used in pneumatic lifts, such as those found in car repair shops. Operating as a single linear air motor is another frequent application.
    3. The benefits of using pneumatic actuators and air springs include vehicle and cargo protection, reduced tire wear, lower fuel consumption, minimal maintenance costs, and an extended service life.
    4. It is important to note that the rubber used in the bellows is not resistant to petroleum products such as oil, diesel, gasoline, and kerosene. In the event of contamination by any of these substances, it is recommended to rinse the affected area with warm water and wipe it dry.



    FAQ

    Q1: What's your advantage?
    A1: (1) Resonable price, good service
    (2) Reliable quality, long working life
    (3) Quick and safe modes of payment
    (4) Ships items timely and quickly
    (5) Our products are exported to most countries in the world
    Q: Can you produce the product according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
    Q: What will you do for customer's complaint?
    A: We will respond quickly to our customers within 24 hours.
    Q: Where are the Suspension Air Springs manufactured?
    A: The Suspension Air Springs are manufactured in Guangzhou, China.

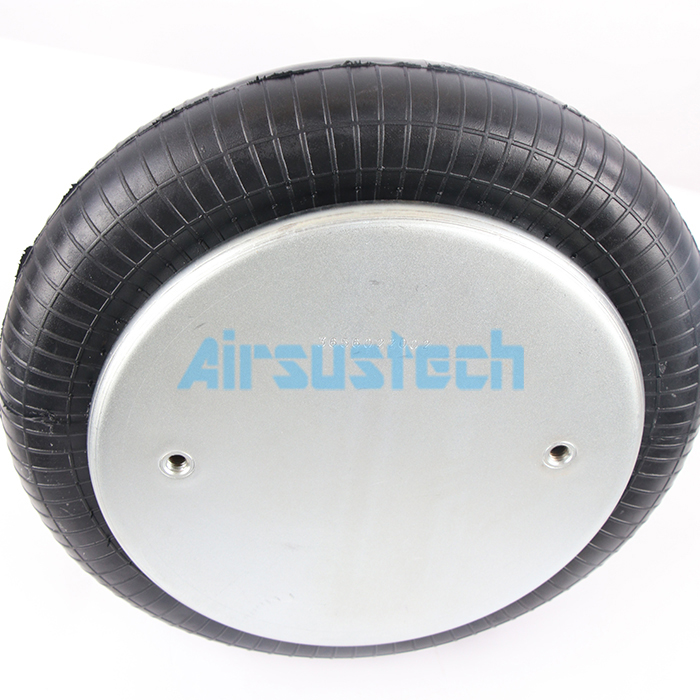

    The Real Pictures of 1B5330
