1B200-10 Specification
| Cover Plate |
| Top Cover Plate Diameter | 161 mm |
| Screw Center Distance of Top Cover Plate | 89 mm |
| Bottom Cover Plate Diameter | 161 mm |
| Screw Center Distance of Bottom Cover Plate | 89 mm |
| Nut/Blind Nuts |
| Top Cover Plate Screw(Nut) Tooth | 4×M8 |
| Bottom Cover Plate Screw(Nut) Tooth | 4×M8 |
| Gas Hole/Air Inlet/Air Fitting |
| Air Hole | G 1/4 |
| Rubber Bellow |
| Rubber Bellow Natural Dia. | 250 mm |
| Minimum Height | 51 mm |
| Maximum Height | 140 mm |
Cross References
Contitech Air Spring FS 200-10, FS200-10, FS200 10, FS 200 10 |
Firestone Air Spring W01-M58-6374, W01 M58 6374, W01M586374 WO1-M58-6374, WO1 M58 6374, WO1M586374 |
Phoenix Air Spring SP 1B 12, SP1B 12, SP 1B12, SP1B12 |
Dunlop(FR) Air Spring 9'' 1/4x1 S09101, 9' 1/4x1 S09101, 9 1/4x1 S09101 |
Bosch Air Spring 822419004 |
Festo Air Spring EB-250-85, EB 250 85, EB25085 |
Norgren Air Spring PM/31091(81/4x1), PM 31091(81/4x1), PM31091(81/4x1) |
We Can Offer Phoenic Other Type Air Spring
| Single Convoluted Rubber Bellow |
| FS 40-6 CI | FS 50-5 CI | FS 70-7 CI |
| FS 100-10 CI | FS 120-9 CI | FS 120-10 CI |
| FS 120-12 CI | FS 200-10 CI | FS 310-12 S |
| FS 330-11 CI | FS330-14 CI | FS 530-11 CI |
| FS 530-14 CI | FS 960-12 CI | FS 1330-11 CI |
| Double Convoluted Rubber Bellow |
| FD 40-10 CI | FD 70-13 CI | FD 110-15 CI |
| FD 120-17 CI | FD 120-20 CI | FD 200-19 CI |
| FD 200-22 CI | FD 200-25 CI | FD 330-22 CI |
| FD 330-22 CI | FD 330-30 CI | FD 530-22CI |
| FD 530-30 CI | FD 530-35 CI | FD 960-22 CI |
| FD 1330-25 CI | | |
| Triple Convoluted Rubber Bellow |
| FT 330-29 CI | FT 430-32 CI | FT 530-32 CI |
| FT 530-35 CI | FT 960-34 CI | FT 1330-35 CI |
Product Applications
- Applications
- Pulp and paper industry
- Lumber mills
- Lift tables
- Tooling and machining system
- Energy production
- Tooling robotics and automation
- Component assembly
- Automotive assembly
- Medical equipment
- Conveyor systems
- Packaging
Frequently Asked Questions
1. What makes the W01-M58-6374 different from other air springs?
The 1B200-10 is built with high-grade materials while delivering
superior vibration isolation. Its adaptability across different
industries makes it a standout choice for operational reliability.
2. Can this air spring be used in extreme conditions?
Yes, it performs consistently within a temperature range of -40°C
to 70°C, ensuring reliable functionality even in challenging
environments.
3. What level of maintenance does this product require?
Routine checks for air pressure and occasional review of physical
wear will keep the air spring in optimal condition, ensuring
continue performance and longevity.
4. Is the installation process complicated?
Not at all! Its compact and modular design ensures straightforward
installation, eliminating the need for specialized tools.

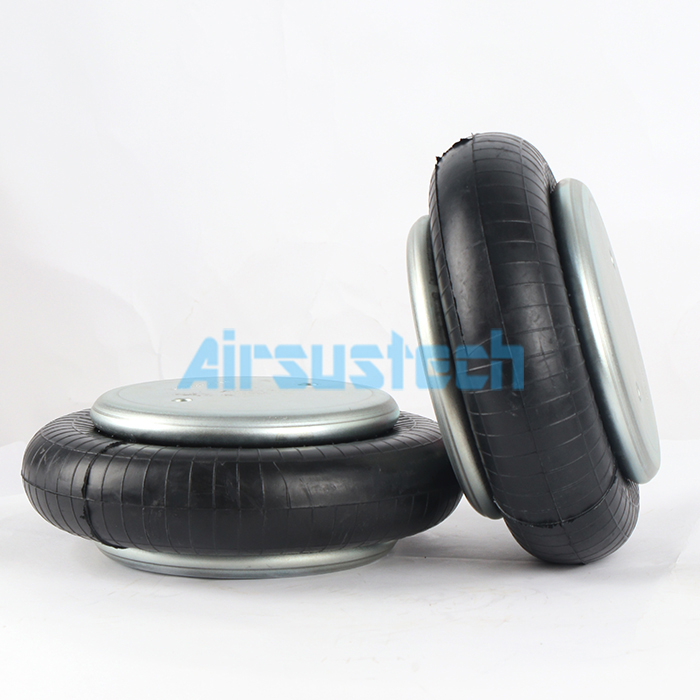

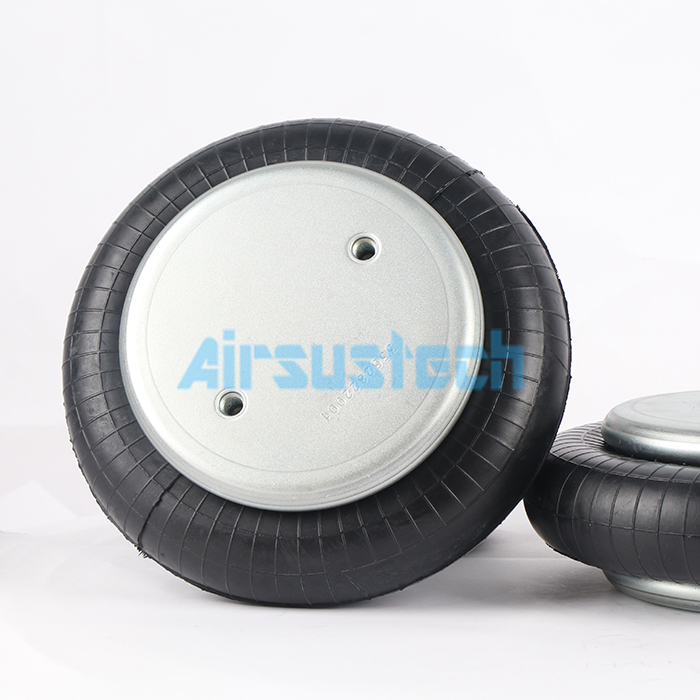

Detailed Photos
