Brand Name : | AIRSUSTECH |
Model Number : | 2B10×2T |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |

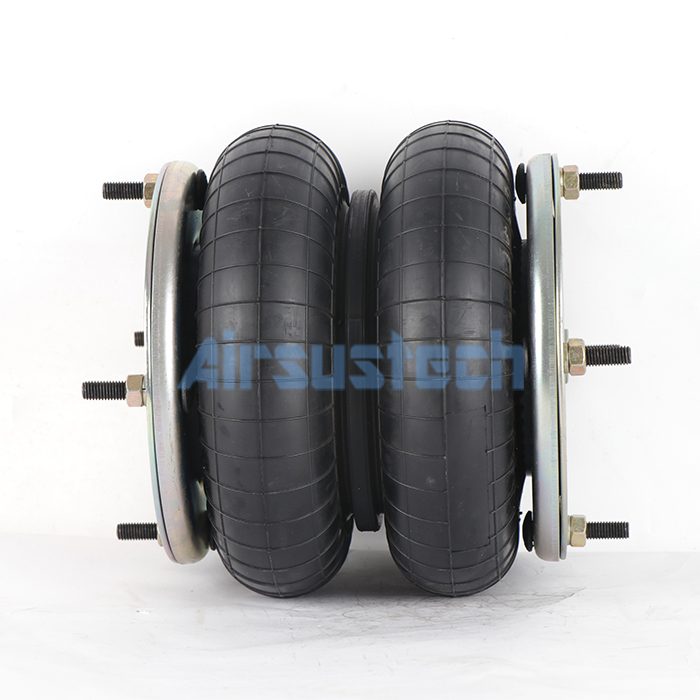

SP1538 Dunlop Springride Air Suspension Cross Dunlop 10''×2 Convoluted Air Spring
Product Specification
Top Cover Plate Diameter | 210 mm |
Screw Center Distance of Top Cover Plate | 181 mm |
Bottom Cover Plate Diameter | 210 mm |
Screw Center Distance of Bottom Cover Plate | 181 mm |
Top Cover Plate Screw(Nut) Tooth | 4×M10 |
Bottom Cover Plate Screw(Nut) Tooth | 4×M10 |
Air Hole | 1/2 BSP |
Rubber Bellow Max. Dia. | 280 mm |
Design Height | 160 mm |
Minimum Height | 70 mm |
Maximum Height | 240 mm |
Cross References
Dunlop Springride Air Spring SP 1538, SP1538 |
Dunlop Pneuride Air Spring 10''×2, 10'×2, 10×2 |
Firestone Air Spring W01-R58-4058, W01 R58 4058, W01R584058 WO1-R58-4058, WO1 R58 4058, WO1R584058 |
Contitech Air Spring FD 210-22 DS, FD 210 22 DS, FD210-22 DS, FD210-22 DS FD 210-22 1/2 M10, FD 210 22 1/2 M10, FD210-22 1/2 M10 |
Norgren Air Spring M/31102, M31102, M 31102 |
Parker Air Spring 9109021 |
Airkraft Air Spring 2B-255, 2B 255, 2B255, 113100 |
Granning Air Spring 15807 |
Samro Air Spring H 250-0021, H250-0021, H250 0021, H2500021 H2500189, H 2500189, H2500 189, H 2500 189 |
Dunlop Air Spring PNP 305450112 |
Airbag Man DB1028 |
What Are The Advantages of Our Shock Absorbers
FAQ
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in
good condition.
(3) Track and receive feedback from our customers.
Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.
Q: What is the model number of the Suspension Air Springs?
A: The model number of the Suspension Air Springs is 2B10×2T.
Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes
or as per the customers' requirements.
2B10×2T Related Images
Company Profile
Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly buil twith advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.
Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubberairspring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles ,but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.
Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standardsofproduction,tocreateaworld-classproducts.
![]() |
