    Contitech FD 210-22 DS Double Convoluted Air Actuators And Vibration Isolators

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B10×2T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

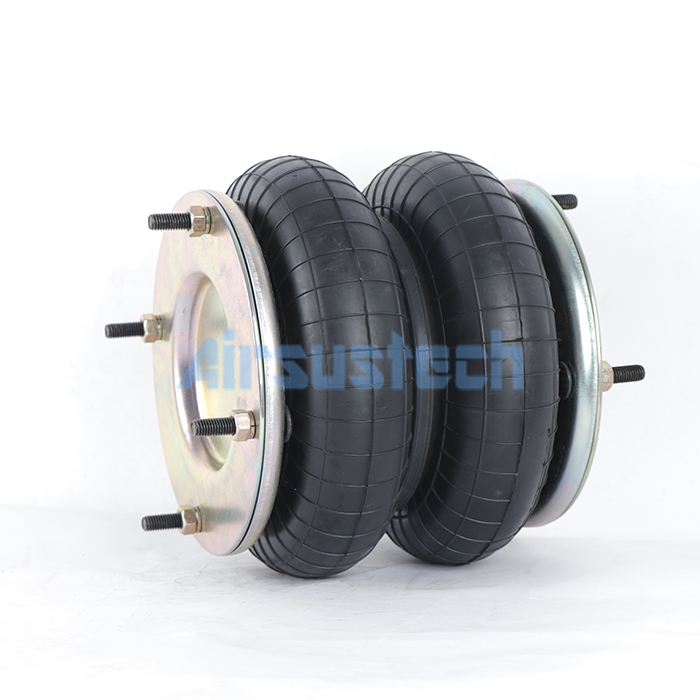

    Contitech FD 210-22 DS Double Convoluted Air Actuators And Vibration Isolators

    Contitech FD 210-22 DS Double Convoluted Air Actuators and Vibration Isolators


    Product Introduction


    Pneumatic actuators are designed for machines, devices and vehicles in which it is necessary to eliminate vibrations and shocks. Used in the suspension of seats, bus axles, trucks, troley-buses, tractors, trains and trams.

    Air springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.


    Product Specification


    Top Cover Plate Diameter: 210 mm
    Screw Center Distance of Top Cover Plate: 181 mm
    Bottom Cover Plate Diameter: 210 mm
    Screw Center Distance of Bottom Cover Plate: 181 mm
    Top Cover Plate Screw(Nut) Tooth: 4×M10
    Bottom Cover Plate Screw(Nut) Tooth: 4×M10
    Gas Hole: 1/2 BSP
    Rubber Bellow Max. Dia.: 280 mm
    Design Height: 160 mm
    Minimum Height: 70 mm
    Maximum Height: 240 mm

    Alternative Items


    Dunlop Springride

    SP 1538, SP1538

    Dunlop Pneuride

    10''×2, 10'×2, 10×2

    Firestone

    W01-R58-4058, W01 R58 4058, W01R584058

    WO1-R58-4058, WO1 R58 4058, WO1R584058

    Contitech

    FD 210-22 DS, FD 210 22 DS, FD210-22 DS, FD210-22 DS

    FD 210-22 1/2 M10, FD 210 22 1/2 M10, FD210-22 1/2 M10

    Norgren

    M/31102, M31102, M 31102

    Parker

    9109021

    Airkraft

    2B-255, 2B 255, 2B255, 113100

    Granning

    15807

    Samro

    H 250-0021, H250-0021, H250 0021, H2500021

    H2500189, H 2500189, H2500 189, H 2500 189

    Dunlop

    PNP 305450112

    Airbag Man

    DB1028
