Brand Name : | AIRSUSTECH Air Spring |
Model Number : | 2B6×2P |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
2B6×2P Air Spring Specification
Medium | Compressed air |
---|---|
Operating Temperature | -40-70°C |
Operating Pressure Ability | 0-8 bar |
Port Size | 1/2 BSP |
Nominal Diameter | 6" |
Number Of Convolutions | 2 |
Stroke Length | 140mm |
Magnetic/Non-magnetic | Non-magnetic |
Materials - Body | Aluminium |
Dimensions - Max. Height | 168 mm |
Dimensions - Min. Height | 115 mm |
Dimensions - Width | 152.4 mm |
Bellow Weight | 2.08 kg |
Country of Origin | China |
Brand | AIRSUSTECH Air Spring |
2B6×2P Air Spring Refer NO.
AIRSUSTECH Refer to Norgren
AIRSUSTECH | NORGREN | GUOMAT | NORGREN |
4.5x1 | PM/31041 | 4.5x2 | PM/31042 |
4.5x3 | PM/31043 | 6x1(Al) | PM/31061 |
6x1(Steel) | M/31061 | 6x2(Al) | PM/31062 |
6x2(Steel) | M/31062 | 6x3(Al) | PM/31063 |
6x3(Steel) | M/31063 | 8x1 | M/31081 |
8x2 | M/31082 | 8x3 | M/31083 |
10x1 | M/31101 | 10x2 | M/31102 |
10x3 | M/31103 | 12x1 | M/31121 |
12x2 | M/31122 | 12x3 | M/31123 |
14.5x1 | M/31141 | 14.5X2 | M/31142 |
14.5x3 | M/31143 | 16x1 | M/31161 |
16x2 | M/31162 | 16x3 | M/31163 |
21.5x2 | M/31212 | 26x2 | M/31262 |
FAQ
Q: What is your sample policy? |

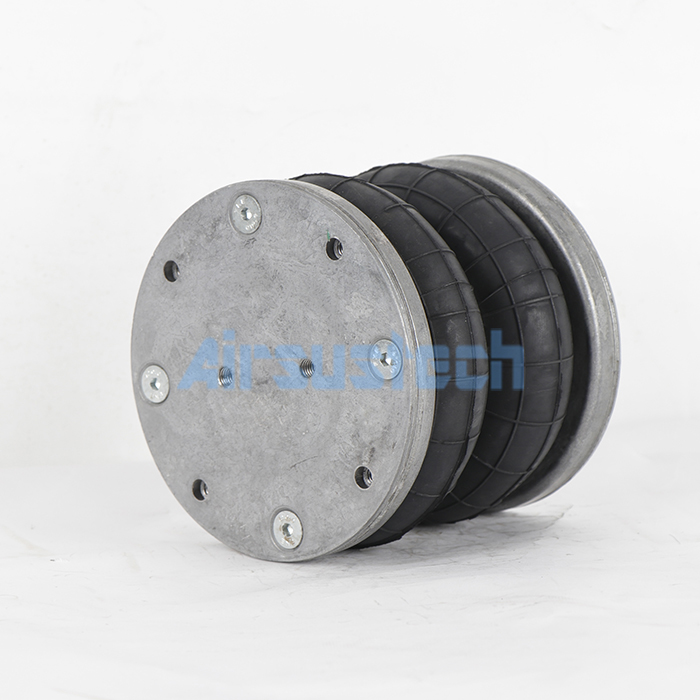

2B6×2P Air Spring Real Pictures
Company Profile
Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly buil twith advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.
Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubberairspring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles ,but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.
Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standardsofproduction,tocreateaworld-classproducts.
![]() |
