    Firestone W01-R58-4056 Air Shock Absorber Triple Convoluted Air Spring Long Life

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B8×3T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone W01-R58-4056 Air Shock Absorber Triple Convoluted Air Spring Long Life

    Firestone W01-R58-4056 Air Shock Absorber Triple Convoluted Air Spring Long Life


    Product Specification


    Bottom Plate AlignmentParallel
    Bottom Plate Center To Center Diameter156 mm
    Bottom Plate Diameter184 mm
    Bottom Plate Hole Quantity5
    Bottom Plate TypeSteel
    Top Plate AlignmentParallel
    Top Plate Center To Center Diameter156 mm
    Top Plate Diameter184 mm
    Top Plate Hole Quantity4
    Top Plate TypeSteel
    Bellow Natural Diameter203 mm
    Compressed Height115 mm
    Spring TypeTriple Convoluted
    Nut/Blind Nuts Type4×M10
    Air Inlet1/2 BSP

    3B8×3T Refer Number


    Firestone

    W01-R58-4056, W01 R58 4056, W01R584056

    WO1-R58-4056, WO1 R58 4056, WO1R584056

    Dunlop Pneuride

    8''×3, 8'×3, 8×3

    Dunlop Springride

    SP2863, SP 2863

    Contitech

    FT 138-26 DS, FT 138 26 DS, FT138-26 DS

    FT138 26 DS, FT 13826 DS, FT13826DS

    Norgren

    M/31083, M 31083, M31083

    Parker

    9109017


    Triple Convoluted Rubber Bellow We Can Supply


    OEM NO.Min. HeightMax. Height

    Rubber Max. Dia

    Top/Bottom Cover Plate Dia.

    Threaded Hole Size
    6''×3105 mm225 mm168 mm168 mmM10
    8''×3100 mm350 mm215 mm184 mmM10
    10''×3100 mm365 mm280 mm210 mmM10
    12''×3100 mm430 mm330 mm260 mmM10

    Precautions To Observe
    • Do not exceed stated stroke.
    • Do not inflate assembly when it is unrestricted.
    • Do not inflate beyond pressures stated without
    • prior consultation with Dunlop.
    • Respect maximum and minimum heights.
    • The bellows must be securely fixed.
    • Do not use without air pressure.

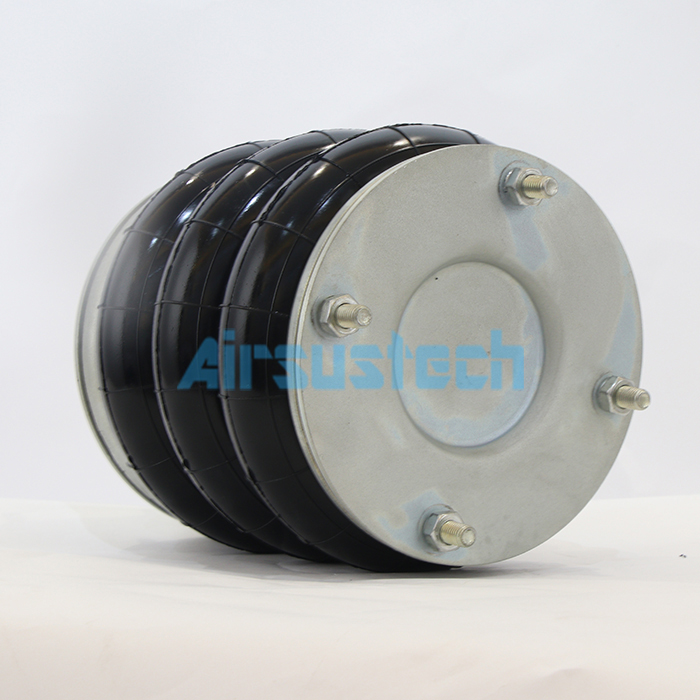

    3B8×3T Real Pictures




    Company Profile


    Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly buil twith advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.

    Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubber air spring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles ,but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.

    Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standardsofproduction,tocreateaworld-classproducts.
