    Dunlop Pneuride 6''×1 Air Spring For Lifting Shock Absorption

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B6×1P
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Dunlop Pneuride 6''×1 Air Spring For Lifting Shock Absorption

    Best Warranty Dunlop Pneuride 6''×1 Air Spring For Lifting Shock Absorption


    Product Description

    Air springs have been an integral component of heavy-duty vehicle suspension systems for almost a century, harnessing the power of compressed air inherent in vehicle braking systems to deliver unparalleled performance. Among these, the 1B6×1P air springs offer a distinct dual advantage over traditional mechanical leaf or coil springs. The primary benefit of air suspension lies in its ability to adjust the air pressure within the spring, thereby altering the spring rate and enhancing ride quality significantly. Furthermore, the variable control over air pressure enables precise adjustment of the deck or trailer height, facilitating seamless alignment with loading docks even in the absence of dock plates.


    Product Specifications


    Air Hole

    Gas Fitting: G 1/2

    Operation: Gas-filled

    Screw/Blind Nuts

    Screw Type: 4 pcs×M8

    Distance Air Hole Betweeen Screw Hole: 63.5 mm

    Screw Center Distance: 127 mm

    Cover Plate

    Top Cover Plate Diameter: 152.5 mm

    Bottom Cover Plate Diameter: 152.5 mm

    Height

    Minimum Height: 55 mm

    Maximum Height: 110 mm

    Recommed Height: 90 mm

    Rubber Bellows

    Installation Diameter: 190 mm

    Bellow MAX. Diameter: 175 mm

    Pressure Ability: 3-8 bar


    Cross References


    Dunlop Pneuride

    6" x 1, 6' x 1, 6 x 1

    Firestone

    W01-R58-4078, W01R584078, W01 R58 4078

    WO1-R58-4078, WO1R584078, WO1 R58 4078

    Contitech

    FS 76-7 DI, FS 76 7 DI, FS767DI, FS76-7 DI

    FS767 DI, FS 76 7FDI, FS76-7DI,FS 7-67DI

    Dunlop Springride

    SP2913 SP 2913

    Norgren

    PM/31061

    Parker

    9109004A


    Precautions to Observe
    • Do not exceed stated stroke.
    • Do not inflate assembly when it is unrestricted.
    • Do not inflate beyond pressures stated without
    • prior consultation with Dunlop.
    • Respect maximum and minimum heights.
    • The bellows must be securely fixed.
    • Do not use without air pressure.

    FAQ


    Q: How to order ?
    A: Step 1, please tell us what model and quantity you need;
    Step 2, then we will make a PI for you to confirm the order details;
    Step 3, when we confirmed everything, you can arrange the payment;
    Step 4, finally we deliver the goods within the stipulated time.


    Q: When will make delivery ?
    A: Delivery time is 3-8woring days.


    Q: After-sales service?
    A: One year warranty for all kinds of products. If you have any questions after receiving the goods, please feel free to contact me, as an experienced manufacturer, you can rest assured of the quality and after-sales service.


    Q: Is the sample available?
    A: Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.

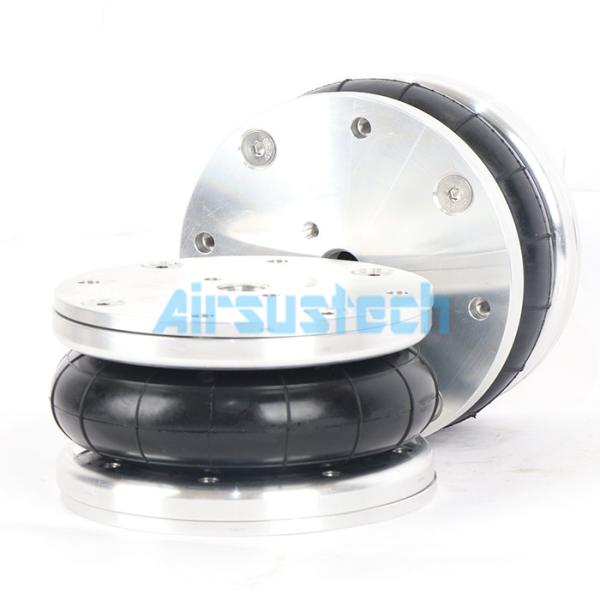

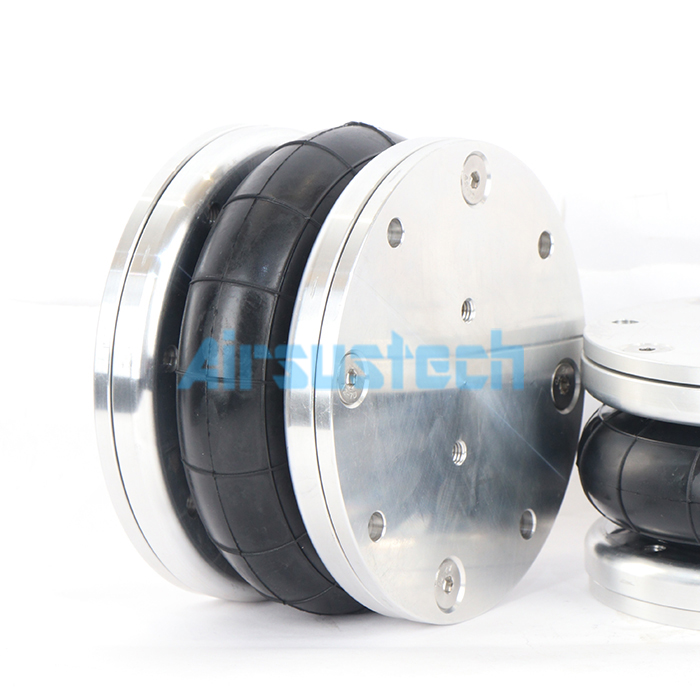

    1B6×1P The Detailed Pictures



    Quality Dunlop Pneuride 6''×1 Air Spring For Lifting Shock Absorption for sale
