    9109024 Parker Industrial Air Spring Double Convoluted For Industrial Performance

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B10×1T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    9109024 Parker Industrial Air Spring Double Convoluted For Industrial Performance

    9109024 Parker Industrial Air Spring Double Convoluted For Industrial Performance


    Product Description

    Meticulously engineered to deliver unparalleled performance and adaptability across diverse applications, our actuator boasts a robust construction featuring a precision-crimped assembly that guarantees superior strength and longevity. This structural integrity is further enhanced by a convoluted bellow, meticulously fabricated from Natural Rubber, a material celebrated for its exceptional dynamic performance and versatile characteristics. These attributes not only endow our actuator with formidable power but also ensure its seamless integration and optimal functionality in an array of operational environments.


    1B10×1T Specifications

    Cover Plate
    Top Cover Plate Diameter: 210 mm
    Screw Center Distance of Top Cover Plate: 181 mm
    Bottom Cover Plate Diameter: 210 mm
    Screw Center Distance of Bottom Cover Plate: 181 mm
    Nut/Blind Nut
    Top Cover Plate Screw(Nut) Tooth: 4×M10
    Bottom Cover Plate Screw(Nut) Tooth: 4×M10
    Gas Hole/Air Inlet/Air Fitting
    Air Hole: 1/2 BSP
    Rubber Bellow
    Rubber Bellow Dia: 280 mm
    Minimum Height: 50 mm
    Maximum Height: 135 mm



    Other OEM Number

    Parker

    9109024

    Firestone

    W01-R58-4057, W01 R58 4057, W01R584057

    WO1-R58-4057, WO1 R58 4057, WO1R584057

    Contitech

    FS 210-10 DS, FS 210 10 DS, FS21010DS, FS 210-10DS

    FS 21010DS, FS 210 10DS, FS210-10 DS, FS210 10 DS

    Dunlop Pneuride

    10''×1

    Dunlop Springride

    SP2523, SP 2523

    Norgren

    M/31101



    Air Bellows Characteristics

    • Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators.
    • Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model.
    • They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional
    • pneumatic cylinders.
    • All models are single acting only. The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself.
    • The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous
    • conditions.
    • Air bellows are suitable for vibration applications i.e. device feeders at high frequency

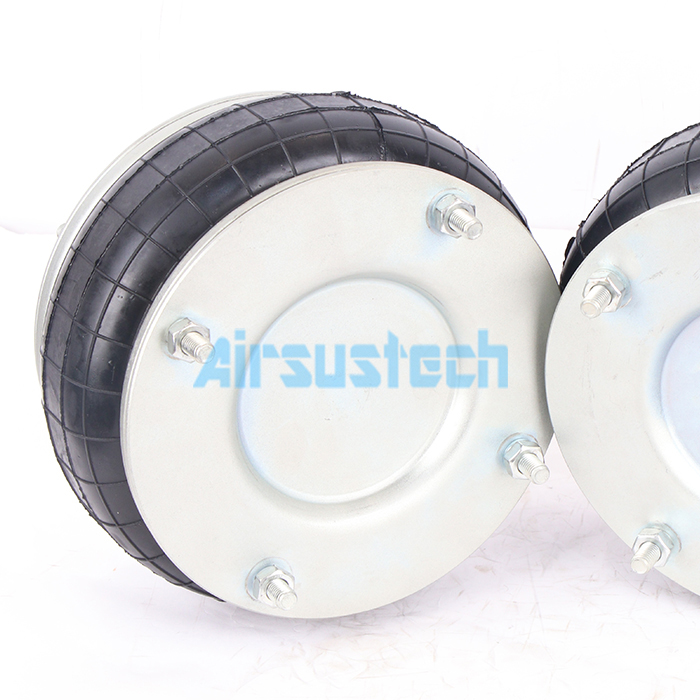

    1B10×1T Air Spring Display
