    PM31121 Norgren Single Convoluted Air Springs For Vibration Conveyor Air Actuator

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B12×1P
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    PM31121 Norgren Single Convoluted Air Springs For Vibration Conveyor Air Actuator

    PM31121 Norgren Single Convoluted Air Springs For Vibration Conveyor Air Actuator


    Product Description


    Air bellows represent the pinnacle of choice for applications demanding short stroke, high-thrust single-acting actuators. Crafted from fabric-reinforced synthetic rubber, they are meticulously designed in one, two, or three convolutions to precisely match stroke and model requirements. Their innovative design eschews reciprocating metal parts, resulting in a virtually frictionless thrust that outshines traditional pneumatic cylinders. Exclusively single-acting, these bellows harness the natural spring action for their return stroke, supplemented by the load itself for optimal performance. The air bellows' streamlined construction ensures an exceptionally long, virtually maintenance-free service life, even in the face of demanding operational conditions. Their adaptability extends to vibration applications, such as high-frequency device feeders, where their performance remains unparalleled.


    Product Specifications


    Type 12''×1
    Height MIN. 50 mm
    Height MAX. 150 mm
    Static Height 100 mm
    Max Stroke 100 mm
    Bellow Max. Diameter 305 mm
    Space Required 330 mm
    Top/Bottom Cover Plate Diameter 260 mm
    Screw Center Distance 232 mm
    Screw Type M10
    Air Size G 1/2
    Max. Pressure 8
    Weight 5.2 kg


    Cross References


    NorgrenPM/31121, PM31121, PM31121
    Contitech

    FS 412-10 DS, FS 412 10 DS, FS412-10 DS, FS412-10DS

    FS 41210 DS, FS 41210DS, FS412-10DS, FS41210DS

    Firestone

    W01-R58-4060, W01 R58 4060, W01R584060

    WO1-R58-4060, WO1 R58 4060, WO1R584060

    Dunlop Pneuride12''×1, 12'×1, 12×1
    Dunlop SpringrideSP1540, SP 1540
    Parker9109044

    Product Applications


    • Scissor lift
    • Hopper vibration and damping
    • Mechanical handling stop
    • Quick lock device
    • Reel tensioning
    • Machine isolation
    • Direct force
    • Impact absorbtion
    • Roller tensioning
    • Platform lift
    • Short stroke mechanical linkage
    • Hot foll stamping press

    FAQ


    Q: Can you produce according to samples?
    A: Yes, it can be developed according to your samples or technical drawings.


    Q: Do you test all goods before delivery?
    A: Yes, 100% tested before delivery.


    Q: How do you make our business long-term and good relationship?
    A: 1. Good quality and competitive prices ensure our customers benefit;
    2.We respect every customer as our friend, we sincerely do business and make friends with them, no matter where they come from.

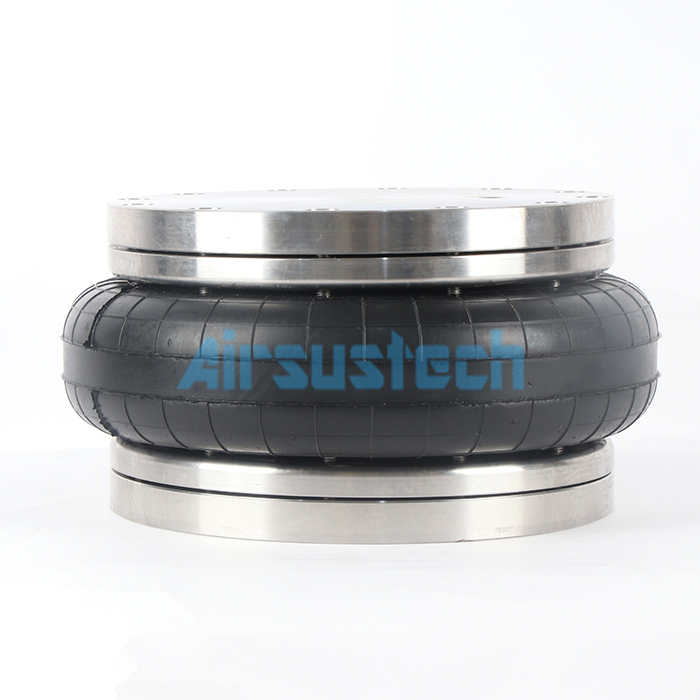

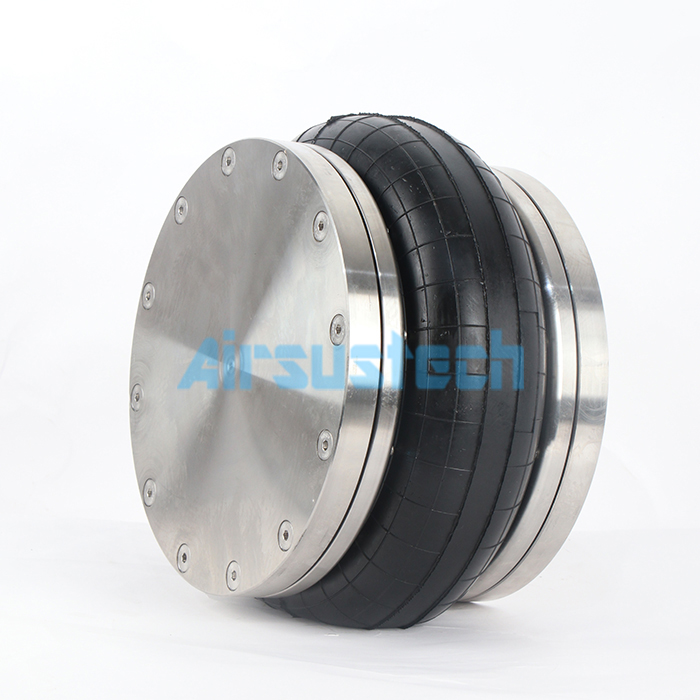

    1B12×1P Detailed Pictures
