100% Tested Dunlop Pneuride Air Suspension 6" x 1 Single Convoluted
Air Shocks
Product Description
The Suspension Air Springs are available in a range of stroke
lengths, from 45 MM to 90 MM, making them suitable for use in a
variety of vehicles and applications. The Air Spring Assembly
design is easy to install and can be used as a direct replacement
for existing air springs or struts. One of the key features of the
Suspension Air Springs is their ability to operate within a wide
temperature range. These air bags are designed to perform in
temperatures ranging from -30℃ to +70℃, making them suitable for
use in extreme weather conditions. The air bags are also capable of
operating within a pressure range of 0.2-0.8 MPA, ensuring that
they can handle the demands of any suspension system. Overall, the
Suspension Air Springs are a reliable and durable solution for any
suspension system. With their single convoluted bellows type
design, wide temperature range, and pressure range, these air bags
are capable of handling the demands of any vehicle. Whether you are
looking to replace existing air springs or struts, or are looking
for a new suspension solution, the Suspension Air Springs are an
excellent choice.
Product Specification
| Top Cover Plate Diameter | 153 MM |
| Screw Center Distance of Top Cover Plate | 127 MM |
| Bottom Cover Plate Diameter | 153 MM |
| Screw Center Distance of Bottom Cover Plate | 127 MM |
| Top Cover Plate Screw(Nut) Tooth | M10 Studs |
| Bottom Cover Plate Screw(Nut) Tooth | M10 Studs |
| Air Hole | 1/2 BSP |
| Rubber Bellow Dia | 168 MM |
| Minimum Height | 45 MM |
| Maximum Height | 90 MM |
Alternative Items
| Dunlop Pneuride | 6''×1, 6'×1, 6×1 |
| Firestone | W01-R58-4052, W01 R58 4052, W01R584052 WO1-R58-4052, WO1 R58 4052, WO1R584052 |
| Dunlop Springride | SP1536, SP 1536 |
| Contitech | FS 76-7 DS, FS 76 7 DS, FS76-7DS, FS76-7 DS, FD767DS |
| Norgren | M/31061, M31061, M 31061 |
| Parker | 9109004 |
Features of Air Suspension
1. Long service life. The self-sealing type has excellent
durability due to less rubber deformation during expansion and
contraction.
2. Maintenance is very simple. There is no friction and sliding
part, so no lubricating oil is required.
3. The installation height can be reduced. Compared with other
springs, the installation height can be reduced, effectively
increasing the stroke.
4. The spring parameters with elasticity and softness can be
obtained, with large load and elasticity and excellent vibration
resistance.
5. The output of the load-bearing capacity is variable, and the
load-bearing capacity can be changed within a wide range by
changing the internal pressure.
6. The height can be controlled. If used in conjunction with the
height adjustment valve, a constant height can be maintained for
different loads.
7. It has a damping effect. If used in conjunction with the
auxiliary air chamber and the throttle valve, excellent

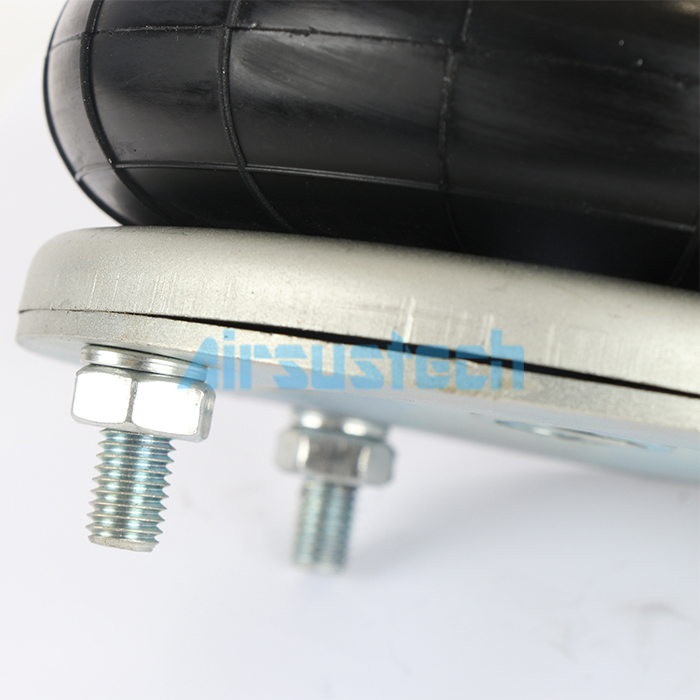

Detailed Pictures
