Brand Name : | AIRSUSTECH |
Model Number : | 1B1209 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Product Specification
Cover Plate Top Cover Plate Diameter: 135 mm Screw Center Distance of Top Cover Plate: 53 mm Bottom Cover Plate Diameter: 135 mm Screw Center Distance of Bottom Cover Plate: 53 mm Distance Between Screw and Air Hole: 26 mm |
Air Hole/Gas Hole/Gas Fitting Gas Hole: G 3/4 |
Nut/Nuts Type Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25 Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25 |
Rubber Bellow Rubber Bellow Max Dia: 215 mm Maximum Height: 115 mm Minimum Height: 50 mm |
Product Technical Data
Pressure P | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[I] |
Height H [mm] | 120 | 3.1 | 4.3 | 5.6 | 6.9 | 8.0 | 9.2 | 1.9 |
110 | 3.9 | 5.3 | 6.8 | 8.3 | 9.6 | 10.9 | 1.8 | |
100 | 4.5 | 6.1 | 7.9 | 9.7 | 11.0 | 12.4 | 1.7 | |
90 | 5.0 | 6.8 | 8.9 | 10.8 | 12.2 | 13.8 | 1.5 | |
80 | 5.5 | 7.4 | 9.7 | 11.6 | 13.3 | 15.0 | 1.3 | |
70 | 5.9 | 7.9 | 10.3 | 12.3 | 14.2 | 16.0 | 1.1 | |
60 | 6.3 | 8.2 | 10.7 | 13.0 | 15.0 | 17.0 | 0.9 |
Alternative Items
Bosch | 822419003, 822419008 |
Contitech | FS 120-9, FS 120 9, FS120-9, FS1209, FS 1209 fs 120-9, FS 120 9, fs 120-9, fs 1209, fs 1209 |
Firestone | W01-M58-6165, W01 M58 6165, W01M586165 WO1-M58-6165, WO1 M58 6165, WO1M586165 W01-M58-6166, W01 M58 6166, W01M586166 WO1-M58-6166, WO1 M58 6166, WO1M586166 |
Dunlop | 8''x1, 8'x1, 8x1, S08101, S 08101, S08100, S 08100 |
Festo | EB-215-80, EB 215 80, EB21580, EB215 80 |
Norgren | PM/31081, PM 31081, PM21081 |
Weforma | WBE 300-E1, WBE 300-E1, WBE300E1, WBE300-E1 WBE 300-E2, WBE 300-E2, WBE300E2, WBE300-E2 |
Airtech | 140293, 111003, 1B-190FB, 1B 190FB, 1B190FB |
Megatech | 1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8 |
Air Spring Installation
1.Before you start installing air springs, make sure you have all
the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are
performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a
qualified suspension specialist, the suspension manufacturer or the
air spring manufacturer; This can save you a lot of time and
aggravation later in the job.
The Drawing of 1B1209

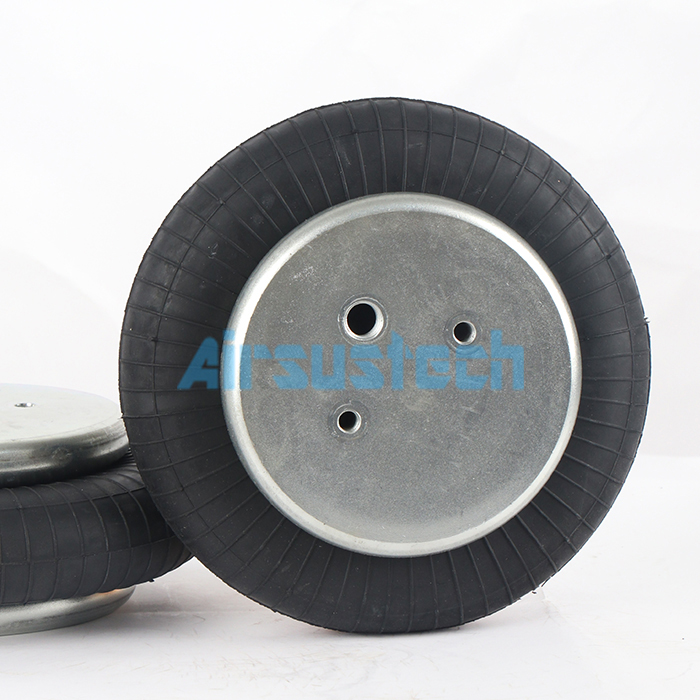

1B1209 Real Pictures
![]() |
