    Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B1209-P
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole

    Air Suspension SP1B07 Phoenix Single Convoluted Air Rubber Bellow G1/4 Gas Hole


    Product Information

    Cover Plate
    Top Cover Plate Diameter: 135 mm
    Screw Center Distance of Top Cover Plate: 53 mm
    Bottom Cover Plate Diameter: 135 mm
    Screw Center Distance of Bottom Cover Plate: 53 mm
    Distance Between Screw and Air Hole: 26 mm
    Gas Hole/Air Inlet/Air Fitting
    Gas Hole: G 1/4
    Nut/Blind Nut
    Top Cover Plate Screw(Nut) Tooth: 2×M8×1.25
    Bottom Cover Plate Screw(Nut) Tooth: 2×M8×1.25
    Rubber Bellow
    Rubber Bellow Max Dia: 215 mm
    Minimum Height: 50 mm
    Maximum Height: 115 mm

    Cross References

    Firestone

    W01-M58-6165, W01 M58 6165, W01M586165

    WO1-M58-6165, WO1 M58 6165, WO1M586165

    W01-M58-6166, W01 M58 6166, W01M586166

    WO1-M58-6166, WO1 M58 6166, WO1M586166

    Contitech

    FS 120-9, FS 120 9, FS120-9, FS1209, FS 1209

    fs 120-9, FS 120 9, fs 120-9, fs 1209, fs 1209

    Dunlop(FR)

    8''x1, 8'x1, 8x1

    S08101, S 08101, S08100, S 08100

    Bosch822419003, 822419008
    FestoEB-215-80, EB 215 80, EB21580, EB215 80
    NorgrenPM/31081, PM 31081, PM21081
    Weforma

    WBE 300-E1, WBE 300-E1, WBE300E1, WBE300-E1

    WBE 300-E2, WBE 300-E2, WBE300E2, WBE300-E2

    Airtech

    140293, 111003, 1B-190FB, 1B 190FB, 1B190FB

    Megatech1S120-9 3/4 M8, 1S120 9 3/4 M8, 1S1209 3/4 M8

    With The Same Air Bellow, We Can Supply Other Models

    Part NumberMIN. H.(mm)MAX. H.(mm)

    Top/Bottom Cover

    Plate Dia(mm)

    Screw TypeAir InletScrew Center Distance(mm)
    1B 6165501151352×M8×1.25G 3/470
    1B 6166501151352×M8×1.25G 1/470
    1B1209-P501151352×M8×1.25G 1/453

    AIRSUSTECH Air Spring Advantages

    1. Affordable
    2. Wide Range
    3. Durability
    4. No Internal Rod, Piston, or Sliding Seals
    5. No Friction
    6. Flexible
    7. Angular Capabilities
    8. Side Loading Capabilities
    9. Compact Starting Height
    10. Factory Tested

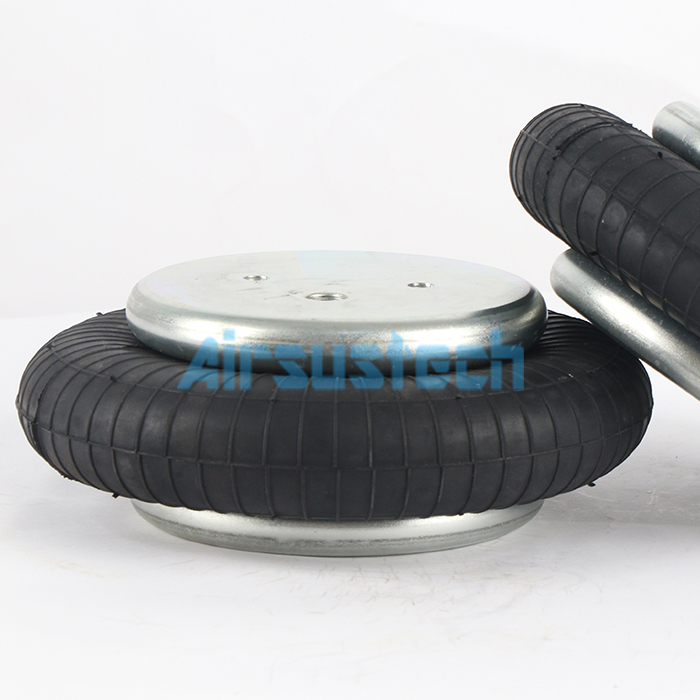

    The Real Pictures
