Brand Name : | AIRSUSTECH |
Model Number : | 1B12×1P |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Product Description
Expertly designed to provide superior performance and versatility for a wide range of applications. At the heart of its robust construction is a crimped assembly that ensures enhanced strength and durability. This is complemented by a convoluted bellow, meticulously crafted from Natural Rubber. This material is renowned for its exceptional dynamic capabilities and excellent universal properties, making our actuator not only powerful but also adaptable to a variety of operating conditions.
Product Specifications
Cover Plate Top Cover Plate Diameter: 260 MM Screw Center Distance of Top Cover Plate: 232 MM Bottom Cover Plate Diameter: 260 MM Screw Center Distance of Bottom Cover Plate: 232 MM |
Gas Hole/Air Inlet/Air Fitting Gas Hole: G 3/4 |
Rubber Bellow Rubber Bellow Natural Diameter: 305 MM Minimum Height: 50 MM |
Other OEM Number Technical Data
Model | M/31061 | M/31062 | M/31081 | M/31082 | M/31101 | M/31102 | M/31103 | M/31121 | M/31122 |
Cylinder [inch] | 6'' | 6'' | 8'' | 8'' | 10'' | 10'' | 10'' | 12'' | 12'' |
Port size | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 | G 1/2 |
Nominal (inch)×convolutions | 6''×1 | 6''×2 | 8''×1 | 8''×2 | 10''×1 | 10''×2 | 10''×3 | 12''×1 | 12''×2 |
Stroke [mm] | 55 | 115 | 75 | 175 | 100 | 225 | 330 | 100 | 225 |
Installation height min [mm] | 50 | 75 | 50 | 75 | 50 | 75 | 100 | 50 | 75 |
Recommed max working height [mm] | 95 | 170 | 115 | 220 | 135 | 245 | 350 | 135 | 245 |
Installation height max [mm] | 105 | 190 | 130 | 250 | 150 | 300 | 430 | 150 | 300 |
Retracting force to rech min height [N] | 140 | 220 | 220 | 350 | 150 | 150 | 250 | 200 | 250 |
Specification
♦Install
Although they serve similar functions, air springs are much less
expensive than air cylinders and other springs. When deflated, air
springs have a small footprint and are easy to handle and connect
to machinery.
♦Maintain
Maintenance procedures for air springs tend to be minimal, air
springs require no lubrication, and there are no seals or guides
that can become misaligned or damaged like other springs. Air
springs should be stored at room temperature in a dry, dark place.
♦Environment
Due to their durability and simplicity, air springs are suitable
for most industrial and commercial applications. Rubber and
neoprene are prone to dry rot, so dehumidified conditions can
shorten the life of an air spring.
♦Medium
Air spring bellows can also accept other types of fluids such as
nitrogen, carbon, water and antifreeze.
Six Reasons to Choose Us
1.Hight stability
2.In situ installation
3.Ride comfort
4.Safe and durable
5.Effective shock absorption
6.Reduce the sound

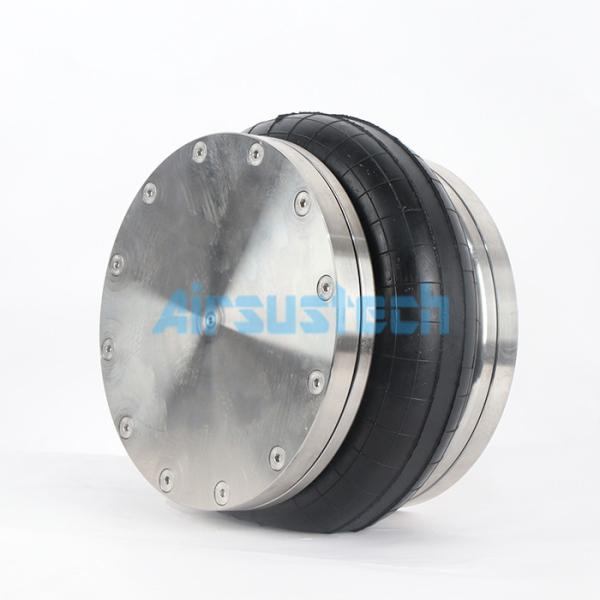

The Real Pictures of 1B12×1P
![]() |
