    Firestone Air Shok Absorber W01-358-7829 Triple Connvoluted Rubber Bellows Air Bags

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3H7829
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone Air Shok Absorber W01-358-7829 Triple Connvoluted Rubber Bellows Air Bags

    Firestone Air Shok Absorber W01-358-7829 Triple Connvoluted Rubber Bellows Air Bags

    Product Description

    Suspension Air Springs are air shocks designed to provide superior quality, durability and load capacity for a range of automotive applications. Made with high-grade rubber and steel, they are engineered to provide superior performance in temperatures ranging from -40℃ to +70℃. With their superior load capacity and durability, these air shocks are ideal for vehicles of all sizes, shapes and types. They are designed to provide superior shock absorption and stability, resulting in a smoother and safer ride. In addition, they are easy to install and require minimal maintenance, making them a great choice for any vehicle.


    3H7829 Specifications


    Top Cover Plate Diameter: 17.75 in.
    Screw Center Distance of Top Cover Plate: 16.50 in.
    Bottom Cover Plate Diameter: 17.75 in.
    Screw Center Distance of Bottom Cover Plate: 16.50 in.
    Top Cover Plate Screw(Nut) Tooth: 24×3/8-24 bolts
    Bottom Cover Plate Screw(Nut) Tooth: 24×3/8-24 bolts
    Rubber Bellow Max. Diameter: 20.5 in.
    Minimum Height: 4.5 in.
    Maximum Height: 18 in.


    The Same Rubber Bellow Style 324 With High Strength Bellows


    Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
    W01-358-7829, W01 358 7829, W013587829, WO1-358-7829, WO1 358 7829, WO13587829
    Rubber bellows only
    W01-358-0324, W01 358 0324, W013580324, WO1-358-0324, WO1 358 03241, WO1350324

    Cross References


    W01-358-7274, W01 358 7274, W013587274, WO1-358-7274, WO1 358 7274, WO13587274
    W01-358-7823, W01 358 7823, W013587823, WO1-358-7823, WO1 358 7823, WO13587823
    W01-358-7921, W01 358 7921, W013587921, WO1-358-7921, WO1 358 7921, WO1358792

    Air Spring Introduction


    An air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air.
    AIRSUSTECH air springs are highly engineered elastomeric bellows with specially designed metal end closures. Our standard
    two ply air spring bellows is actually made up of four layers:


    a. An inner liner of calendered rubber.
    b. One ply of fabric reinforced rubber.
    c. A second ply of fabric-reinforced rubber (with the cords at
    a specific bias angle to the first ply).
    d. An outer cover of calendered rubber.


    Many of our air springs are also available in high strength construction for higher pressures. In this case, there are four plies of fabric-reinforced rubber, with an inner liner and outer cover.

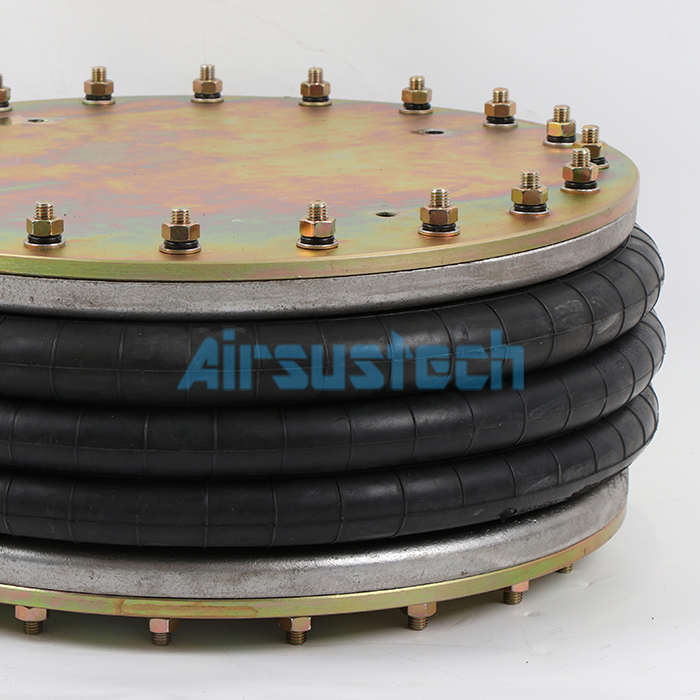

    The Related Pictures of 3H7892





    Quality Firestone Air Shok Absorber W01-358-7829 Triple Connvoluted Rubber Bellows Air Bags for sale
