Air Spring Suspension Replaces Firestone W01-358-7400 1/4 NPT Air
Bags Assembly
Product Description
The actuator also features top and bottom plates that are crimped
and coated with a zinc plating. This addition serves to provide
excellent corrosion resistance, ensuring that the actuator
maintains its high-quality performance over time. With its unique
combination of power, adaptability, and durability, our Convolution
Air Actuator stands as a dependable choice for any industrial
requirement.
Product Information
Cover Plate
Top Cover Plate Diameter: 9.00 in.
Screw Center Distance of Top Cover Plate: 6.20 in.
Bottom Cover Plate Diameter: 9.00 in.
Screw Center Distance of Bottom Cover Plate: 6.20 in |
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts
Bottom Cover Plate Screw(Nut) Tooth: 3/8-16 blind nuts |
Gas Hole/Air Inlet/Air Fitting
Gas Hole: 1/4 NPT |
Rubber Bellow
Rubber Bellow Max Dia: 12.9 in.
Minimum Height: 3.2 in.
Maximum Height: 12 in. |
With The Same Firestone Style 22 Has Other Air Springs
- Blind nuts, 1/4 NPT, bumper
W01-358-7400, W01 358 7400, W013587400, WO1-358-7400, WO1 358 7400,
WO13587400
W01-358-7180, W01 358 7180, W013587180, WO1-358-7180, WO1 358 7180,
WO13587180
W01-358-7184, W01 358 7184, W013587184, WO1-358-7184, WO1 358 7184,
WO13587184
- Countersunk steel bead rings, 15/8 bolts, nuts, washers
W01-358-7431, W01 358 7431, W013587431, WO1-358-7431, WO1 358 7431,
WO13587431
W01-358-0226, W01 358 0226, W013580226, WO1-358-0226, WO1 358 0226,
WO13580226
Applications
The industrial air spring widely used in paper-making machinery,
vehicle detection equipment, mechanical gripper, shaking table ect.
to effectively improve the working efficiency, safety and service
life of the equipment. In these fields, the products plays an
important role of damping, lifting, supporting, and so on. It helps
customers to save manufacturing costs and win more economic
profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and
lubrication.
3. This product allows for flexible expansion and contraction,
strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
Product Core Competitiveness
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid
resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness,
anti-leakage, high density of skin, anti-burst.
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace
the original air spring, no need to change, easy to install.
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant,
long service life.

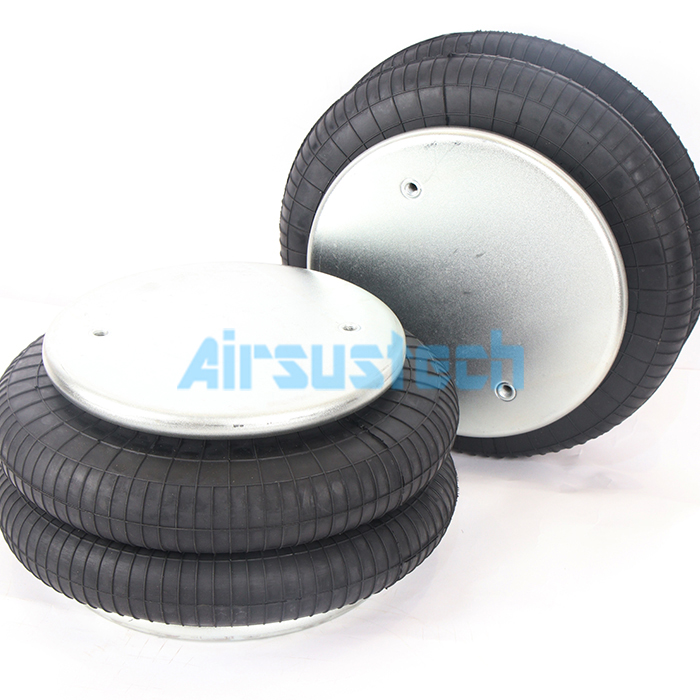

The Real Pictures
