Dina A812719 Air Spring Suspension System MAX. Height 260MM Air
Shock Absorption
Product Description
Air springs are pneumatic devices that convert the energy of
compressed air into pressure. Air cylinders are mechanical devices
that apply force by converting the potential energy of compressed
gas into kinetic energy. Pneumatics is a technology that uses
compressed air to operate different mechanisms. In the industrial
sector, it is used in a variety of processes and applications.
Product Specifications
Cover Plate
Top Cover Plate Diameter: 160 mm
Screw Center Distance of Top Cover Plate: 89 mm
Bottom Cover Plate Diameter: 160 mm
Screw Center Distance of Bottom Cover Plate: 89 mm
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC
Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC
Gas Hole/Air Inlet/Air Fitting
Gas Hole: 1/4 NPT
Operation: Gas-filled
Rubber Bellow
Rubber Bellow Max. Diameter: 251 mm
Minimum Height: 75 mm
Maximum Height: 260 mm
Cross References
Dina
A812719, AZ812719, A 812719, AZ 812719, a 812719, a812719, az
812719, az812719
Firestone
W01-358-6910, W01 358 6910, W013586910, WO1-358-6910, WO1 358 6910,
WO13586910
Contitech
FD 200-19 320, FD 200 19 320, FD20019320, FD 20019 320, FD 200
19320, FD 20019320
Goodyear
2B9-200, 2B 9-200, 2B9-202, 2B 9-202, 2B9-216, 2B 9-216, 578423202
Triangle
6325, 4320
Taurus
KF218-6910, KF 218-6910, kf 218-6910, kf218-6910
Brake & Wheel
M3501, M 3501, m3501,m 3501
Tuthill
1371
Dayton
3546910
Leland
Sc2011, Sc 2011, sc2011, sc 2011
Navistar
554783C1
Hendrickson
S8768, 458433, S 8768
Ridewell
1003586910C
SAF Holland
57006910
Trailers De
133128
Watson & Chalin
AS-0001, AS-0156G
Style 274 Other OEM Number
| Blind nuts, 1/4 NPT | W01-358-6910, W01 358 6910, W013586910 WO1-358-6910, WO1 358 6910, WO13586910 |
| Blind nuts, 1/4 NPT, bumper | W01-358-6911, W01 358 6911, W013586911 WO1-358-6911, WO1 358 6911, WO13586911 |
| Blind nuts, 3/4 NPT | W01-358-6900, W01 358 6900, W013586900 WO1-358-6900, WO1 358 6900, WO13586900 |
| Blind nuts, 3/4 NPT, bumper | W01-358-6901, W01 358 6901, W013586901 WO1-358-6901, WO1 358 6901, WO13586901 |
| Countersunk steel bead rings, 13/4 bolts, nuts, washers | W01-358-6923, W01 358 6923, W013586923 WO1-358-6923, WO1 358 6923, WO13586923 |
| Rubber bellows only | W01-358-0138, W01 358 0138, W013580138 WO1-358-0138, WO1 358 0138, WO13580138 |
About Air Spring Production Knowledge
- Rubber lining is a retractable inner mold with different shapes
formed by the polymer properties of vulcanized rubber and
high-strength fiber cloth. It is a product made of vulcanized
rubber and fibers. It is compressive, elastic and airtight. After
being filled with compressed air, the air bag will expand to meet
the design requirements of its cross-section. Under the premise of
ensuring quality, if it is used improperly, the service life of the
air spring will be greatly shortened.
- Due to its low quality, good comfort and fatigue resistance, the
rubber air spring has the advantages of long service life,
vibration reduction and noise reduction. Widely used in, industrial
machinery, instrumentation and other equipment.
- The production process and production process of the surface fabric
of the air spring machine penetrate into the gap of the fabric, and
the bonding of the process rubber and the fabric of the rubber rope
formed by tight carding. Reduce shrinkage: The elastic deformation
of the rubber should be reduced, so that the surface of the pressed
rubber wire is smooth and the dimensional change is small. The air
spring film required for the production of air springs usually uses
a three-roller air spring machine. Through this process, it
embodies the protection of the air spring in many ways, thus
prolonging its service life.

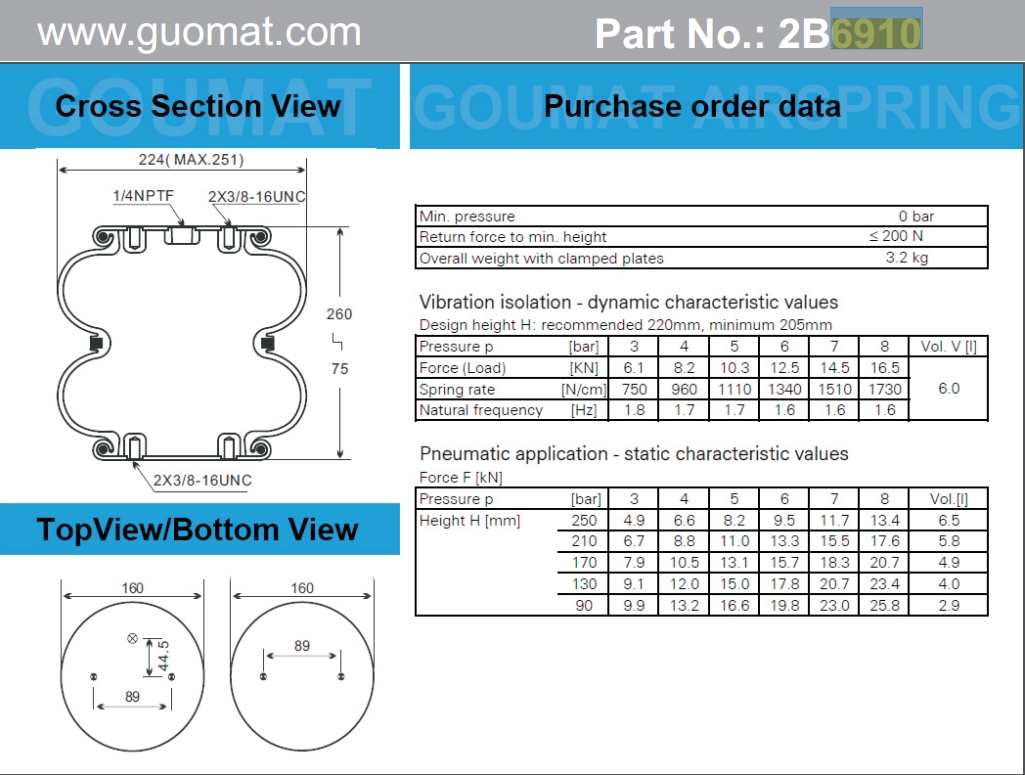

The Technical Data Drawing of 2B6910

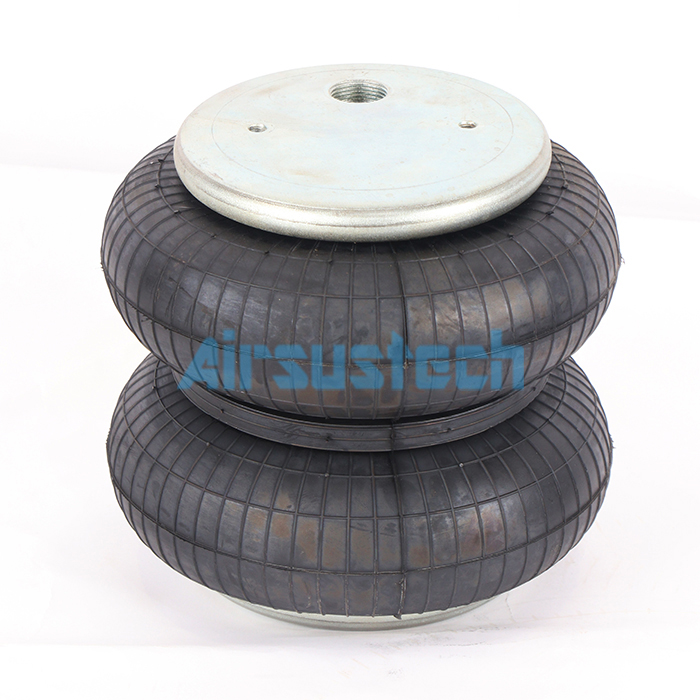

The Real Pictures of 2B6910
