    Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6910
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Navistar 554783C1 Double Convoluted Air Actuators For Pneumatic Applications

    Navistar 554783C1 Double Convoluted Air actuators For Pneumatic Applications

    Product Description

    The AIRSUSTECH Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.


    Product Specifications


    Cover Plate
    Top Cover Plate Diameter: 160 mm
    Screw Center Distance of Top Cover Plate: 89 mm
    Bottom Cover Plate Diameter: 160 mm
    Screw Center Distance of Bottom Cover Plate: 89 mm
    Nut/Blind Nut
    Top Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC
    Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16 UNC

    Gas Hole/Air Inlet/Air Fitting
    Gas Hole: 1/4 NPT

    Operation: Gas-filled

    Rubber Bellow
    Rubber Bellow Max. Diameter: 251 mm
    Minimum Height: 75 mm
    Maximum Height: 260 mm

    Alternative Items


    Firestone

    W01-358-6910, W01 358 6910

    W013586910, WO1-358-6910

    WO1 358 6910, WO13586910

    Dayton3546910
    Contitech

    FD 200-19 320, FD 200 19 320

    FD20019320, FD 20019 320

    FD 200 19320, FD 20019320

    LelandSc2011, Sc 2011
    Goodyear2B9-200, 2B9-202, 2B9-216
    578423202
    Navistar554783C1
    Triangle6325, 4320HendricksonS8768/458433
    TaurusKF218-6910, KF 218-6910Ridewell1003586910C
    Brake & WheelM3501, M 3501SAF Holland57006910
    DinaA812719, AZ812719Trailers De133128
    Tuthill1371Watson & ChalinAS-0001, AS-0156G

    Style 274 Other OEM Number


    Blind nuts, 1/4 NPT

    W01-358-6910, W01 358 6910, W013586910

    WO1-358-6910, WO1 358 6910, WO13586910

    Blind nuts, 1/4 NPT, bumper
    W01-358-6911, W01 358 6911, W013586911
    WO1-358-6911, WO1 358 6911, WO13586911
    Blind nuts, 3/4 NPT

    W01-358-6900, W01 358 6900, W013586900

    WO1-358-6900, WO1 358 6900, WO13586900

    Blind nuts, 3/4 NPT, bumper

    W01-358-6901, W01 358 6901, W013586901

    WO1-358-6901, WO1 358 6901, WO13586901

    Countersunk steel bead rings, 13/4 bolts, nuts, washers

    W01-358-6923, W01 358 6923, W013586923

    WO1-358-6923, WO1 358 6923, WO13586923

    Rubber bellows only

    W01-358-0138, W01 358 0138, W013580138

    WO1-358-0138, WO1 358 0138, WO13580138


    Advantages
    1. Long service life
    2. Maintenance-free
    3. Highly operational safety
    4. Frictionless
    5. Lateral misalignment possible
    6. Chemical resistance

    FAQ


    Q: What is the model number of the Suspension Air Springs?
    A: The model number of the Suspension Air Springs is 2B6910.
    Q: What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
    Q: What will you do for customer's complaint?
    A: We will respond quickly to our customers within 24 hours.
    Q: What are the packaging details for the Suspension Air Springs?
    A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
    Q:Can you print my logo on inner box and outer box?
    A: Yes. We can do it, but it has MOQ.

    The Technical Data Drawing of 2B6910

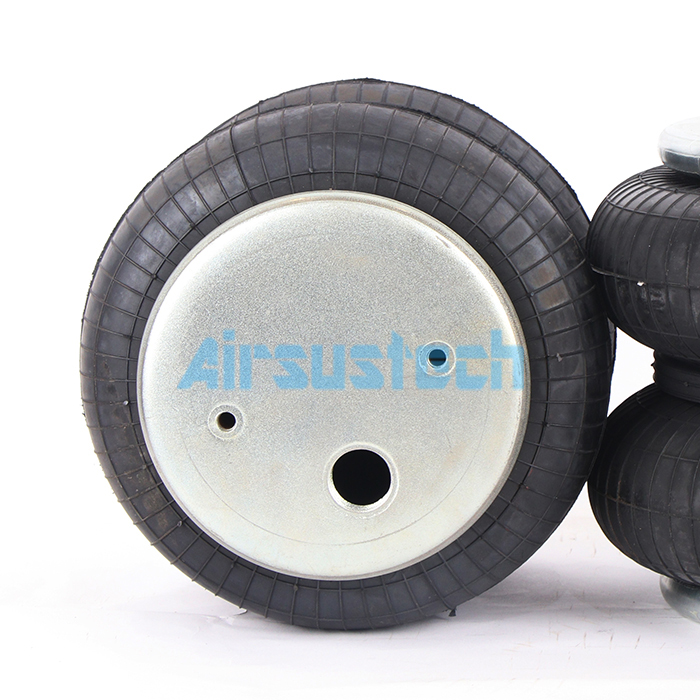

    The Real Pictures of 2B6910
