Firestone W01-R58-4055 Bellows Style Industrial Air Spring Double
Convoluted Air Bag
2B 8×2T Specifications
Cover Plate Top Cover Plate Diameter: 184 mm Screw Center Distance of Top Cover Plate: 156 mm Bottom Cover Plate Diameter: 184 mm Screw Center Distance of Bottom Cover Plate: 156 mm |
Nut/Blind Nut Top Cover Plate Screw(Nut) Tooth: 4×M10×1.5 Bottom Cover Plate Screw(Nut) Tooth: 4×M10×1.5 |
Gas Hole/Air Inlet/Air Fitting Gas Hole: 1/2 BSP |
Rubber Bellow Rubber Bellow MAX. Diameter: 215 mm Minimum Height: 72 mm |
2B8×2T Technical Data
Force @ 3 Bar At Height 150mm: 5.9 kN
Force @ 4 Bar At Height 150mm: 8 kN
Force @ 5 Bar At Height 150mm: 10.1 kN
Force @ 6 Bar At Height 150mm: 12.4 kN
Force @ 7 Bar At Height 150mm: 14.7 kN
Force @ 8 Bar At Height 150mm: 16.9 kN
Force @ 5 Bar At Height 100mm: 13.7 kN
Force @ 5 Bar At Height 150mm: 10.1 kN
Force @ 5 Bar At Height 200mm: 6.68 kN
Force @ 5 Bar At Height 220mm: 5.16 kN
Cross References
| Firestone | W01-R58-4055, W01 R58 4055, W01R584055 WO1-R58-4055, WO1 R58 4055, WO1R584055 |
| Contitech | FD 138-18 DS, FD 138 18 DS, FD13818DS, FD 138-18DS FD 13818DS, FD 138 18DS, FD138-18 DS, FD138 18 DS |
| Dunlop Springride | SP1490, SP 1490 |
| Dunlop Pneuride | 8''×2, 8'×2, 8×2 |
| Norgren | M/31082, M31082, M 31082 |
| Parker | 9109011 |
FRUEHAUF | F48054, F 48054, M80A04, M 80A04 |
LOHR | A06030604, A 06030604 |
SAMRO | H2500021, H2500188 |
SISU TRUCK | 1531110600 |
Product Core Competitiveness
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid
resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness,
anti-leakage, high density of skin, anti-burst.
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace
the original air spring, no need to change, easy to install.
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant,
long service life.
The Reason Why Choose Us?
- Variety of products and high quality. We have hundreds of models to
meet your needs. And our products have passed ISO/TS 16949:2009
certification, reaching international standards, with high quality.
- Respond promptly. We generally reply within one day.
- Good after-sale service. Customer satisfaction is our greatest
pursuit. Once the product has any damage or quality problem, please advise us and we
will replace it.

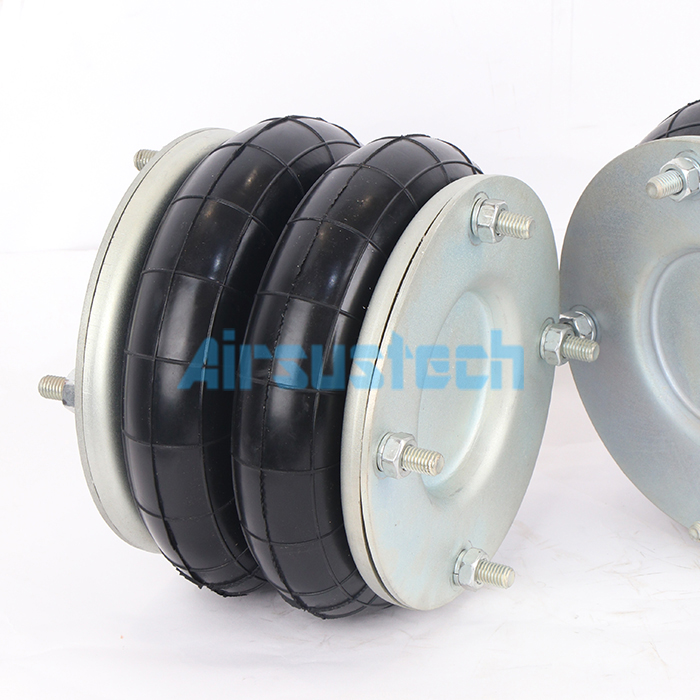

The Real Photos of 2B8×2T
