Brand Name : | AIRSUSTECH |
Model Number : | 1B8×1T |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
1B8×1T Specifications
Air Inlet | G 1/2 | Minimum Height | 50 mm |
Screw Type | 4×M10 | Maximum Height | 130 mm |
Distance Air Hole Betweeen Screw | 78 mm | Static Height | 90 mm |
Screw Center Distance | 156 mm | Sroke Height | 80 mm |
Screw Bolts Height | 25 mm | Installation Diameter | 245 mm |
Top Cover Plate Diameter | 184 mm | Bellow MAX. Diameter | 230 mm |
Bottom Cover Plate Diameter | 184 mm | Operation | Gas-filled |
1B8×1T Technical Data
Force [kN]
Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[I] |
Height H [mm] | 120 | 3.6 | 4.9 | 6.4 | 7.8 | 9.4 | 10.9 | 2.0 |
100 | 5.3 | 7.2 | 9.1 | 11.1 | 13.2 | 15.3 | 1.8 | |
80 | 7.1 | 9.5 | 12.0 | 14.6 | 17.3 | 19.9 | 1.4 | |
60 | 8.7 | 11.6 | 14.6 | 17.6 | 20.7 | 23.7 | 0.8 |
Cross References
Dunlop Springride | SP1537, SP 1537 |
Firestone | W01-R58-4054, W01 R58 4054, W01R584054 WO1-R58-4054, WO1 R58 4054, WO1R584054 |
Contitech | FS 138-8 DS, FS 138 8 DS, FS1388DS, FS 138-8DS FS 1388DS, FS 138 8DS, FS138-8 DS, FS138 8 DS |
Dunlop Pneuride | 8''×1 |
Norgren | M/31081, M31081, M 31081 |
Parker | 9109014 |
Single Convoluted Bellows
OEM NO. | MIN. H. [mm] | MAX. H. [mm] | Installation Space Required [mm] | MAX. Stroke [mm] | Distance D [mm] | Standard Air Inlet |
FS 40-6 CI | 50 | 145 | 160 | 60 | 20 | G 1/8 |
FS 50-5 CI | 51 | 150 | 165 | 44 | 44.5 | G 1/4 |
FS 70-7 CI | 51 | 165 | 180 | 64 | 44.5 | G 1/4 |
FS 100-10 CI | 51 | 210 | 225 | 94 | 44.5 | G 1/4 |
FS 120-9 CI | 50 | 215 | 230 | 85 | 70 | G 3/4 |
FS 120-10 CI | 51 | 231 | 245 | 99 | 70 | G 3/4 |
FS 120-12 CI | 51 | 235 | 250 | 119 | 70 | G 3/4 |
FS 200-10 CI | 51 | 250 | 265 | 89 | 89 | G 3/4 |
FS 330-11 CI | 51 | 325 | 340 | 99 | 157.5 | G 3/4 |
FS 330-14 CI | 51 | 343 | 360 | 129 | 157.5 | G3/4 |
FS 530-11 CI | 51 | 385 | 400 | 124 | 158.8 | G 3/4 |
FS 530-14 CI | 51 | 405 | 420 | 134 | 158.8 | G 3/4 |
FS 960-12 CI | 63 | 450 | 480 | 117 | 114.3 | G 3/4 |
FS 1330-11 CI | 63 | 530 | 570 | 107 | 152.5 | G 3/4 |
FAQ
Q1: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it
will take around 3-7 days for our customers to receive them, but
charge all customer will cost related to the samples, such as
sample cost and airmail freight.
Q2: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world
Q3: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity,
rheology, water inspection, bursting, fatigue, etc.

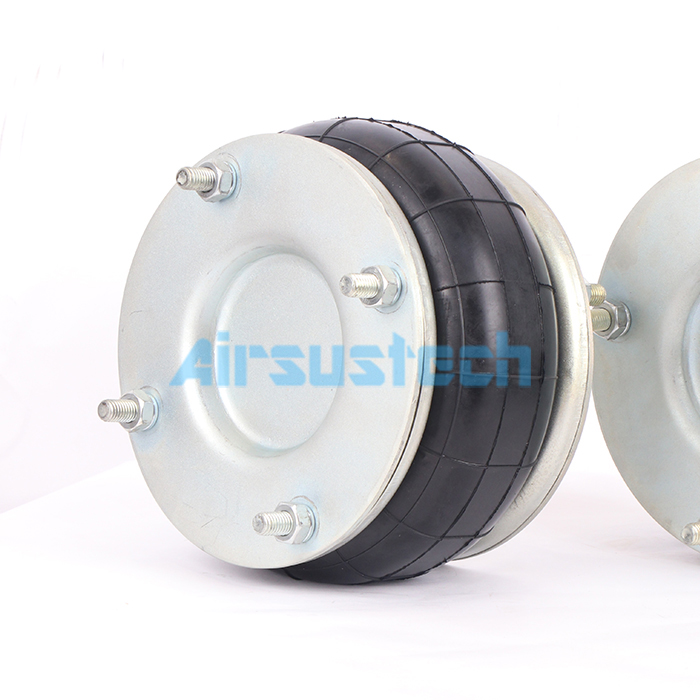

The Real Pictures of 1B8×1T
![]() |
