Brand Name : | AIRSUSTECH |
Model Number : | 1B8×1T |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
AIRSUSTECH actuators have long been used in the industrial market as pneumatic actuators integrated into new and innovative machine designs and as replacement actuators for traditional pneumatic or hydraulic cylinders. Their advantages over traditional cylinders are that they are durable, operate well in corrosive and abrasive environments, are easily tolerant of misalignment, and have a high ratio of stroke to collapsed height.
1B8×1T Specifications
Air Inlet | 1/2 BSP | Minimum Height | 47 mm |
Screw Type | 4×M10 | Maximum Height | 120 mm |
Distance Air Hole Betweeen Screw | 78 mm | Static Height | 90 mm |
Screw Center Distance | 156 mm | Sroke Height | 73 mm |
Screw Bolts Height | 25 mm | Installation Diameter | 240 mm |
Top Cover Plate Diameter | 184 mm | Bellow MAX. Diameter | 230 mm |
Bottom Cover Plate Diameter | 184 mm | Operation | Gas-filled |
Cross References
Firestone
W01-R58-4054, W01 R58 4054, W01R584054, WO1-R58-4054, WO1 R58 4054, WO1R584054
Contitech
FS 138-8 DS, FS 138 8 DS, FS1388DS, FS 138-8DS, FS 1388DS, FS 138 8DS, FS138-8 DS, FS138 8 DS
Dunlop Pneuride
8''×1
Dunlop Springride
SP1537, SP 1537
Norgren
M/31081
Parker
9109014
FAQ
Q: Can I use my own logo and design on products? |
Q: Is the sample available? A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. |
Q: What is your main products?/ What products can I buy from you? A: Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. |
Q: When will make delivery ? A: Delivery time is 3-8woring days. |

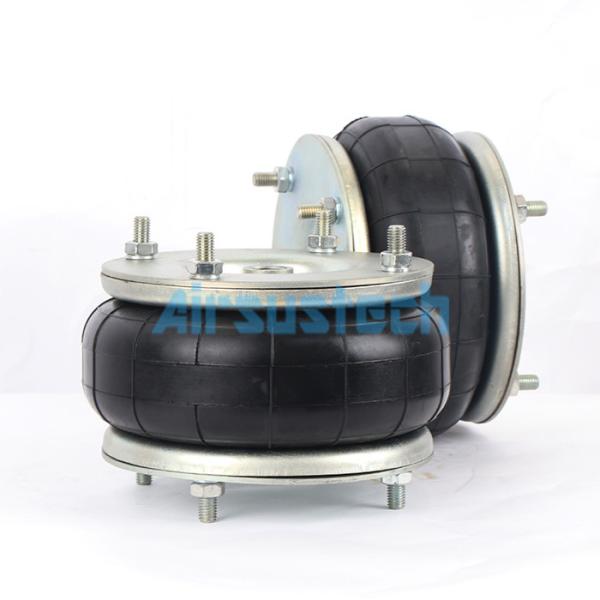

The Real Pictures of 1B8×1T
![]() |
