    Norgren Air Rubber Bellow PM/31121 MAX. H. 180MM Air Shock Absorber Single Convoluted

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B12×1P
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Norgren Air Rubber Bellow PM/31121 MAX. H. 180MM Air Shock Absorber Single Convoluted

    Norgren Air Rubber Bellow PM/31121 MAX. H. 180MM Air Shock Absorber Single Convoluted


    Product Description

    The production process and production process of the surface fabric of the air spring machine penetrate into the gap of the fabric, and the bonding of the process rubber and the fabric of the rubber rope formed by tight carding. Reduce shrinkage: The elastic deformation of the rubber should be reduced, so that the surface of the pressed rubber wire is smooth and the dimensional change is small. The air spring film required for the production of air springs usually uses a three-roller air spring machine. Through this process, it embodies the protection of the air spring in many ways, thus prolonging its service life.


    Product Specifications

    ModelPM/31121
    Cylinder [inch]12''
    Air PortG 3/4
    Nominal [inch] ×convolutions12''×1
    Stroke [mm]129
    Installation Height Min [mm]51
    Recommeded Max Working Height [mm]151
    Installation Height Max [mm]180
    Retracting Force To Reach Min Height [N]300

    Cylinder 12'' Inch Air Spring, We Can Supply

    ModelAir InletNominal [inch] ×convolutionsStroke [mm]Installation Height Min [mm]Recommeded Max Working Height [mm]Installation Height Max [mm]Retracting Force To Reach Min Height [N]
    PM/31121G 3/412''×112951151180300
    PM/31122G 3/412''×223075265305300
    PM/31123G 3/412''×3320110395430400

    Other OEM Number Technical Data

    ModelM/31061M/31062M/31081M/31082M/31101M/31102M/31103M/31121M/31122
    Cylinder [inch]6''6''8''8''10''10''10''12''12''
    Port sizeG 1/2G 1/2G 1/2G 1/2G 1/2G 1/2G 1/2G 1/2G 1/2
    Nominal (inch)×convolutions6''×16''×28''×18''×210''×110''×210''×312''×112''×2
    Stroke [mm]5511575175100225330100225
    Installation height min [mm]5075507550751005075
    Recommed max working height [mm]95170115220135245350135245
    Installation height max [mm]105190130250150300430150300
    Retracting force to rech min height [N]140220220350150150250200250

    Advantages

    • 100% Brand New
    • Durable and long service life.
    • Direct replacement for your old or broken one, easy installation.
    • Built to meet standard specification, strictly follow factory quality control.
    • Due to the light and screen difference, the item's color may be slightly different from the pictures.

    Supports And Services

    1. Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
    2. We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
    3. Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

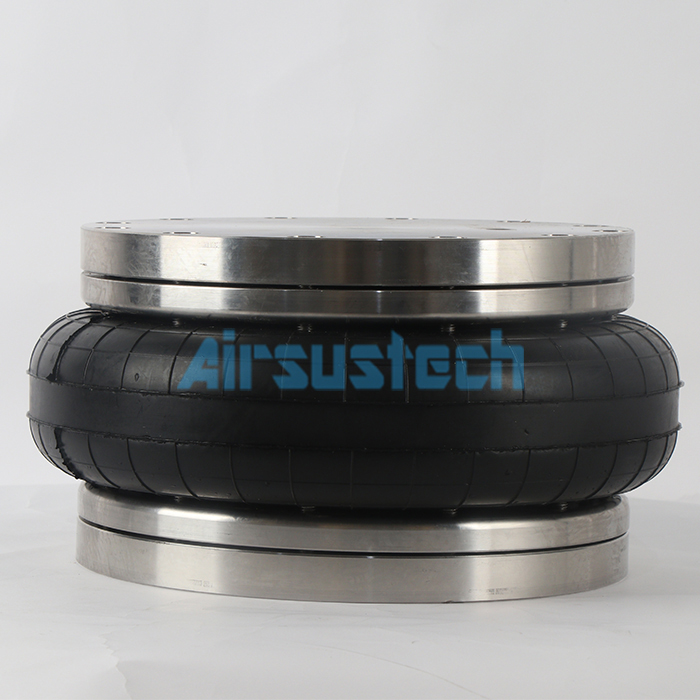

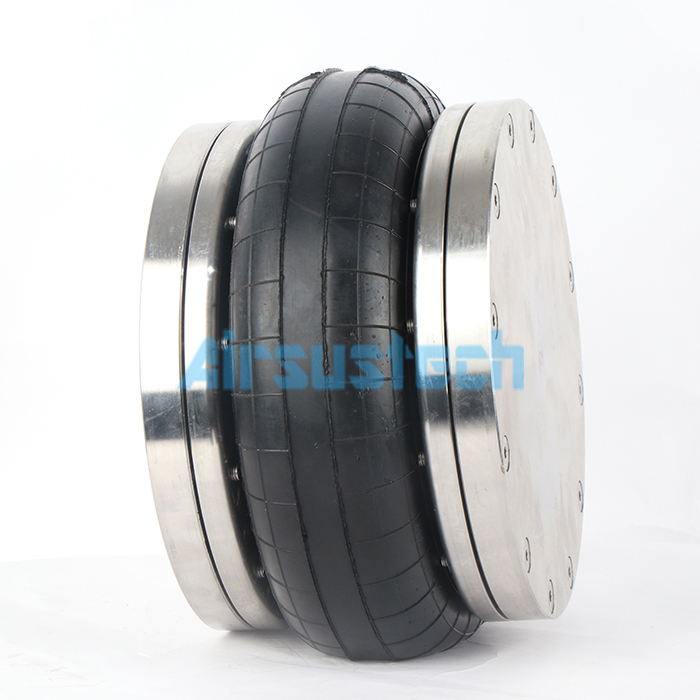

    The Real Pictures of 1B12×1P
