Firestone W01-R58-4052 Industrial Air Suspension Maximum Height
105MM Air Bags
1B6×1T Specifications
Air Hole
Gas Fitting: G 1/2
Operation: Gas-filled
Screw Bolts
Nuts Type: 4 pcs×M10
Distance Air Hole Betweeen Screw: 63.5 mm
Screw Center Distance: 127 mm
Screw Height: 25 mm
Cover Plate
Top Cover Plate Diameter: 153.5 mm
Bottom Cover Plate Diameter: 153.5 mm
Height
Minimum Height: 50 mm
Maximum Height: 105 mm
Recommed Height: 85 mm
Rubber Bellows
Installation Diameter: 190 mm
Bellow MAX. Diameter: 175 mm
Pressure Ability: 3-8 bar
Mini Pressure: 0 bar
1B6×1T Technical Parameters
| Pressure | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Height H [mm] | 90 | 2.66 | 3.63 | 4.62 | 5.62 | 6.67 | 7.75 | 0.91 |
| 80 | 3.43 | 4.63 | 5.83 | 7.05 | 8.32 | 9.63 | 0.8 |
| 70 | 4.17 | 5.57 | 6.99 | 8.42 | 9.89 | 11.4 | 0.67 |
| 60 | 4.94 | 6.54 | 8.19 | 9.83 | 11.5 | 13.2 | 0.51 |
Cross References
| DUNLOP PNEURIDE | 6" x 1 |
| Contitech | FS 76-7 DS, FS 76 7 DS, FS767DS, FS76-7 DS FS767 DS, FS 76 7FDS, FS76-7DS,FS 7-67DS |
| Firestone | W01-R58-4052, W01R584052, W01 R58 4052 WO1-R58-4052, WO1R584052, WO1 R58 4052 |
| DUNLOP SPRINGRIDE | SP1536, SP 1536 |
| NORGREN | M/31061 |
| PARKER | 9109004 |
Applications
- One of the most common applications for AIRSUSTECH air spring kits
is heavy-duty trucks and commercial vehicles. These vehicles often
carry heavy loads and require a suspension system that can handle
the weight. AIRSUSTECH air springs provide additional support to
the existing suspension system, making it easier to carry heavy
loads without damaging the vehicle.
- Another popular application for AIRSUSTECH air springs is off-road
vehicles. These vehicles are often used on rough terrain and
require a suspension system that can handle the bumps and impacts
of off-road driving. AIRSUSTECH air springs provide additional
support and cushioning to the suspension system, making it easier
to travel over rough terrain.
- AIRSUSTECH air springs are also a popular choice for recreational
vehicles, such as RVs and campers. These vehicles often carry a lot
of heavy loads, including water tanks, propane tanks, and other
equipment. AIRSUSTECH air springs provide additional support to the
suspension system, making it easier to carry heavy loads without
damaging the vehicle.
FAQ
Q1: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world
Q2:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q3: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our
customers benefit;
2. We respect every customer as our friend and we sincerely do
business and make friends with them no matter where they come from.

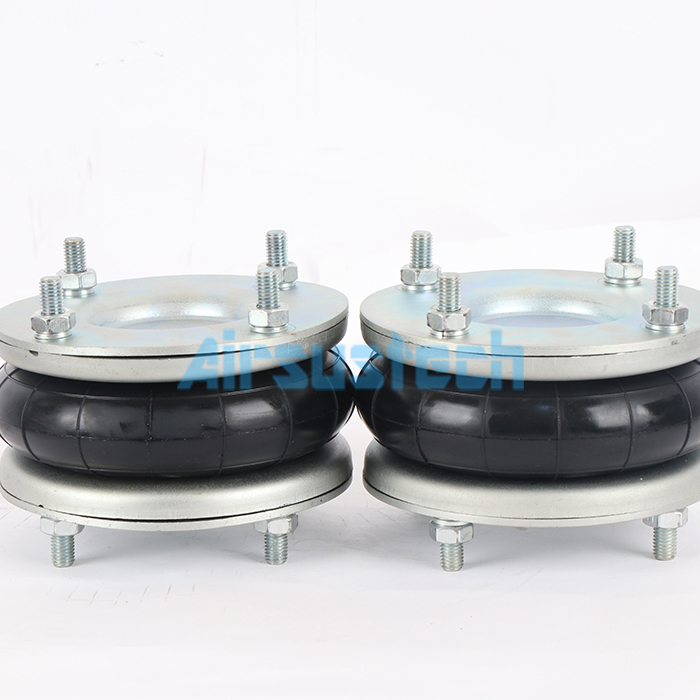

The Real Pictures of 1B6×1T:
