    Arvin Meritor 200320 Triple Convoluted Rubber Bellow Air Spring Goodyear 3B12-304

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B12-304
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Arvin Meritor 200320 Triple Convoluted Rubber Bellow Air Spring Goodyear 3B12-304

    Arvin Meritor 200320 Triple Convoluted Rubber Bellow Air Spring Goodyear 3B12-304


    Production Specifications

    Minimum Height117 mm
    Maximum Height460 mm
    Stroke Height343 mm
    Bellow Maximum OD.330 mm
    Top Cover Plate Diameter231 mm
    Bottom Cover Plate Diameter231 mm
    Screw Center Distance157.5 mm



    Cross References

    Firestone

    W01-358-8006, W01 358 8006, W013588006
    WO1-358-8006, WO1 358 8006, WO13588006

    Contitech

    FT 330-29 430, FT 330 29 430, FT 33029430
    FT330-29 430, FT330-29430, FT33029430

    Goodyear

    3B12-304, 3B 12 304, 3B12304, 3B12 304
    3B 12304, 578933100

    Triangle6634, 4430
    LelandSc2132
    Arvin Meritor200320



    Applications


    1. Application of rubber air springs in lifting equipment

    Traditional lifting equipment uses cylinders or hydraulic cylinders to lift objects, which require large installation space, are difficult to manufacture, heavy, prone to leakage, and inconvenient to repair. After using rubber air springs as lifting elements of lifting equipment, the traditional shortcomings of lifting equipment are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.


    2. Application of rubber air springs in vibration reduction equipment

    The advantages of high-frequency vibration isolation, sound insulation and low self-vibration frequency of rubber air springs can better achieve vibration isolation and ensure the safety and stability of the base and control system of the vibration equipment. Therefore, rubber air springs are widely used in equipment such as vibration isolation of vibrating screens and vibration reduction of luxury vehicle seats.


    3. Other uses of rubber air springs

    Using rubber air springs as vibration reduction bases can effectively protect precision equipment from damage during transportation, such as the transportation of missiles and control launch devices. Using rubber air springs as support tools, taking advantage of their light weight and easy operation, it is convenient for the maintenance of field vehicles and equipment, etc.



    AIRSUSTECH Air Bags Product Services


    • Professional installation available through authorized dealers
    • Warranty included with product purchase
    • Online resources available for product information and troubleshooting
    • Customer service available for any questions or concerns

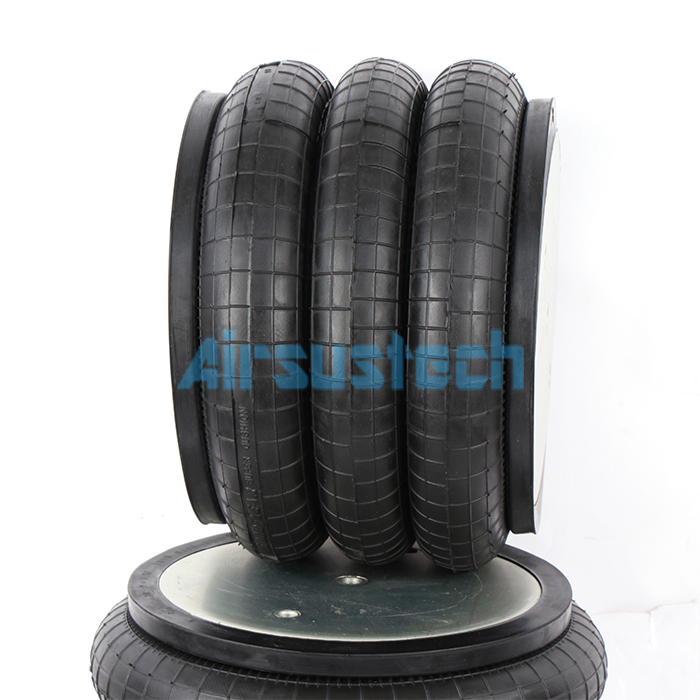

    The Real Pictures of 3B12-304:
