    Leland Sc2011 Air Spring Suspension Contitech FD 200-19 Rubber Bellow Air Bag

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6910
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Leland Sc2011 Air Spring Suspension Contitech FD 200-19 Rubber Bellow Air Bag

    Leland Sc2011 Air Spring Suspension Contitech FD 200-19 Rubber Bellow Air Bag

    Product Information

    Top Plate Hole/Stud Qty: 3
    Top Plate Dia: 160 mm
    Distance Between Threaded Holes: 89 mm
    Distance Between Threaded Hole and Air Hole: 44.5 mm
    Bottom Plate Hole Stud Qyt: 2
    Bottom Plate Dia: 160 mm
    Natural Outer Diameter: 224mm
    Max.Outer Diameter: 251mm
    Air Hole:1/4NPTF
    Threaded Hole: 3/8-16UNC
    Min Height: 75 mm
    Max Height: 260 mm


    Alternative Items


    Firestone

    W01-358-6910, W01 358 6910

    W013586910, WO1-358-6910

    WO1 358 6910, WO13586910

    Dayton3546910
    Contitech

    FD 200-19 320, FD 200 19 320

    FD20019320, FD 20019 320

    FD 200 19320, FD 20019320

    LelandSc2011
    Goodyear2B9-200/202/216
    578423202
    Navistar554783C1
    Triangle6325/4320HendricksonS8768/458433
    TaurusKF218-6910Ridewell1003586910C
    Brake & WheelM3501SAF Holland57006910
    DinaA812719/AZ812719Trailers De133128
    Tuthill1371Watson & ChalinAS-0001/AS-0156G

    Style 274, We Can Supply


    Blind nuts, 1/4 NPT

    W01-358-6910, W01 358 6910, W013586910

    WO1-358-6910, WO1 358 6910, WO13586910

    Blind nuts, 1/4 NPT, bumper

    W01-358-6911, W01 358 6911, W013586911

    WO1-358-6911, WO1 358 6911, WO13586911

    Blind nuts, 3/4 NPT

    W01-358-6900, W01 358 6900, W013586900

    WO1-358-6900, WO1 358 6900, WO13586900

    Blind nuts, 3/4 NPT, bumper

    W01-358-6901, W01 358 6901, W013586901

    WO1-358-6901, WO1 358 6901, WO13586901

    Countersunk steel bead rings, 13/4 bolts, nuts, washers

    W01-358-6923, W01 358 6923, W013586923

    WO1-358-6923, WO1 358 6923, WO13586923

    Rubber bellows only

    W01-358-0138, W01 358 0138, W013580138

    WO1-358-0138, WO1 358 0138, WO13580138


    Style 202, We Can Provide


    Blind nuts, 1/4 NPTW01-358-7080, W01 358 7080, W013587080

    WO1-358-7080, WO1 358 7080, WO13587080

    Blind nuts, 3/4 NPTW01-358-7119, W01 358 7119, W013587119

    WO1-358-7119, WO1 358 7119, WO13587119


    The Technical Data Sheet Drawing of 2B6910

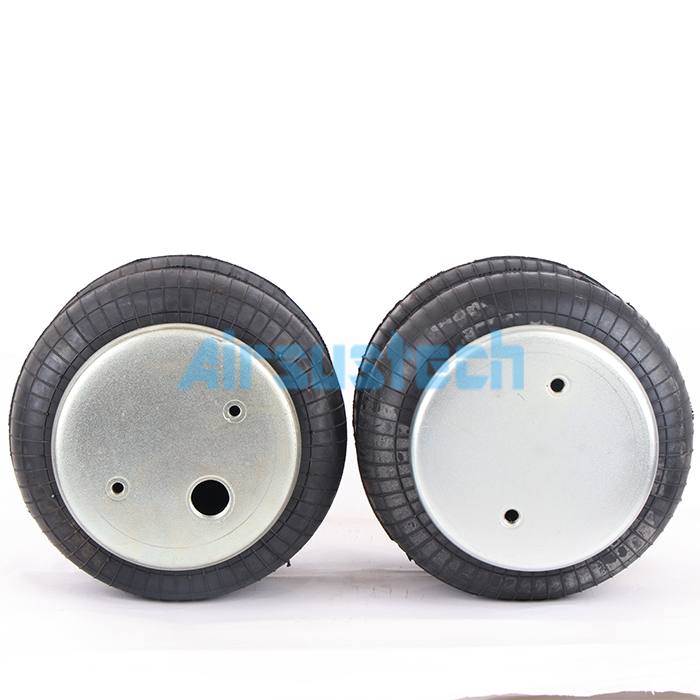

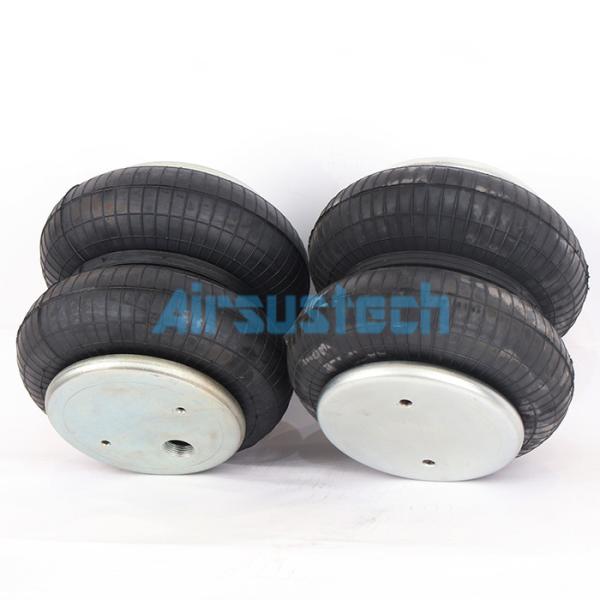

    The Real Pictures of 2B6910
