    Dayton 3546910 Suspension Air Spring Firestone W01-358-6910 Air Bags MAX. H. 260MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6910
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Dayton 3546910 Suspension Air Spring Firestone W01-358-6910 Air Bags MAX. H. 260MM

    Dayton 3546910 Suspension Air Spring Firestone W01-358-6910 Air Bags MAX. H. 260MM

    Product Features

    Top Plate Hole/Stud Qty: 3
    Top Plate Dia: 160
    Distance Between Threaded Holes: 89
    Distance Between Threaded Hole and Air Hole:44.5
    Bottom Plate Hole Stud Qyt: 2
    Bottom Plate Dia: 160
    Natural Outer Diameter: 224mm
    Max.Outer Diameter: 251mm
    Air Hole:1/4NPTF
    Threaded Hole: 3/8-16UNC
    Min Height: 75
    Max Height: 260

    Alternative Items


    Firestone

    W01-358-6910, W01 358 6910

    W013586910, WO1-358-6910

    WO1 358 6910, WO13586910

    Dayton3546910
    Contitech

    FD 200-19 320, FD 200 19 320

    FD20019320, FD 20019 320

    FD 200 19320, FD 20019320

    LelandSc2011
    Goodyear2B9-200/202/216
    578423202
    Navistar554783C1
    Triangle6325/4320HendricksonS8768/458433
    TaurusKF218-6910Ridewell1003586910C
    Brake & WheelM3501SAF Holland57006910
    DinaA812719/AZ812719Trailers De133128
    Tuthill1371Watson & ChalinAS-0001/AS-0156G

    Style 274, We Can Supply


    Blind nuts, 1/4 NPT

    W01-358-6910, W01 358 6910, W013586910, WO1-358-6910, WO1 358 6910, WO13586910
    Blind nuts, 1/4 NPT, bumper
    W01-358-6911, W01 358 6911, W013586911, WO1-358-6911, WO1 358 6911, WO13586911
    Blind nuts, 3/4 NPT
    W01-358-6900, W01 358 6900, W013586900, WO1-358-6900, WO1 358 6900, WO13586900
    Blind nuts, 3/4 NPT, bumper
    W01-358-6901, W01 358 6901, W013586901, WO1-358-6901, WO1 358 6901, WO13586901
    Countersunk steel bead rings, 13/4 bolts, nuts, washers
    W01-358-6923, W01 358 6923, W013586923, WO1-358-6923, WO1 358 6923, WO13586923
    Rubber bellows only
    W01-358-0138, W01 358 0138, W013580138, WO1-358-0138, WO1 358 0138, WO13580138

    Product Description


    • Goodyear air springs 2B9-200, 2B9-216, 2B9-210, 2B9-206, 2B9-201, 2B9-245, 2B9-244, 2B9-240, 2B9-230 and 2B9-225 all have the same bellows number - 578-92-3-202. Although their top plate and bottom plate connections are different, the data sheets of these air springs are quite similar when loading up machines or cars.
    • The five air springs, 2B9-201, 2B9-206, 2B9-230, 2B9-244 and 2B9-245, all come equipped with a bumper inside them that is used to limit the minimum stroke of the air spring.
    • Goodyear air spring 2B9-240, however, is of the flange rings kind and does not come with a cover plate. The other air springs have a crimped cover plate fitted, which makes them easier to install with machinery.

    The Drawing of 2B6910

    Dayton 3546910 Suspension Air Spring Firestone W01-358-6910 Air Bags MAX. H. 260MM

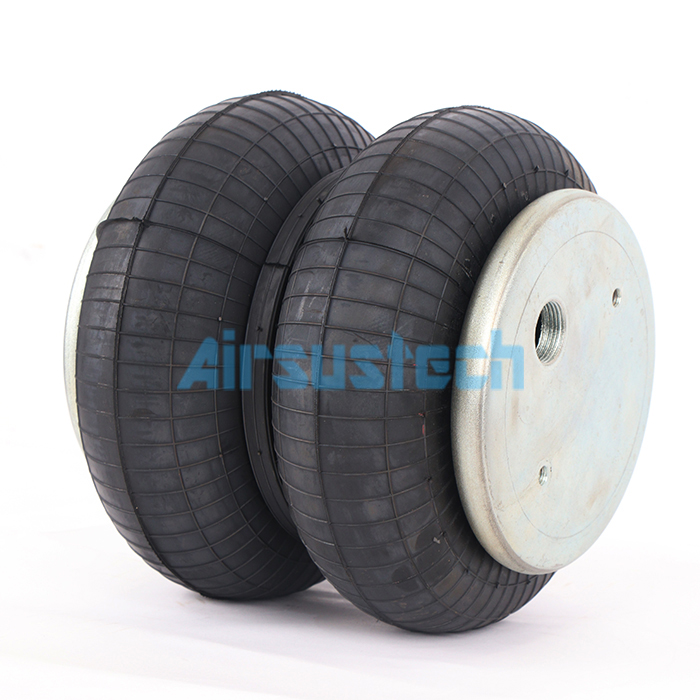

    The Real Pictures of 2B6910
