    Brake & Wheel M3501 Air Spring Suspension Replace Goodyear 2B9-202 Air Bag H. 260MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6910
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Brake & Wheel M3501 Air Spring Suspension Replace Goodyear 2B9-202 Air Bag H. 260MM

    Brake & Wheel M3501 Air Spring Suspension Replace Goodyear 2B9-202 Air Bag H. 260MM

    Product Description:

    The AIRSUSTECH Air Springs are available in single, double and triple convolution types for virtually every conceivable heavy-duty vehicle suspension application. In addition, 2B6910 air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air.


    Specifications and Detailed Technical Parameters


    2B6910 Specifications

    Air Hole
    1/4 NPTF
    Number of Ply BellowsDouble
    Minimum Usable Height75 MM
    Max Expanded Height260 MM
    Stroke Height224 MM
    Threaded Hole
    2X3/8-16UNC
    Top/Bottom Cover Plate Diameter185 MM
    Hole/Stud QtyTwo On One Plate
    Screw Center Distance89 MM
    Distance Gas Hole Between Nut44.5 MM
    Bellow Max. Diameter251 MM
    Bellow Natural Diameter224 MM
    Top/Bottom Plate Width160 MM

    The Technical Dats Sheet Drawing of 2B6910:



    Cross References:


    Firestone

    W01-358-6910, W01 358 6910

    W013586910, WO1-358-6910

    WO1 358 6910, WO13586910

    Dayton

    3546910

    Contitech

    FD 200-19 320, FD 200 19 320

    FD20019320, FD 20019 320

    FD 200 19320, FD 20019320

    Leland

    Sc2011

    Goodyear

    2B9-200/202/216
    578423202

    Navistar554783C1
    Triangle6325/4320HendricksonS8768/458433
    TaurusKF218-6910Ridewell1003586910C
    Brake & WheelM3501SAF Holland57006910
    DinaA812719/AZ812719Trailers De133128
    Tuthill1371Watson & ChalinAS-0001/AS-0156G

    We Have Other Models of The Same Rubber Bellows Number:


    Guomat NO.Air InletThe MAX. Bellows OD.MIN. H.MAX. H.Nuts Type

    Top/Bottom Cover

    Plate Diameter

    Screw Center DistanceDistance Gas Hole Betweeen Screw
    2B6910P011/4 NPTF251 mm75 mm260 mm2×3/8-16UNC160 mm89 mm44.5 mm
    2B6910-3/4G3/4251 mm75 mm260 mm2×M8×1.25160 mm89 mm38 mm
    2B69101/4 NPTF251 mm75 mm260 mm2×3/8-16UNC160 mm89 mm44.5 mm
    2B6910P021/4 BSP251 mm75 mm260 mm2×M8×1.25160 mm89 mm44.5 mm
    2B6910P031/4 NPTF232.5 mm#240 mm2×3/8-16UNC160 mm89 mm44 mm
    FAQ:
    Q1: Is the sample available?
    A: Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.
    Q2:What is your warranty term?
    A: There is a 12months warranty for our export products has run out from the date of the shipment.
    Q3: What is your advantage?
    A: (1) High quality - Natural rubber.
    (2) Fast delivery - Stock sales.
    (3) Best service - 24 hours online.

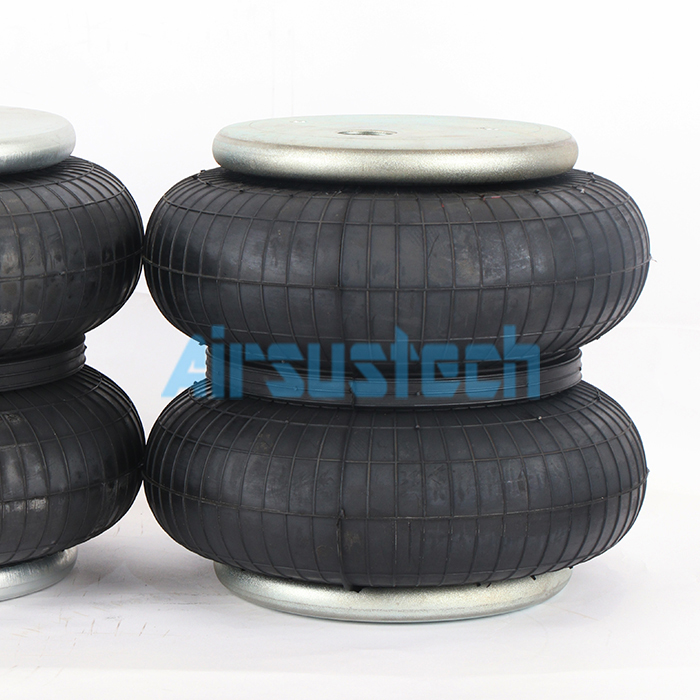

    The Related Pictures of 2B6910:



    Quality Brake & Wheel M3501 Air Spring Suspension Replace Goodyear 2B9-202 Air Bag H. 260MM for sale
