Vibracoustic VSP2B22R7180 Air Spring Assembly Cross Goodyear
2B12-311 Air Bags
2B6330 Specifications
Air Hole/Air Fitting
Gas Hole: 1/4 NPTF
Operation: Gas-filled
Height
Maximum Height: 305 mm
Miinmum Height: 81 mm
Stroke Height: 224 mm
Rubber Bellows
Bellow Max. Diameter: 325 mm
Structure: Double convoluted
Bumper: No
Cover Plate
Bottom Cover Plate Diameter: 231 mm
Top Cover Plate Diameter: 231 mm
Nuts/Screw
Screw Center Distance: 157 ｍｍ
Distance Gas Hole Between Nut: 71 mm
Technical Parameters
| Dynamic Characteristics at 9.5 in. Design Height |
| Volume @ 100 PSIG=782 in3 | Natural Frequency |
Gage Pressure (PSIG) | Load
(Ibs.) | Spring
Rate (Ibs./in.) | CPM | HZ |
| 40 | 2,050 | 729 | 112 | 1.86 |
| 60 | 3,170 | 1,036 | 107 | 1.79 |
| 80 | 4,280 | 1,373 | 106 | 1.77 |
| 100 | 5,400 | 1,668 | 104 | 1.74 |
Cross References:
| Firestone | W01-358-7180, W013587180, W01 358 7180 WO1-358-7180, WO13587180, WO1 358 7180 W01-358-7122, W013587122, W01 358 7122 WO1-358-7122, WO13587122, WO1 358 7122 |
| Contitech | FD 330-22 363, FD 330 22 363, FD33022363 FD 33022 363, FD 33022363, FD330-22 363 FD330 22 363, FD33022 363, FD33022363 FD 33022 363, FD330-22363, FD 330-22363 |
| Goodyear | 2B12-425/311, 2B12 425/311, 2B12425/311 |
| Triangle | 6316/4363 |
| Airkraft | 115061/3B-356 |
| Vibracoustic | VSP2B22R7180 |
| EI Ride | 8030190 |
| Leland | Sc2075 |
| Navistar | 1685179C1 |
| Hendrickson | 1VA1816 |
| Ridewell | 1003587180C |
| SAF Holland | 57007180 |
| Watson & Chalinl | AS0154 1G/01881F, AS01541G/01881F |
| Peerless | 0550 00001 |
Style 22, We Can Supply Other Models
Blind nuts, 1/4 NPT | W01-358-7180, W013587180, W01 358 7180 WO1-358-7180, WO13587180, WO1 358 7180 W01-358-7122, W013587122, W01 358 7122 WO1-358-7122, WO13587122, WO1 358 7122 |
Blind nuts, 1/4 NPT, bumper | W01-358-7400, W01 358 7400, W01 358 7400 WO1-358-7400, WO1 358
7400, WO13587400 |
Blind nuts, 3/4 NPT | W01-358-7184, W01 358 7184, W013587184 WO1-358-7184, WO1 358 7184, WO13587184 |
Blind nuts, 3/4 NPT, bumper | W01-358-7185, W01 358 7185, W013587185 WO1-358-7185, WO1 358 7185, WO13587185 |
Countersunk steel bead rings, 15/8 bolts, nuts, washers | W01-358-7431, W01 358 7431, W013587431 WO1-358-7431, WO1 358 7431, WO13587431 |
Rubber bellows only | W01-358-0226, W01 358 0226, W013580226 WO1-358-0226, WO1 358 0226, WO13580226 |
FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q2:Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.
Q3: What is your warranty term?
A: There is a 12months warranty for our export products has run out
from the date of the shipment.
Q4: Is the sample available?
A: Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS.

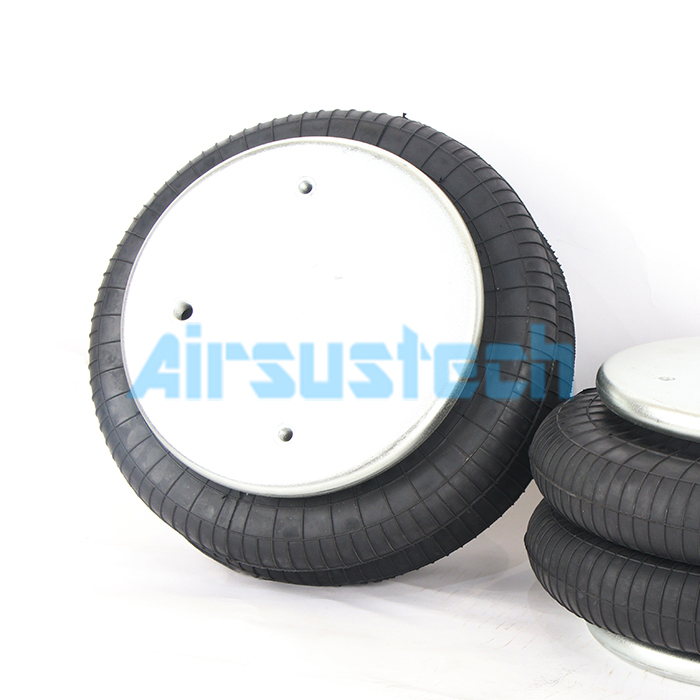

The Related Pictures of 2B6330:
