    Contitech FS 330-11 474 Air Bag Cross Triangle 6374 Air Pneumatic Spring 90557226

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B5330
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Contitech FS 330-11 474 Air Bag Cross Triangle 6374 Air Pneumatic Spring 90557226

    Contitech FS 330-11 474 Air Bag Cross Triangle 6374 Air Pneumatic Spring 90557226

    1B5330 Specification

    • Air hole/gas fitting/ gas hole

    Air inlet: 1/4 NPTF


    • Nuts/screws

    Screw center distance: 157.5 mm

    Distance gas hole between nut: 73 mm

    Plate hole/stud qty: two on one plate

    Threaded hole type: 2×3/8-16 UNC


    • Height

    Maximum height: 160 mm

    Minimum height: 55 mm

    Stroke height: 105 mm


    • Rubber bellows

    The max diameter: 325 mm

    Material: rubber and stainless


    Cross References


    Firestone

    W01-358-7008, W01 358 7008 W013587008

    WO1-358-7008, WO13587008, WO1 358 7008

    Contitech

    FS 330-11 474, FS330-11 474, FS330-11474

    FS 330 11 474, FS330 11 474, FS33011 474

    FS330-11 474, FS330 11474, FS33011474

    Goodyear1B12-300/313, 1B12 300/313, 1B12300/313
    Triangle6374/4474
    Holland(Neway)90557226

    For the same Style 19, we can supply


    Blind nuts, 1/4 NPT

    W01-358-7008, W01 358 7008, W013587008

    WO1-358-7008, WO1 358 7008, WO13587008

    Blind nuts, 1/4 NPT, bumper

    W01-358-7009, W01 358 7009, W013587009

    WO1-358-7009, WO1 358 7009, WO13587009

    Blind nuts, 3/4 NPT

    W01-358-7011, W01 358 7011, W013587011

    WO1-358-7011, WO13587011, WO13587011

    Blind nuts, 3/4 NPT, bumper

    W01-358-7012, W01 358 7012, W013587012

    WO1-358-7012, WO1 358 7012, WO13587012

    Countersunk steel bead rings, 15/8 bolts, nuts, washers

    W01-358-7023, W01 358 7023, W013587023

    WO1-358-7023, WO1 358 7023, WO13587023

    Rubber bellows only

    W01-358-0134, W01 358 0134, W013580134

    WO1-358-0134, WO1 358 0134, WO13580134


    A Complete Production Capablity and Special Testing Facilities
    1. German import WP GK-200A model of mixing machine and rubber mixing line.
    2. Italy technology and independent design improved cord breaking and bead wire product on workshop.
    3. Air spring forming workshop.
    4. Air spring gvulcanizing workshop.
    5. Pieces of metal processing workshop.
    6. Air spring crimping workshop.
    A fist-class production technology and scientific production workshop is to ensure that my company first-class product them in conditions.

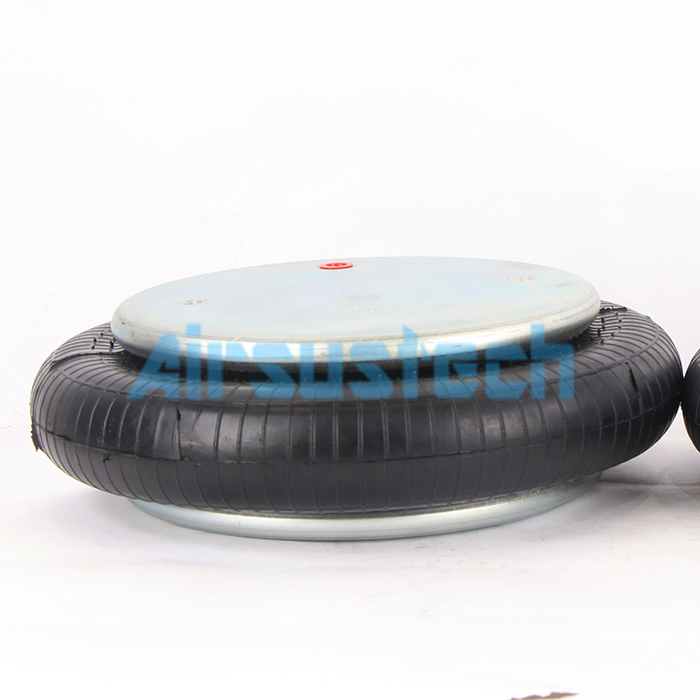

    The Related Pictures of 1B5330:


    Quality Contitech FS 330-11 474 Air Bag Cross Triangle 6374 Air Pneumatic Spring 90557226 for sale
