Brand Name : | AIRSUSTECH |
Model Number : | 1B5330 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
Air Inlet | 1/4NPTF |
Top/Bottom Cover Plate Width | 231 mm/9 in. |
Screw Center Distance | 157.5 mm/6.2 in. |
Distance Gas Hole Between Nut | 73 mm/3.1 in. |
Plate Hole/Stud Qty | Two On Top Plate |
Threaded Hole Type | 2×3/8-16 UNC |
MAX. Height | 160 mm/6 in. |
MIN. Height | 55 mm/2 in. |
Stroke Height | 105 mm/ 4 in. |
Max. Expansion Width of Rubber | 325 mm/12.9 in. |
Cross References
Firestone | W01-358-7008, W01 358 7008 W013587008 WO1-358-7008, WO13587008, WO1 358 7008 |
Contitech | FS 330-11 474, FS330-11 474, FS330-11474 FS 330 11 474, FS330 11 474, FS33011 474 FS330-11 474, FS330 11474, FS33011474 |
Goodyear | 1B12-300/313, 1B12 300/313, 1B12300/313 |
Triangle | 6374/4474 |
Holland(Neway) | 90557226 |
Bellows Style 19 has the following model air spring
Blind nuts, 1/4 NPT
W01-358-7008, W01 358 7008, W013587008, WO1-358-7008, WO1 358 7008, WO13587008
Blind nuts, 1/4 NPT, bumper
W01-358-7009, W01 358 7009, W013587009, WO1-358-7009, WO1 358 7009, WO13587009
Blind nuts, 3/4 NPT
W01-358-7011, W01 358 7011, W013587011, WO1-358-7011, WO13587011, WO13587011
Blind nuts, 3/4 NPT, bumper
W01-358-7012, W01 358 7012, W013587012, WO1-358-7012, WO1 358 7012, WO13587012
Countersunk steel bead rings, 15/8 bolts, nuts, washers
W01-358-7023, W01 358 7023, W013587023, WO1-358-7023, WO1 358 7023, WO13587023
Rubber bellows only
W01-358-0134, W01 358 0134, W013580134, WO1-358-0134, WO1 358 0134, WO13580134

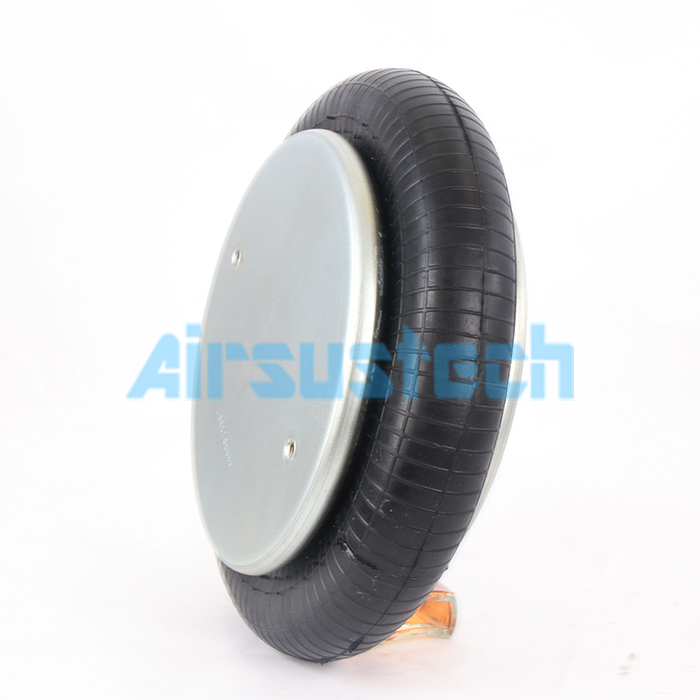

The Related Pictures of 1B5330:
![]() |
