SP 1 B 07 Phoenix Bellows Style Industrial Air Bag G1/4 Gas Hole
Air Spring Assembly
Product Description:
Expertly designed to provide superior performance and versatility
for a wide range of applications. At the heart of its robust
construction is a crimped assembly that ensures enhanced strength
and durability. This is complemented by a convoluted bellow,
meticulously crafted from Natural Rubber. This material is renowned
for its exceptional dynamic capabilities and excellent universal
properties, making our actuator not only powerful but also
adaptable to a variety of operating conditions.
1B1209-P Features:
Air Hole/Air Fitting/Gas Hole
Air Hole: G 1/4
Operation: Gas-filled
Height
Stroke Lenght: 65 mm
Compressed Height: 50 mm
Max Expanded Height: 115 mm
Cover Plate
Upper Cover Plate Diameter: 135 mm
Lower Cover Plate Diameter: 135 mm
Nut/Screw
Nuts Distance: 53 mm
Distance Gas Hole Between Nut: 26 mm
Top/ Bottom Plate Nuts: 2×M8×1.25
Cross References:
Phoenix: SP 1 B 07, SP1 B 07, SP1B 07, SP1B07
These OEM AIRSUSTECH can offer as the same size:
| SP 1 B 04 | SP 2 B 05 R-a | 2B 07 R | 2B07R |
| SP 1 B 05 | SP 2 B 07 R | 2B 12 R | 2B12R |
| SP 1 B 07 | SP 2 B 12 R | 2B 12 R-3 | 2B12R-3 |
| SP 1 B 12 | SP 2 B 12 R-1 | 2B 15 R | 2B15R |
| SP 1 B 22 | SP 2 B 12 R-2 | 2B 20 R | 2B20R |
| SP 1 B 34 | SP 2 B 12 R-3 | 2B 20 R-9 | 2B20R-9 |
| SP1B04 | SP 2 B 22 R | 2B 21 R | 2B21R |
| SP1B05 | SP 2 B 34 R | 2B 21 R-9 | 2B21R-9 |
| SP1B07 | SP 2 B 34 R-b | 2B 22 R | 2B22R |
| SP1B12 | SP2B05R-a | 2B 22 R a-9 | 2B21Ra-9 |
| SP1B22 | SP2B07R | 2B 34 R | 2B34R |
| SP1B34 | SP2B12R | 2B 34 R-b | 2B34R-b |
| SP2B12R-1 | 2B 49 R-a | 2B34R-a |
| SP2B12R-2 | 2B 49 R-b | 2B49R-a |
| SP2B12R-3 | 2B 85 R | 2B49R-b |
| SP2B22R | 2B 85 R-a | 2B85R |
| SP2B34R | | 2B85R-a |
| SP2B34R-b | | |
Applications:
Rubber actuators, compared with traditional products (rigid
actuators, spring...) offer numerous advantages such as
- Flexibility (no angle or alignment problem)
- Compactness
- Power / price ratio
- No maintenance or lubrication required
- Durability
- Reliability
- Resistance to aggressive or hot conditions

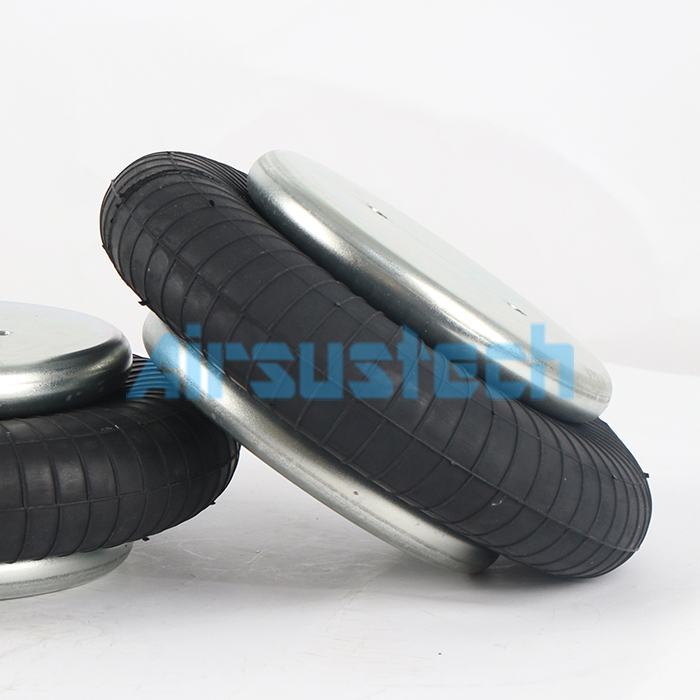

The Related Pictures of 1B1209-P:
