Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension from wholesalers

    Buy cheap Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension from wholesalers
    • Buy cheap Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension from wholesalers
    • Buy cheap Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension from wholesalers
    • Buy cheap Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension from wholesalers
    • Buy cheap Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension from wholesalers

    Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B1209-P
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension

    Industrial Bellows Actuator Phoenix SP1B07 Cover Plate 135MM Air Bags Suspension

    Product Description:

    Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. 1B1209-P air springs have provided a one-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.


    1B1209-P Features:


    Air FittingG 1/4
    Stroke Lenght65 mm
    Bellows TypeSingle Convolution
    Max Expanded Height115 mm
    Compressed Height50 mm
    Upper Cover Plate Diameter135 mm
    Lower Cover Plate Diameter135 mm
    Bolts Distance53 mm
    Distance Gas Hole Between Nut26 mm
    Top/ Bottom Plate Bolts2×M8×1.25
    Technical Paremeters
    Pressure P [bar]345678
    Force (Load) [kN]3.95.36.88.39.610.9
    Spring rate [N/cm]131516201925223025352840
    Natural frequency [Hz]2.92.82.72.62.62.6

    Pressure [P][bar]345678
    Height H [mm]1203.14.35.66.98.09.2
    1103.95.36.88.39.610.9
    1004.56.17.99.711.012.4
    905.06.88.910.812.213.8
    805.57.49.711.613.315.0
    705.97.910.312.314.216.0
    606.38.210.713.015.017.0

    Cross References:
    Phoenix: SP 1 B 07, SP1 B 07, SP1B 07, SP1B07
    These OEM AIRSUSTECH can offer as the same size:
    SP 1 B 04SP 2 B 05 R-a2B 07 R2B07R
    SP 1 B 05SP 2 B 07 R2B 12 R2B12R
    SP 1 B 07SP 2 B 12 R2B 12 R-32B12R-3
    SP 1 B 12SP 2 B 12 R-12B 15 R2B15R
    SP 1 B 22SP 2 B 12 R-22B 20 R2B20R
    SP 1 B 34SP 2 B 12 R-32B 20 R-92B20R-9
    SP1B04SP 2 B 22 R2B 21 R2B21R
    SP1B05SP 2 B 34 R2B 21 R-92B21R-9
    SP1B07SP 2 B 34 R-b2B 22 R2B22R
    SP1B12SP2B05R-a2B 22 R a-92B21Ra-9
    SP1B22SP2B07R2B 34 R2B34R
    SP1B34SP2B12R2B 34 R-b2B34R-b
    SP2B12R-12B 49 R-a2B34R-a
    SP2B12R-22B 49 R-b2B49R-a
    SP2B12R-32B 85 R2B49R-b
    SP2B22R2B 85 R-a2B85R
    SP2B34R2B85R-a
    SP2B34R-b

    Support and Service:
    AIRSUSTECH Air Bags Product Technical Support:
    • Provides additional support for your vehicle's suspension system
    • Helps to reduce vehicle sagging, sway, and bottoming out
    • Easy to install and inflate/deflate as needed
    • Constructed with high-quality materials for durability and longevity
    • Available in a variety of sizes to fit most vehicles

    AIRSUSTECH Air Bags Product Services:
    • Professional installation available through authorized dealers
    • Warranty included with product purchase
    • Online resources available for product information and troubleshooting
    • Customer service available for any questions or concerns

    FAQ:


    Q1: How long does it take to get product after placing the order?
    A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping.
    Q2: What are the packaging details for the Suspension Air Springs?
    A: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements.
    Q3: How to guarantee your after sales service?
    A: (1) Strict inspection during production.
    (2) Recheck the products before shipment to ensure our packaging in good condition.
    (3) Track and receive feedback from our customers.

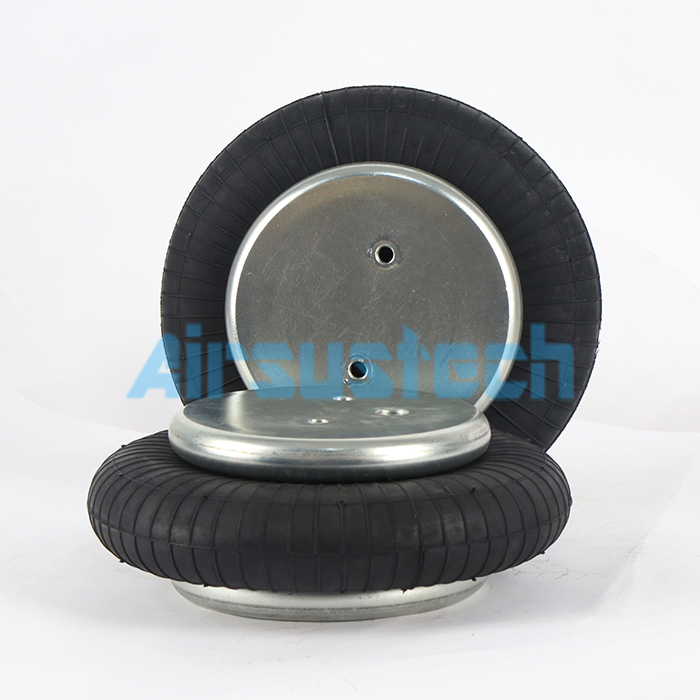

    The Related Pictures of 1B1209-P:
