Brand Name : | AIRSUSTECH Air Springs |
Model Number : | 1B200-10 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
The AIRSUSTECH Industrial Air Springs feature a stroke length of 63mm, providing ample travel and ensuring maximum comfort for your vehicle. With a maximum height of 140mm, these bellows air bags are the perfect addition to your air suspension system, providing the necessary support and stability to keep your vehicle running smoothly.
Air Hole | G 3/4 |
op Plate Hole/Stud Qty | 2×M8×1.25 |
Bottom Plate Hole/Stud Qty | 2×M8×1.25 |
Top Cover Plate Diameter | 160 mm |
Bottom Cover Plate Diameter | 160 mm |
Bellow MAX. Diameter | 220 mm |
Distance Gas Hole Between Nuts | 38 mm |
Nuts Center Distance | 89 mm |
Design Height | 110 mm |
Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] | |
Height H [mm] | 120 | 5.36 | 7.24 | 9.18 | 11.2 | 13.2 | 15.3 | 3.1 |
110 | 6.09 | 8.21 | 10.4 | 12.6 | 14.8 | 17.2 | 2.9 | |
100 | 6.85 | 9.2 | 11.6 | 14 | 16.5 | 19 | 2.6 | |
90 | 7.37 | 9.88 | 12.4 | 15 | 17.7 | 20.3 | 2.4 | |
80 | 7.85 | 10.5 | 13.2 | 15.9 | 18.7 | 21.5 | 2.1 | |
70 | 8.36 | 11.2 | 13.9 | 16.8 | 19.7 | 22.6 | 1.8 | |
60 | 8.68 | 11.5 | 14.5 | 17.4 | 20.3 | 23.3 | 1.5 |
Contitech | FS 200-10, FS 200 10, FS200-10, FS20010 |
Firestone | W01-M58-6374, W01 M58 6374, W01M586374 WO1-M58-6374, WO1 M58 6374, WO1M586374 |
Phoenix | SP 1B 12, SP1B 12, SP 1B12, SP1B12 |
Bosch | 822419004 |
Dunlop(FR) | 9’’1/4x1 S09101 |
Festo | EB-250-85, EB 250 85, EB25085 |
Norgren | PM/31091(81/4x1) |
Properties:
FAQ:
Q: Can you print my logo on inner box and outer box? A: Yes. We can do it, but it has MOQ. |
Q: How do you guarantee quality? A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc. |
Q:Can you produce the product according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |

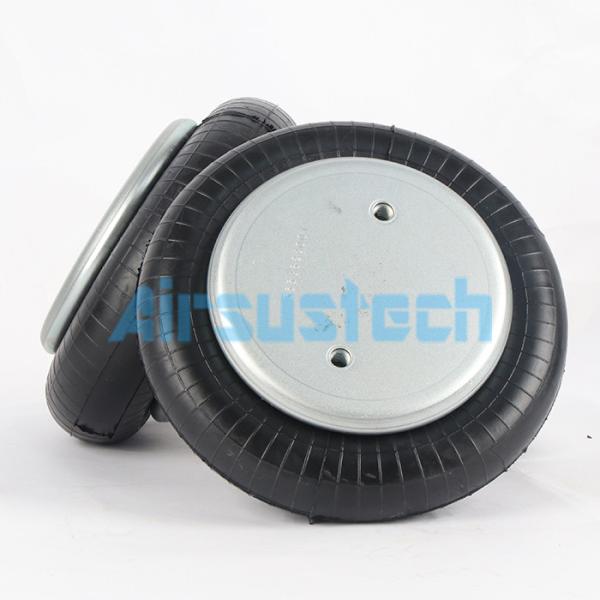

The Real Pictures of 1B200-10 Air Springs
![]() |
