Firestone W01-358-9603 Triple Convoluted Air Actuator Minimum
Height 5.5 Inches
Product Description:
Air spring is a device that uses compressed air to achieve
suspension and shock absorption. It is widely used in automobiles,
trucks, trains, engineering machinery and other fields. Among them,
stamped flange air spring, as an important type, has the advantages
of simple structure, easy use and stable performance.
Specifications and Technical Parameters:
3H9603 Specifications:
| Bellow MAX. Diameter at 100 PSIG | 37.4 Inches |
| Minimum Height | 5.5 Inches |
| Maximum Height | 23 Inches |
| Stroke Height | 17.5 Inches |
| Design Height | 15 Inches |
| Top Cover Plate | 35.04 Inches |
| Bottom Cover Plate | 35.04 Inches |
| Bolts Type | 40(3/8-24) |
| Bolt Center Distance | 32.68 Inches |
| Structure | Triple Convolutions |
| OEM No. | Style 348-3 |
3H9603 Technical Parameters:
Dynamic Characteristics at 15.0 in. Design Height (Required for Airmount isolator design only) |
| Volume @ 100 PSIG=13,501 in3 | Natural Frequency |
Gauge Pressure (PSIG) | Load (Ibs.) | Spring Rate (Ibs./in.) | CPM | HZ |
| 40 | 31,480 | 4,761 | 73 | 1.22 |
| 60 | 47,870 | 6,586 | 70 | 1.16 |
| 80 | 64,870 | 8,614 | 68 | 1.14 |
| 100 | 64,870 | 8,614 | 68 | 1.14 |
| Force Table (Use for Airstroke actuator design) |
Assembly Height (in.) | Volume @ 100 PSIG (in3) | Pounds Force |
@ 20 PSIG | @ 40 PSIG | @ 60 PSIG | @ 80 PSIG | @ 100 PSIG |
| 18.0 | 15,946 | 14,080 | 27,430 | 43,790 | 57,710 | 74,670 |
| 16.0 | 14,340 | 15,190 | 30,370 | 46,420 | 62,810 | 80,190 |
| 14.0 | 12,634 | 16.230 | 32,380 | 49,170 | 66,610 | 84,820 |
| 12.0 | 10,8,984 | 18,290 | 35,370 | 51,470 | 69,410 | 89,150 |
| 10.0 | 8,984 | 18,290 | 35,370 | 53,580 | 71,930 | 93,030 |
| 8.0 | 7,075 | 19,070 | 36,970 | 55,590 | 74,740 | 96,470 |
| 6.0 | 5,102 | 19,760 | 38,620 | 57,550 | 77,790 | 99,680 |
Cross References:
There are several other models of the product with style 348-3:
1. Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers:
W01-358-9603, W01 358 9603 , W01358 9603, WO1-358-9603, WO1 358
9603, WO13589603
2. Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts,
nuts, washers:
W01-M58-6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971,
W01 M58 6971
3. Rubber Bellows only:
W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023,
WO13581023
FAQ:
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity,
rheology, water inspection, bursting, fatigue, etc.
Q: Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in
good condition.
(3) Track and receive feedback from our customers.

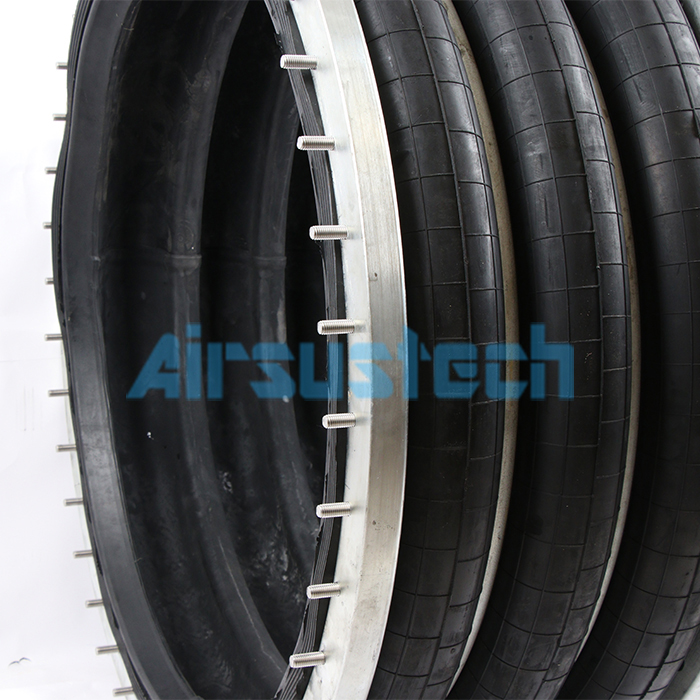

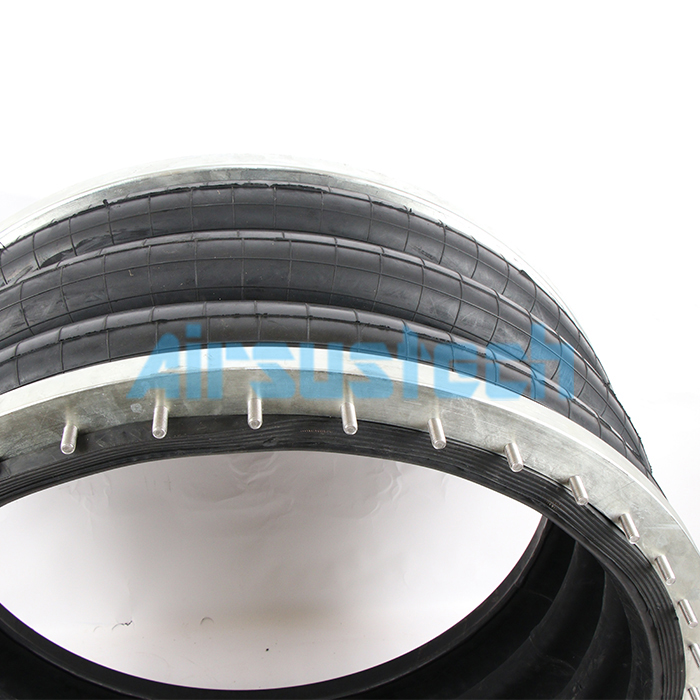

3H9603 Real Pictures:
