Firestone W01-358-1023 Industrial Air Suspension Cross W01-M58-6971
Rubber Air Shock
Product Description:
Air spring is a device that uses compressed air to achieve
suspension and shock absorption. It is widely used in automobiles,
trucks, trains, engineering machinery and other fields. Among them,
stamped flange air spring, as an important type, has the advantages
of simple structure, easy use and stable performance.
Specifications and Technical Parameters:
3H1023 Specifications:
| Bellow MAX. Diameter at 7 Bar | 950 mm |
| Minimum Height | 140 mm |
| Maximum Height | 584 mm |
| Pressure Ability | 0-8 bar |
| Structure | Triple Convolutions |
| OEM No. | Style 348-3 |
3H1023 Technical Parameters:
| Force Table (Use for Airstroke actuator design) |
Assembly Height (mm) | Volume @ 7BAR (cu cm) | EFF Area @ 7 BAR (cm sq) | kN Force |
@ 3 BAR | @ 4 BAR | @ 5 BAR | @ 6 BAR | @ 7 BAR |
| 480 | 270750 | 4561 | 127.37 | 173.02 | 217.83 | 270.35 | 319.21 |
| 440 | 250951 | 4919 | 138.66 | 188.24 | 237.29 | 292.98 | 344.32 |
| 400 | 230507 | 5189 | 146.63 | 199.91 | 252.25 | 310.21 | 363.21 |
| 360 | 208945 | 5418 | 153.57 | 209.53 | 264.45 | 324.50 | 379.23 |
| 320 | 185692 | 5635 | 160.48 | 217.86 | 274.75 | 337.23 | 394.37 |
| 280 | 161999 | 5837 | 166.81 | 225.16 | 283.33 | 348.39 | 408.53 |
| 240 | 138075 | 6014 | 171.63 | 231.86 | 290.68 | 357.85 | 420.92 |
| 200 | 113324 | 6165 | 175.04 | 238.45 | 297.89 | 366.36 | 431.46 |
| 160 | 87906 | 6334 | 180.41 | 245.13 | 306.87 | 377.11 | 443.32 |
Cross References:
There are several other models of the product with style 348-3:
1. Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts,
nuts, washers:
W01-M58-6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971,
W01 M58 6971
2. Rubber Bellows only:
W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023,
WO13581023
3. Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers:
W01-358-9603, W01 358 9603 , W01358 9603, WO1-358-9603, WO1 358
9603, WO13589603
Product Core Competitiveness:
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid
resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness,
anti-leakage, high density of skin, anti-burst
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace
the original air spring, no need to change, easy to install
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant,
long service life

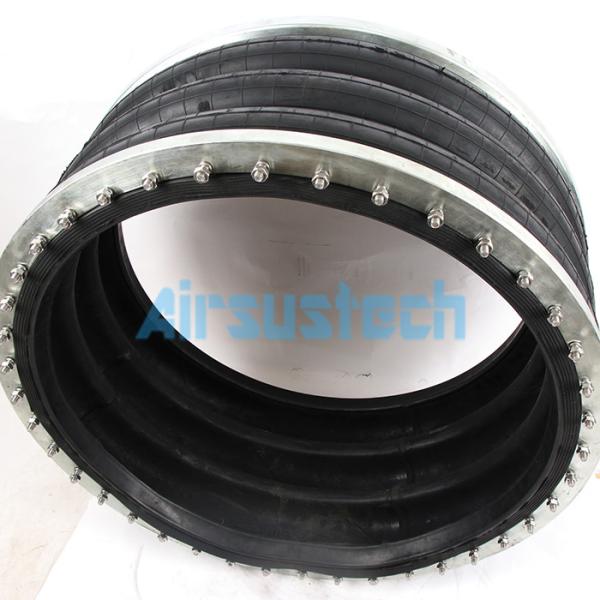

The Real and Comparison Photos of 3H1023:
