Whether you're hauling heavy loads or simply looking for a more comfortable ride, the AIRSUSTECH Industrial Air Springs are the perfect choice. With their durable construction, wide operating temperature range, and impressive stroke length, these air vibration bags are sure to provide the performance and reliability you need.
Specifications and Technical Parameters:
3H6971 Specifications:
Bolts Type | M-10×1.5 |
Number of Bolts | 40 |
Distance Betweeen Bolts | 830 mm |
Top Cover Plate Diameter | 890 mm |
Bottom Cover Plate Diameter | 890 mm |
Bellow MAX. Diameter at 7 Bar | 950 mm |
Minimum Height | 140 mm |
Maximum Height | 584 mm |
3H6971 Technical Parameters:
Force Table (Use for Airstroke actuator design) | |||||||
Assembly Height (mm) | Volume @ 7BAR (cu cm) | EFF Area @ 7 BAR (cm sq) | kN Force | ||||
@ 3 BAR | @ 4 BAR | @ 5 BAR | @ 6 BAR | @ 7 BAR | |||
480 | 270750 | 4561 | 127.37 | 173.02 | 217.83 | 270.35 | 319.21 |
440 | 250951 | 4919 | 138.66 | 188.24 | 237.29 | 292.98 | 344.32 |
400 | 230507 | 5189 | 146.63 | 199.91 | 252.25 | 310.21 | 363.21 |
360 | 208945 | 5418 | 153.57 | 209.53 | 264.45 | 324.50 | 379.23 |
320 | 185692 | 5635 | 160.48 | 217.86 | 274.75 | 337.23 | 394.37 |
280 | 161999 | 5837 | 166.81 | 225.16 | 283.33 | 348.39 | 408.53 |
240 | 138075 | 6014 | 171.63 | 231.86 | 290.68 | 357.85 | 420.92 |
200 | 113324 | 6165 | 175.04 | 238.45 | 297.89 | 366.36 | 431.46 |
160 | 87906 | 6334 | 180.41 | 245.13 | 306.87 | 377.11 | 443.32 |
Cross References:
Firestone W01-M58-6971, W01 M58 6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971
Firestone W01-358-9603, W01 358 9603, W01358 9603, WO1-358-9603, WO1 358 9603, WO13589603
Firestone W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023, WO13581023
Advantages:
Attention Must Be Paid When Installation The Air Spring:
In designs that use air springs, care must be taken to ensure that
no sharp edges are in contact with the springs of the spring
element. This must verify maximum expansion and zero pressure
operation, particularly for leaf and sleeve rolled leaf springs,
which is a reduction in surface pressure drop in the gap between
the meniscus and the piston support. The outer envelope of the air
spring must clear the maximum air spring of 2 inches in diameter to
allow for normal growth and misalignment.

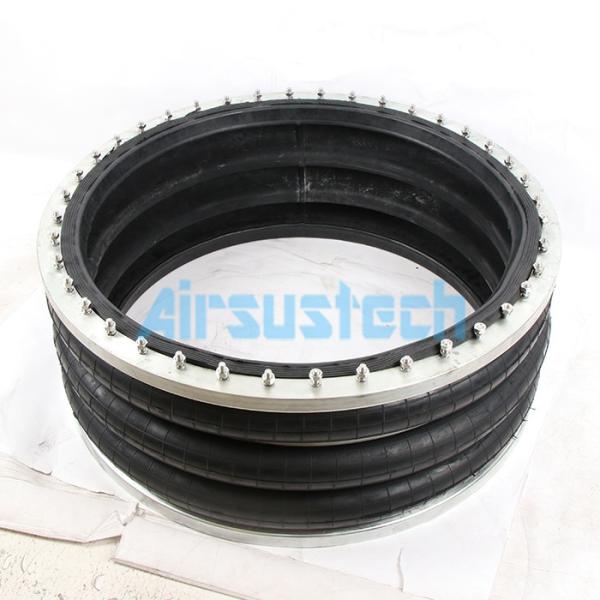

The Real and Comparison Photos of 3H6971:
![]() |
