Firestone W01-358-1023 Air Bags Actuator Cross W01-358-9603 Air
Spring Assembly
Product Description:
Suspension Air Springs are air shocks designed to provide superior
quality, durability and load capacity for a range of automotive
applications. Made with high-grade rubber and steel, they are
engineered to provide superior performance in temperatures ranging
from -40℃ to +70℃. With their superior load capacity and
durability, these air shocks are ideal for vehicles of all sizes,
shapes and types. They are designed to provide superior shock
absorption and stability, resulting in a smoother and safer ride.
In addition, they are easy to install and require minimal
maintenance, making them a great choice for any vehicle.
Specifications and Technical Parameters:
3H1023 Specifications:
| Minimum Height | 5.5 Inches |
| Maximum Height | 23 Inches |
| Stroke Height | 17.5 Inches |
| Design Height | 15 Inches |
| OEM NO. | Style 348-3 |
| Structure | Triple Convolutions |
| Material | Rubber |
3H1023 Technical Parameters:
Dynamic Characteristics at 15.0 in. Design Height (Required for Airmount isolator design only) |
| Volume @ 100 PSIG=13,501 in3 | Natural Frequency |
Gauge Pressure (PSIG) | Load (Ibs.) | Spring Rate (Ibs./in.) | CPM | HZ |
| 40 | 31,480 | 4,761 | 73 | 1.22 |
| 60 | 47,870 | 6,586 | 70 | 1.16 |
| 80 | 64,870 | 8,614 | 68 | 1.14 |
| 100 | 64,870 | 8,614 | 68 | 1.14 |
Style 348-3 air spring also has the OEM number W01-M58-6971, its technical parameters are as follows:
Dynamic Characteristics at 380 mm Design Height (Required for Airmount isolator design only) |
Gauge Pressure (BAR) | Load (kN) | Spring Rate (kN/m) | Natural Frequency HZ |
| 3 | 150.16 | 853 | 1.19 |
| 4 | 204.95 | 1110 | 1.16 |
| 5 | 258.67 | 1358 | 1.14 |
| 6 | 317.66 | 1614 | 1.12 |
| 7 | 371.47 | 1839 | 1.11 |
Cross References:
There are several other models of the product with style 348-3:
1.Rubber bellows only:W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023,
WO13581023
2. Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts,
nuts, washers:W01-358-9603, W01 358 9603 , W01358 9603, WO1-358-9603, WO1 358
9603, WO13589603
3. Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts,
nuts, washers:
W01-M58-6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971,
W01 M58 6971
Shipping and Packing:
Suspension Air Springs are typically packaged and shipped in sealed
bags or boxes, depending on the size and quantity of the order. For
large orders, the air springs may be placed on a pallet and secured
with shrink wrap to prevent movement during transit. The pallet is
then placed on a truck or other method of transport for delivery to
the customer's location.

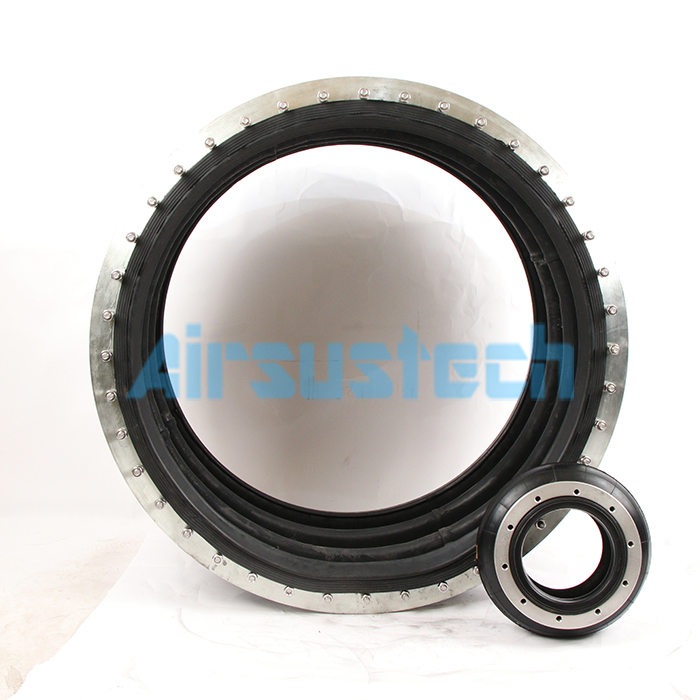

3H1023 Real and Comparison Pictures:
